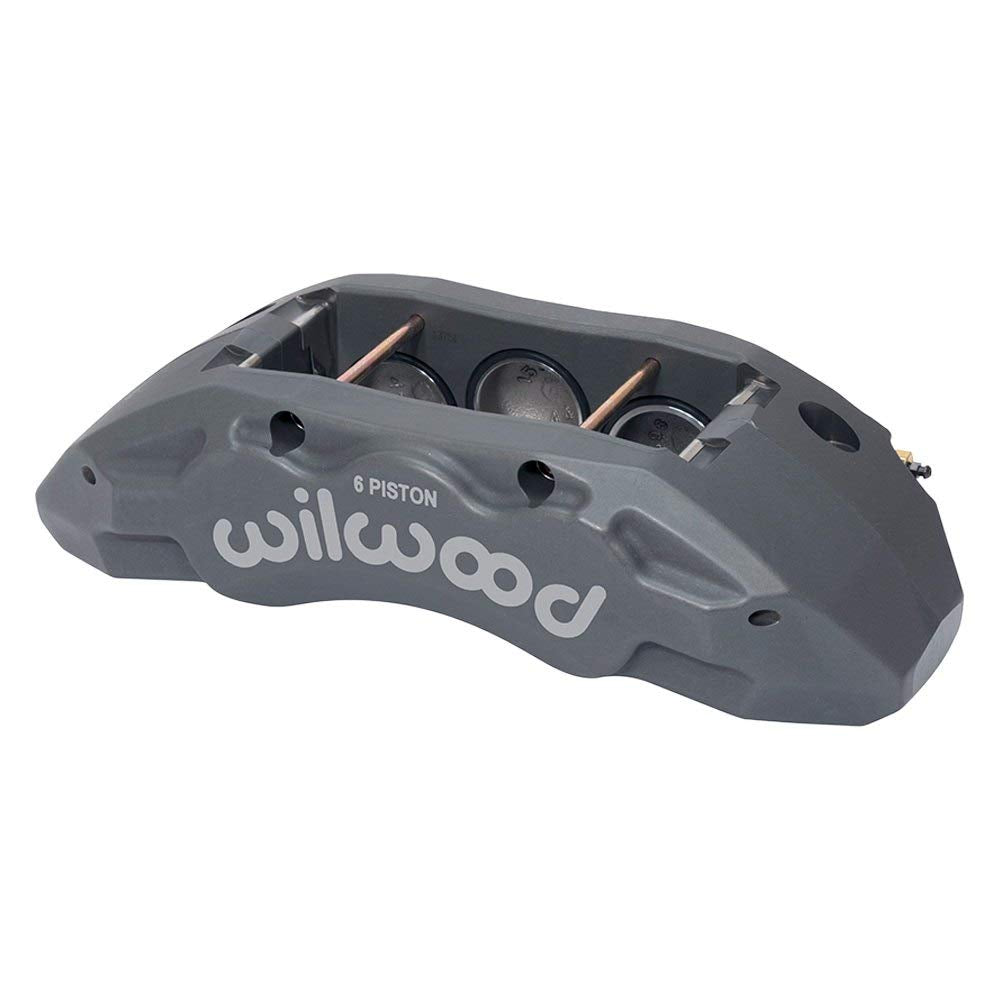

TX6R Forged Radial Mount - Product Summary Product Documents 120-13818 - Product Description TX6R Forged Radial Mount The Tactical Xtreme TX6R radial mount six-piston calipers are purpose built and engineered for severe duty service on heavy duty Trucks, Class 1, 2, and 3 Armored Vehicles, and SUV's up to 14,000 lbs.
GVWR.
The combination of the forged aluminum body, large pad volume, stainless steel pistons, and the ability to accommodate brake rotors up to 1.50” thick, make the TX6R the ultimate choice for tactical level, high strength, and lightweight braking capacity for all types of extreme duty service applications on highway and off-road.
TX6R calipers have a hard anodized finish on base models with options for gloss black or red powder coat.
Tactical Xtreme TX6R calipers features include: a Versatile and easily adapted radial mount design.
A Stress flow forged aluminum 6-piston body design with Stainless steel pistons with high-temp internal bore seals.

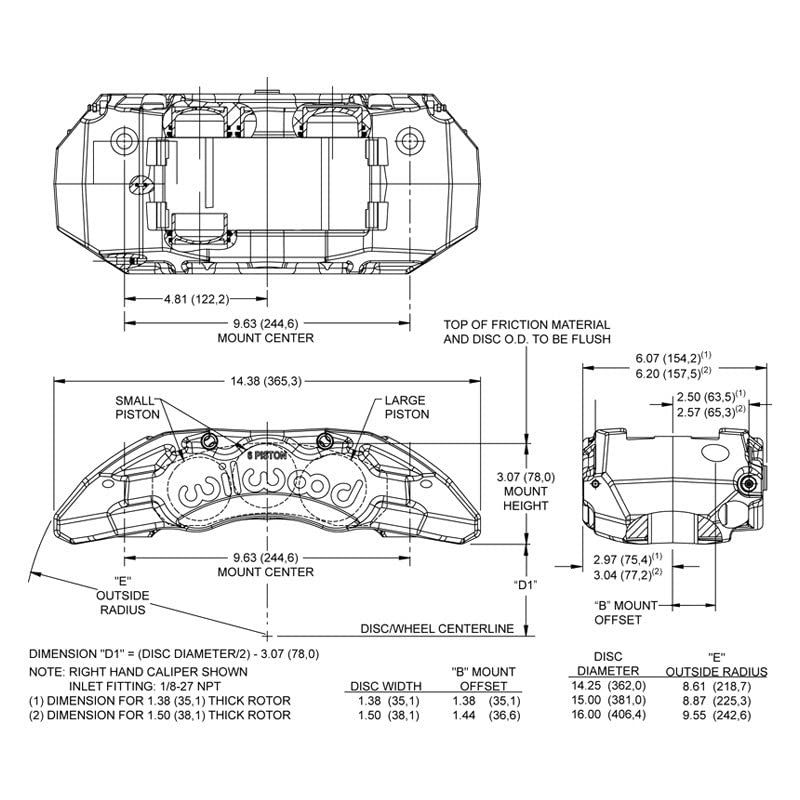

Developed for rotors from 14.25” to 16.00” diameter and rotor widths from 1.38” to 1.50”.

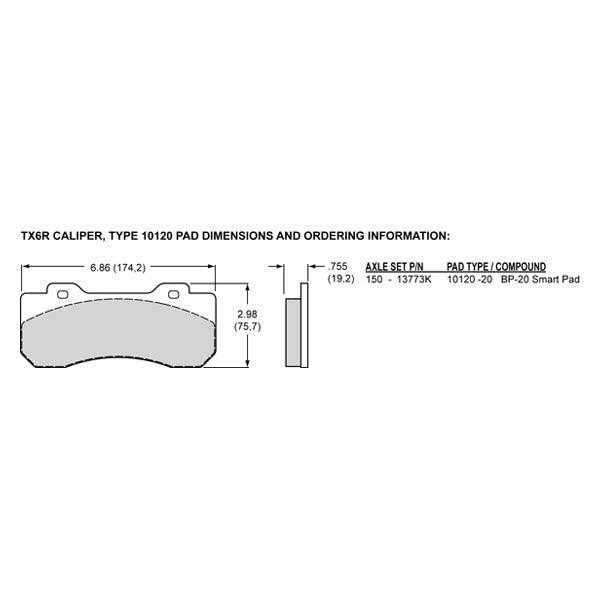

Easy access top loaded type 10120,.770” thick pads with rigid .240” thick backing plates.
Stainless steel bridge plates and Protected single bleed design with internal fluid ports.
Product Specifications Axle Set P/N Pad Type Compound Non-Bedded Pads - by Compounds 150-Q-10120K 10120 BP-Q 150-TX1-10120K 10120 TX1 Additional Notes Parts & Accessories
