Brand: Draw-Tite

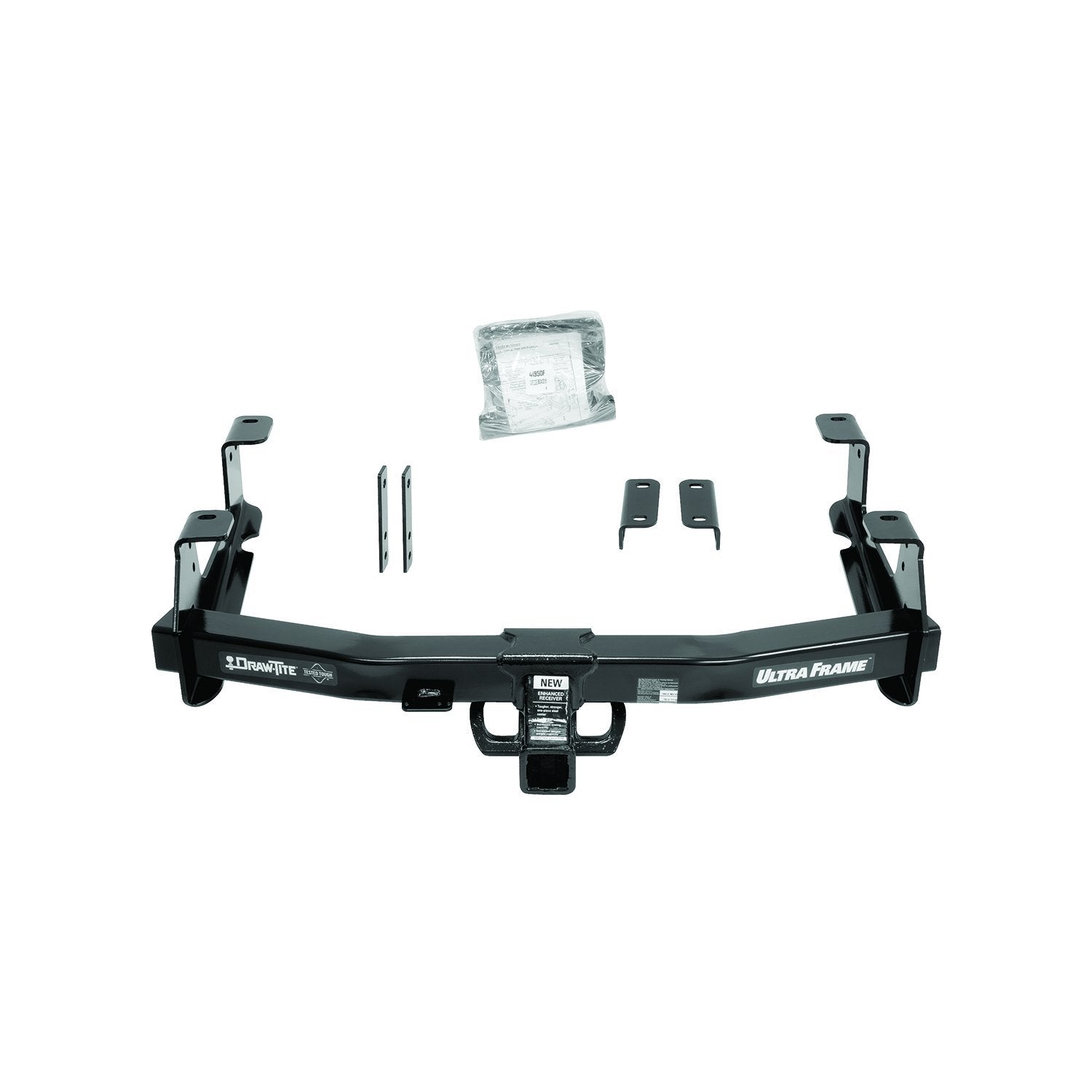

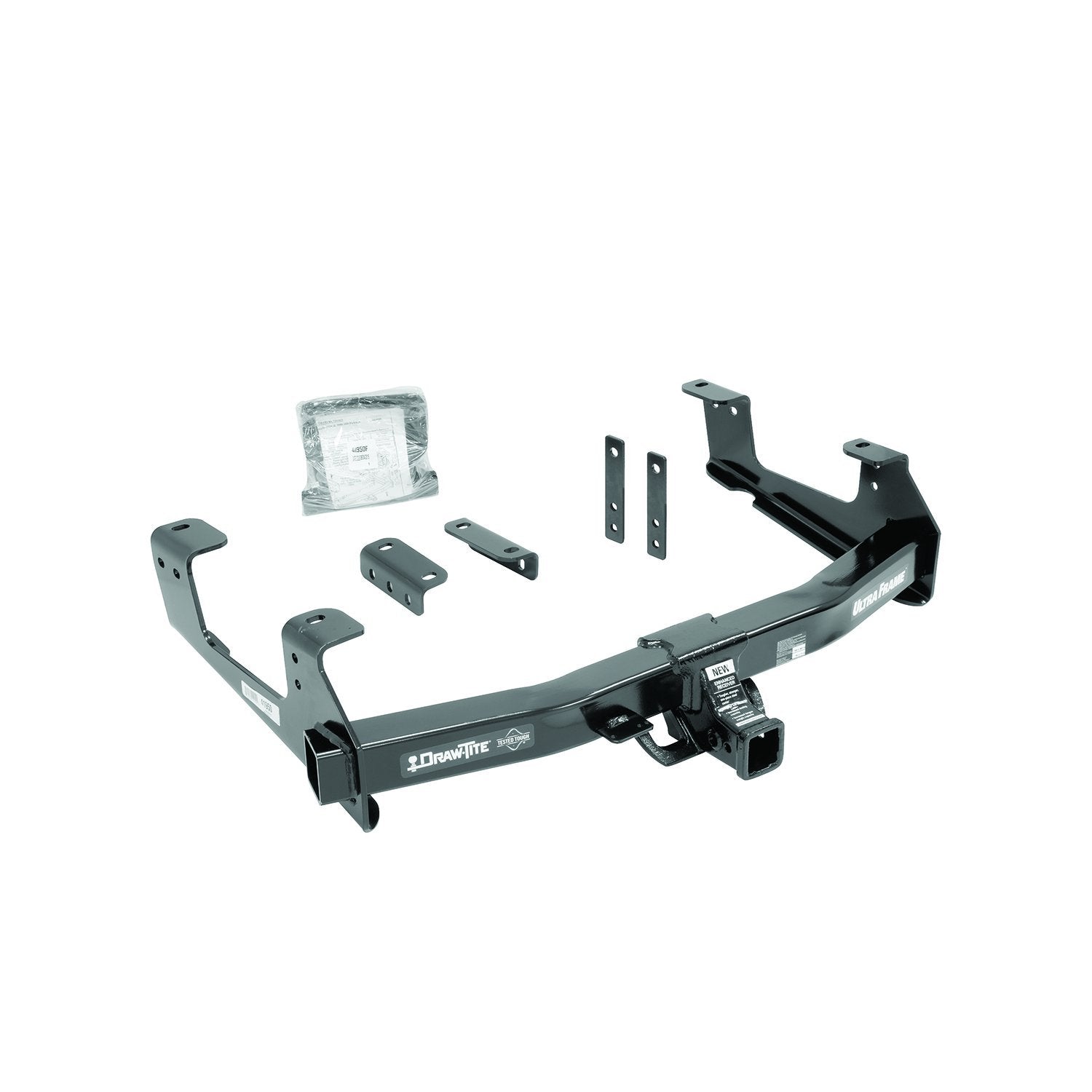

Class 5 Draw-Tite Ultra Frame Trailer Hitch, 2 Inch Receiver, Black, Compatible with
Class 5 Ultra Frame Trailer Hitch features a 2 inch receiver and a black finish.
Currently out of stock
No hidden fees — taxes included in the price & Free Shipping.
We accept major cards and digital wallets. Additional installment plans, when available, are offered by Shopify at checkout based on order eligibility.
Class 5 Draw-Tite Ultra Frame Trailer Hitch, 2 Inch Receiver, Black, Compatible with
The Class V Ultra Frame Receiver from Draw-Tite is a heavy-duty solution for towing with weight distribution.
The side bracket design is heavy-duty and distributes the towing load over a greater portion of the tow vehicle frame, making the Ultra Frame ideal for applications with high tongue weight.
Rated at up to 16,000 pounds Gross Trailer Weight (GTW) weight carrying (WC) capacity and rated up to 17,000 pounds (GTW) with weight distributing (WD) installation, the Ultra Frame offers a rugged solution for heavy-duty applications.
Solid, all-welded construction is used by Draw-Tite for maximum strength and safety, along with an all-frame attachment for maximum weight distribution.
Each Ultra Frame receiver is custom built according to manufacturer and model year using Computer-Aided Design (CAD) for a perfect fit and top towing performance.
Many years of reliable performance can be expected under rugged conditions.
The receiver opening is 2 inches square and is J-Pin Ready.
The A-Coat base with black powder coat finish is designed to withstand corrosion while maintaining an attractive appearance for years.
The Draw-Tite Ultra Frame ball mount must be used to achieve maximum weight carrying rating.
All Draw-Tite hitches meet and exceed V-5 and SAE J684 standards, are fully inspected for quality and workmanship, and are backed with a nationwide limited lifetime warranty.
The removable drawbar, pin, and clip are sold separately.
Draw-Tite is the premier brand of custom trailer hitches.
Key Features
Specifications
- Length
- 44.0 lb
- Width
- 30.0 lb
- Height
- 11.0 lb
- Weight
- 72.0 lb
- ASIN
- B012ZZV4UW
- UPC
- 742512419504
- Ships From
- United States
- Brand
- Draw-Tite
Frequently Asked Questions
About Class 5 Draw-Tite Ultra Frame Trailer Hitch, 2 Inch Receiver, Black, Compatible with
01 What is the weight carrying capacity of the Draw-Tite Ultra Frame Trailer Hitch?
Rated up to 15,000 lbs. (GTW) Weight Carrying (WC)
02 What is the weight distributing capacity of the Draw-Tite Ultra Frame Trailer Hitch?
Rated up to 17,000 lbs. (GTW) Weight Distributing (WD)
03 What type of vehicles is the Draw-Tite Ultra Frame Trailer Hitch designed for?
Designed for full-sized long wheelbase trucks, vans and utility vehicles with full frames and heavy-duty suspensions
04 What is the ASIN for this product?
The ASIN for this product is B012ZZV4UW.
05 What is the UPC / barcode for this product?
The UPC/barcode for this product is 742512419504.
06 Where does this ship from?
Orders ship from our fulfillment center in Dover, Delaware, USA.
07 How many days will it take to arrive?
Orders ship within 1-2 business days and typically arrive within 4-5 business days via free standard shipping -- usually by Aug 30.
08 Does this product accept returns?
Yes -- this item can be returned within 15 days of delivery for a free return by mail. See our return policy for full details.
