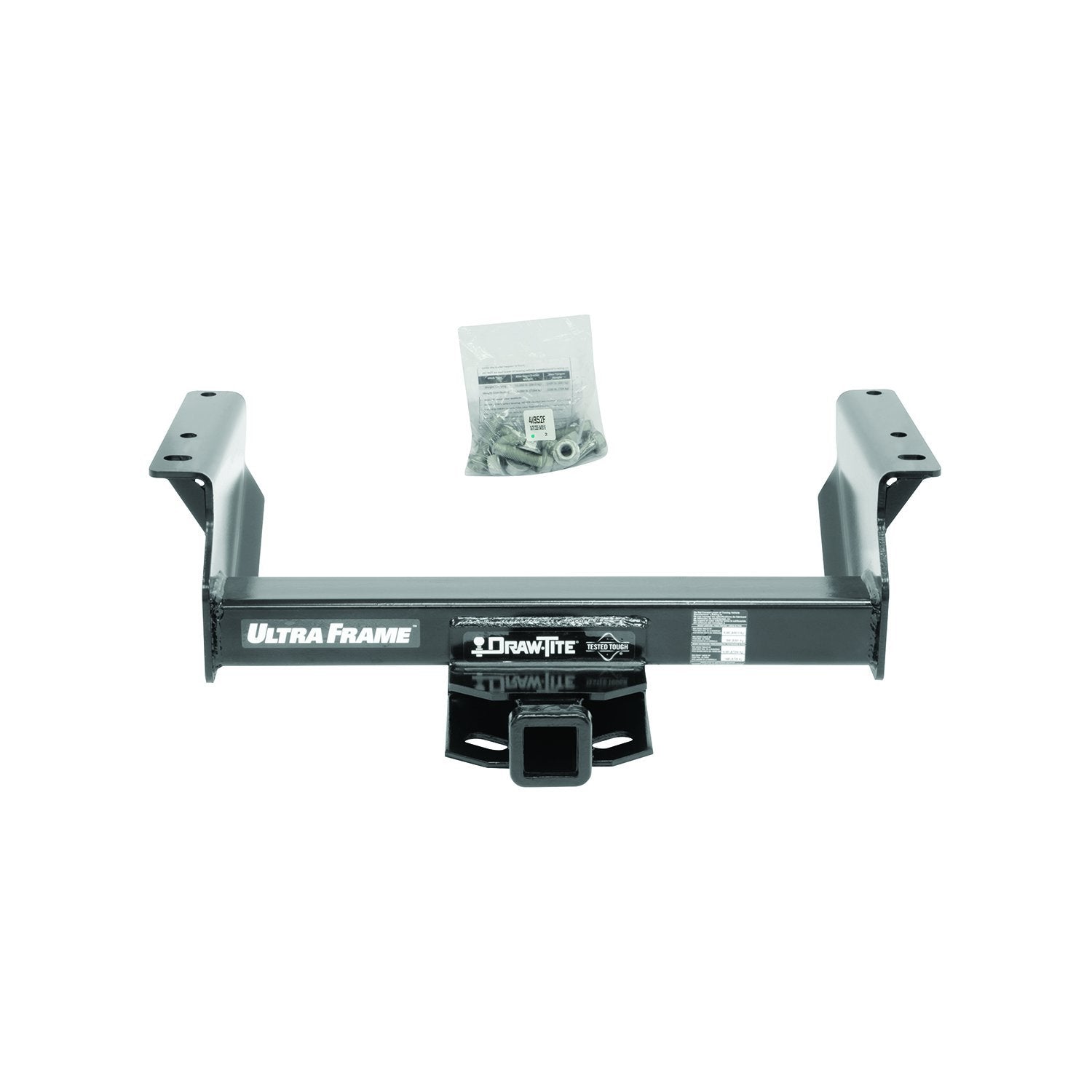

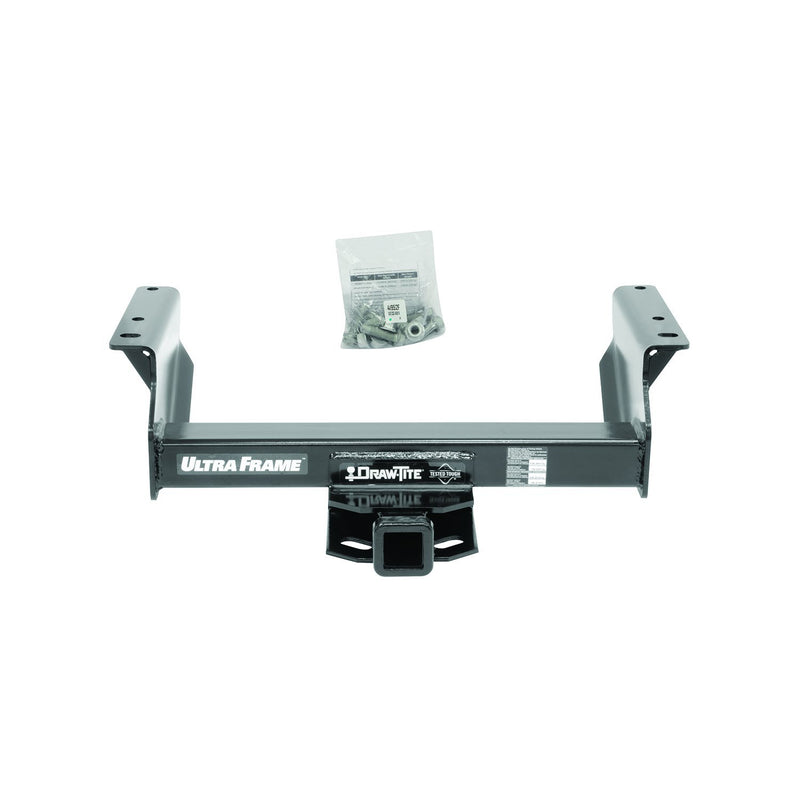

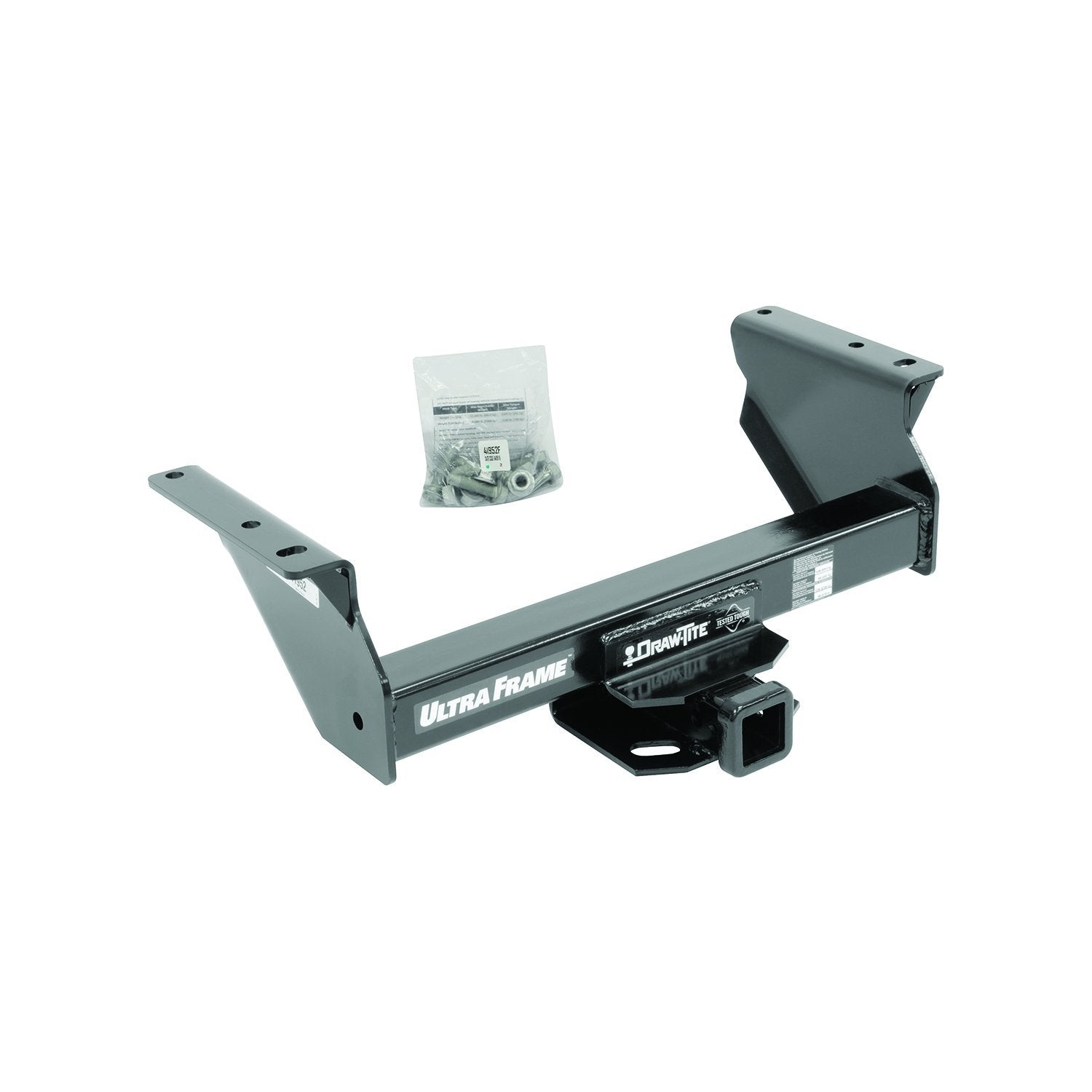

The Class V Ultra Frame Receiver from Draw-Tite is a heavy-duty solution for towing with weight distribution.
The side bracket design is heavy-duty and distributes the towing load over a greater portion of the frame of the tow vehicle, making it ideal for applications with high tongue weight.
Rated at up to 16,000 pounds Gross Trailer Weight (GTW) weight carrying (WC) capacity and rated up to 17,000 pounds (GTW) with weight distributing (WD) installation, the Ultra Frame offers a rugged solution for heavy-duty applications.
Solid, all-welded construction is used by Draw-Tite for maximum strength and safety, along with an all-frame attachment for maximum weight distribution.
Each Ultra Frame receiver is custom built according to the manufacturer and model year using Computer-Aided Design (CAD) for a perfect fit and top towing performance.
Many years of reliable performance can be expected under rugged conditions.
The receiver opening is 2 inches square and is J-Pin Ready.
The A-Coat base with black powder coat finish is designed to withstand corrosion while maintaining a good appearance for years.
The maximum weight carrying rating can be achieved with the use of the Draw-Tite Ultra Frame ball mount.
All Draw-Tite hitches meet and exceed V-5 and SAE J684 standards, are fully inspected for quality and workmanship, and are backed with a nationwide limited lifetime warranty.
The removable drawbar, pin, and clip are sold separately.
Draw-Tite is the premier brand of custom trailer hitches.
