Brand: Dakota Digital

Dakota Digital VHX System-Analog Clock Compatible with 1969 Chevy Chevelle/El Camino Carbon Fiber Style Face w/Red Display

Compatible with 1969 Chevy Chevelle/El Camino, the VHX System features an analog clock gauge.

$1,079.27 USD

Currently out of stock

No hidden fees — taxes included in the price & Free Shipping.

Get 5% OFF TodayUse this coupon at checkout.

Delivery by Sep 1

15-day returns

American Express Apple Pay Diners ClubDiscoverGoogle Pay JCBMastercard Visa

We accept major cards and digital wallets. Additional installment plans, when available, are offered by Shopify at checkout based on order eligibility.

Ships From Near YouRegional fulfillment centers get orders to your doorstep faster.
Quick SupportReal answers, fast — reach us any time at info@trybeepbeep.com

Why shop with us

100% authentic productsGuaranteed genuine quality
Secure checkoutSafe & encrypted payments
Fast shippingQuick and reliable delivery
Hassle-free returnsEasy returns if needed
Customer firstYour satisfaction matters
Verified sellersCarefully selected suppliers
Product Overview

Dakota Digital VHX System-Analog Clock Compatible with 1969 Chevy Chevelle/El Camino Carbon Fiber Style Face w/Red Display

Dakota Digital VHX System-Analog Clock Compatible with 1969 Chevy Chevelle/El Camino Carbon Fiber Style Face w/Red Display

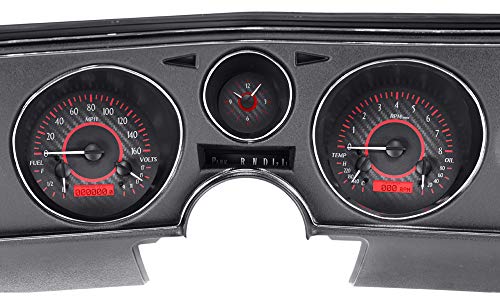

The VHX System is designed to fit directly into the stock instrument bezel without modification, adding a wealth of features to this iconic vehicle.

This system includes an analog clock gauge (traditional style).

A prime candidate for today's Restomod builds, the '69 Chevelle has been a favorite among enthusiasts for decades.

For those who want it 'stock, but not', this system fills a stock or reproduction dash bezel (bezel shown in pics is not included) with stylish and up-to-date instrumentation, no cutting required!

Stock turn signal locations can be retained.

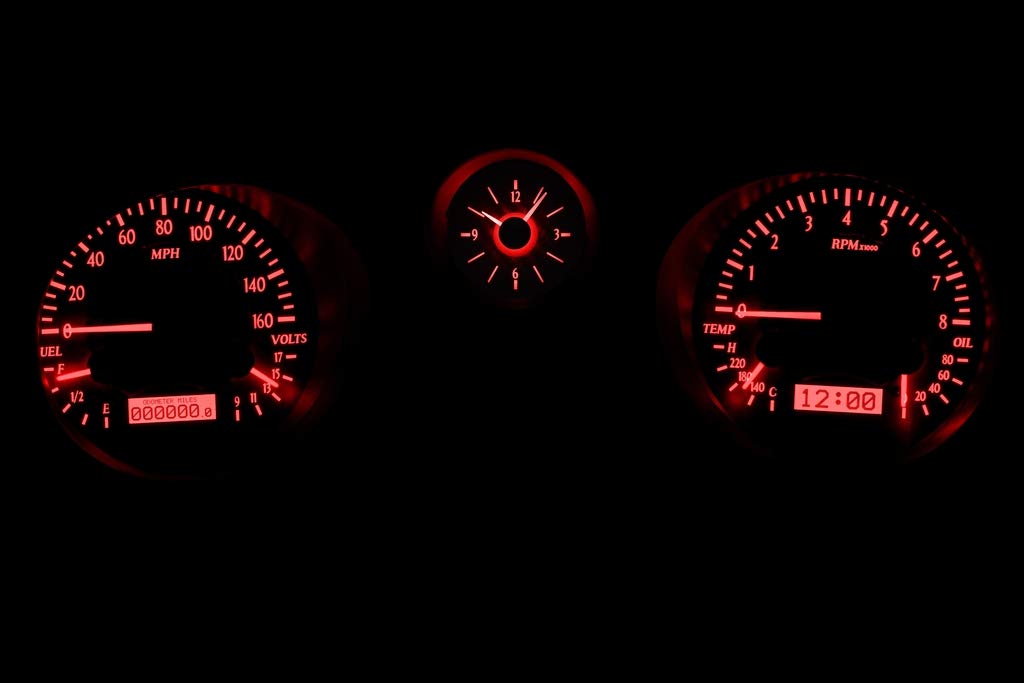

Fully lit needles, backlit faces, and highly visible LCD message centers are a few of the features that set the VHX Series apart from yesterday’s traditional approach to instrumentation.

A few features which you don’t normally see are the micro-controlled precision stepper motors, solid state sensors for unparalleled accuracy, and user-customizable display feedback, all supported by an unrivaled limited lifetime warranty which has become the standard for Dakota Digital instrumentation systems.

Completely engineered and manufactured at their facility in Sioux Falls, South Dakota, the VHX Series has revolutionized the instrumentation industry!

* Requires the use of the factory bezel.

Bezel shown in pics is not included.

Key Features

Included Displays: Speedometer, Tachometer, Oil Pressure, Water Temp, Voltmeter, Fuel Level, and Analog Clock gauge
Also shown in digital message center: Odometer, Trip Odometer, Resettable Service Odometer, Clock, Hour Meter, 0-60 MPH Timer
Various Indicators can be displayed: Turn Signals, High Beam, Check Engine, Parking Brake, Cruise Control

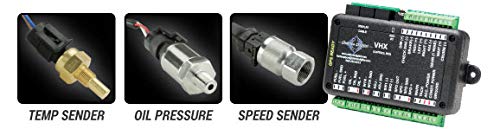

Necessary sensors included for oil pressure (1/8” NPT), Water Temp (1/8" with bushings for 1/4", 3/8", 1/2” NPT as well 12mm and 16mm for GM & LS applications) and speedometer pulse generator
VHX-69C-CVA-C-R (carbon fiber style/red backlighting) is compatible with 1969 Chevy Chevelle / Malibu / El Camino
Bezel is NOT included, shown for visual purposes only

Specifications

Technical Specifications
Length
24.0 lb
Width
14.0 lb
Height
6.0 lb
Weight
8.0 lb
Product & Shipping Details
ASIN
B088RLKQTM
UPC
670219116542
Ships From
United States
Brand
Dakota Digital
FAQ

Frequently Asked Questions

About Dakota Digital VHX System-Analog Clock Compatible with 1969 Chevy Chevelle/El Camino Carbon Fiber Style Face w/Red Display

01 What displays are included?

Included Displays: Speedometer, Tachometer, Oil Pressure, Water Temp, Voltmeter, Fuel Level, and Analog Clock gauge

02 What indicators can be displayed?

Various Indicators can be displayed: Turn Signals, High Beam, Check Engine, Parking Brake, Cruise Control

03 What sensors are included?

Necessary sensors included for oil pressure, Water Temp, and speedometer pulse generator

04 What is the ASIN for this product?

The ASIN for this product is B088RLKQTM.

05 What is the UPC / barcode for this product?

The UPC/barcode for this product is 670219116542.

06 Where does this ship from?

Orders ship from our fulfillment center in Dover, Delaware, USA.

07 How many days will it take to arrive?

Orders ship within 1-2 business days and typically arrive within 4-5 business days via free standard shipping -- usually by Sep 1.

08 Does this product accept returns?

Yes -- this item can be returned within 15 days of delivery for a free return by mail. See our return policy for full details.
