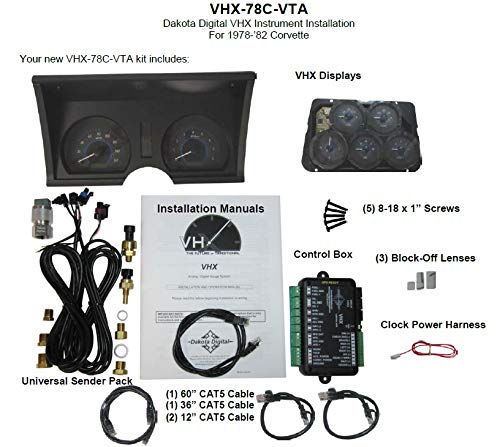

The new VHX Systems fit directly into the stock instrument dash of a 1978-82 Chevy Corvette without modification, adding a wealth of features to this iconic vehicle.
This listing is for the one that includes an analog clock; if you want a digital clock instead, please look in our store for the VHX-78C-VET.

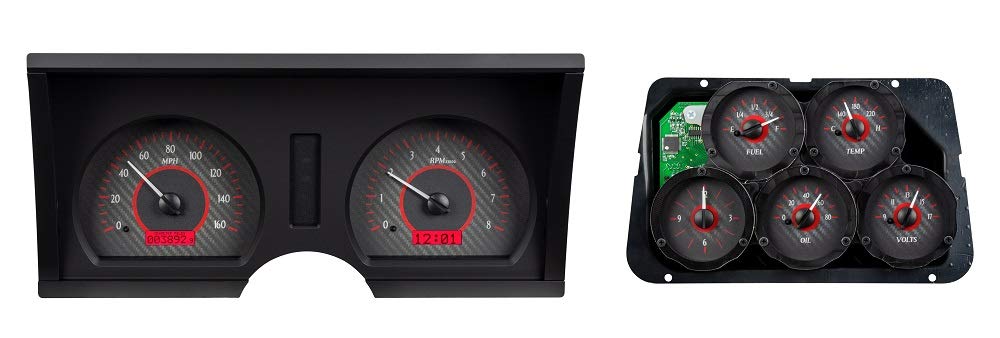

The gauge housing for the Speedometer and Tachometer has been completely replicated in billet aluminum, powdercoated in a flat black to maintain the original theme.

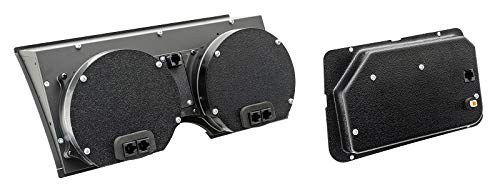

Oil Pressure, Water Temperature, Voltmeter, Fuel Level, and an additional LCD Message Center (if selected) attach directly to the back side of the stock center console bezel.

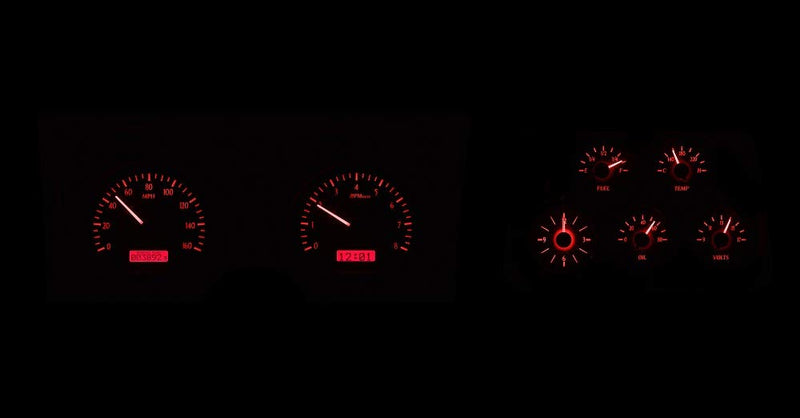

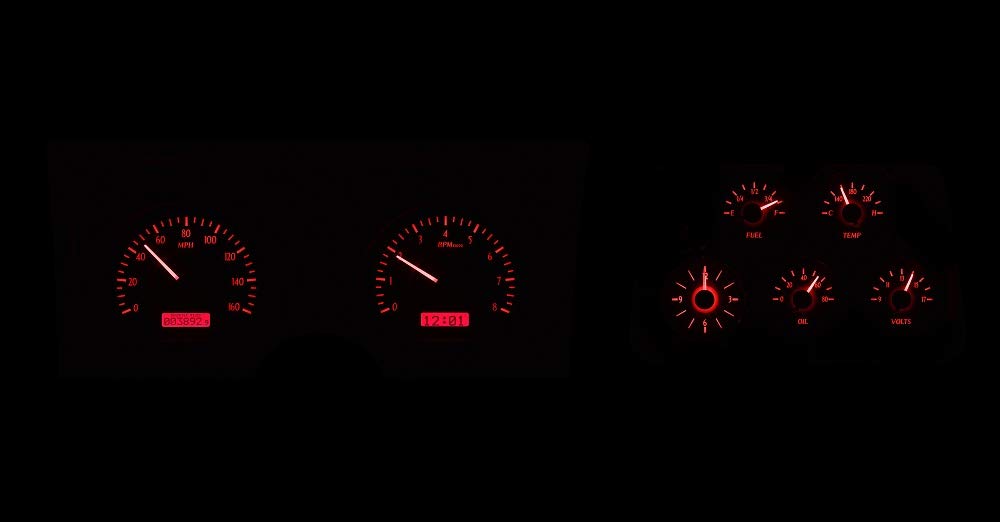

Fully lit needles, backlit faces, and highly visible LCD message centers are a few of the features that set the VHX Series apart from yesterday’s traditional approach to instrumentation.
A few of the features which you don’t normally see are the micro-controlled precision stepper motors, solid state sensors for unparalleled accuracy, and user-customizable display feedback, all supported by an unrivaled limited lifetime warranty which has become the standard for Dakota Digital instrumentation systems.
Completely engineered and manufactured at Dakota Digital's facility in Sioux Falls, South Dakota, the VHX Series has completely revolutionized the instrumentation industry!
Analog Gauges: Speedometer - 0-160 MPH Tachometer - 0-8000 RPM Oil Pressure - 0-80 psi Water Temperature - 100-260ºF Fuel Level - E, 1/4, 1/2, 3/4, F Voltmeter - 9-17 VDC Digital Message Centers: Standard Displays: - Odometer (One time user settable, Million Mile) - Dual (A/B) Trip Meter (0- 9,999.9) - Clock (12 hour) Performance Meters: - 0-60 MPH Timer (0- 100 kmh) - 1/4 mile time - 1/4 mile end speed (trap speed) - High speed recall - High RPM recall Built-In Indicators: - Turn Signals (Left/ Right) - High Beam - Check Engine - Parking Brake - Cruise Control (On/ On & Engaged when vehicle is equipped)
