Capture an amazing view of the terrain around your Jeep, Rock Crawler, or Overlander with TerrainView from Echomaster.
Add 4 cameras to any vehicle with a single video input.
View 1, 2, 3, or all 4 cameras at once on your existing display.
INCREASED VISIBILITY Get an unobstructed view of what’s around and under your vehicle from 4 different angles.
15 VIEWING OPTIONS Access any specific camera or see a split-screen view of multiple cameras simultaneously.
EASY TO CONNECT 5-pin plugs replace more complicated wiring, simplifying installation.
BUILT-IN DVR Automatically capture your adventures from all 4 cameras on a micro SD card (not included).

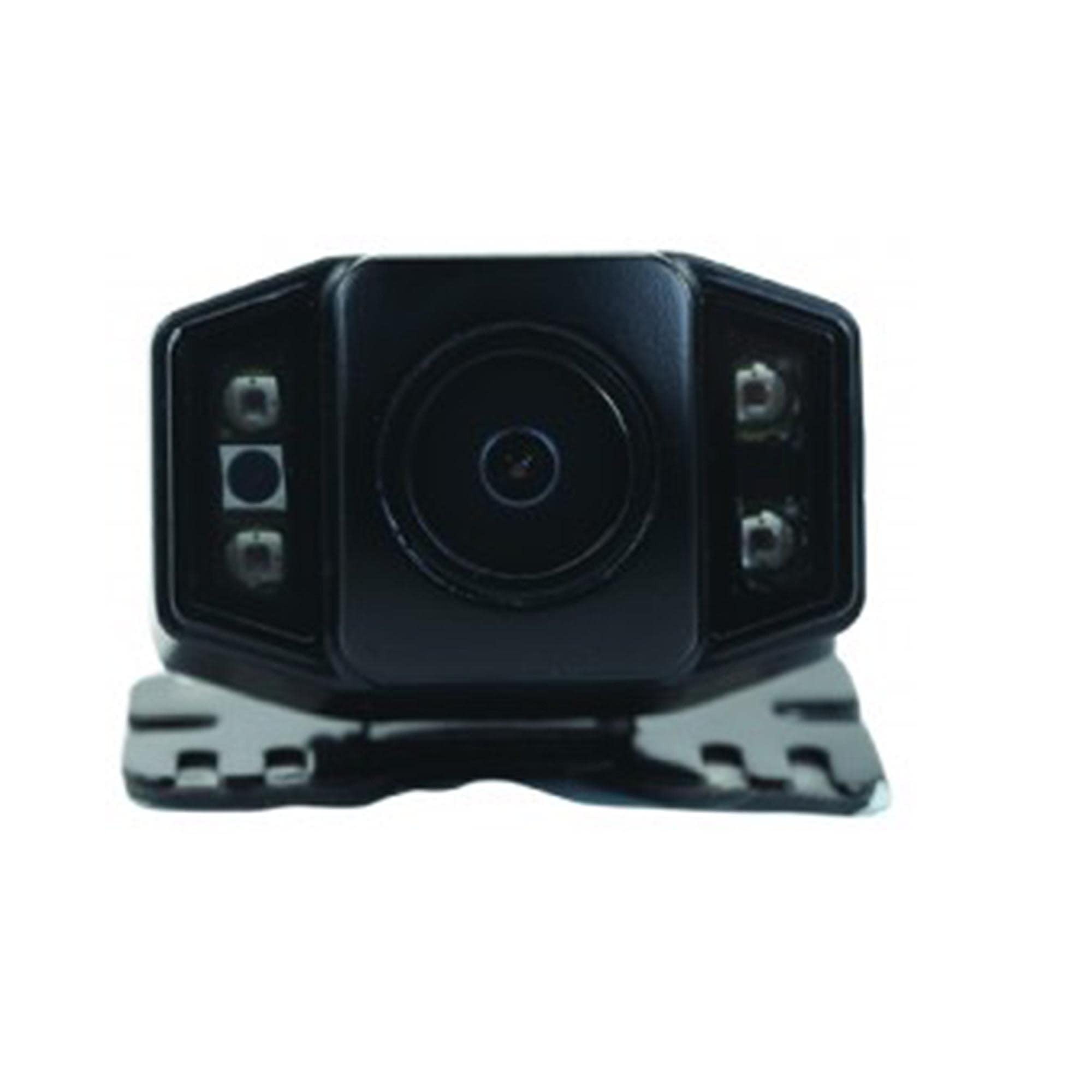

DURABLE Trail-ready IP67-rated camera is ready to withstand the harsh elements.
3-YEAR CAMERA WARRANTY Provides peace of mind.
ADDITIONAL FEATURES Wired remote control button Toggle through all 15 available view combinations by clicking the button.

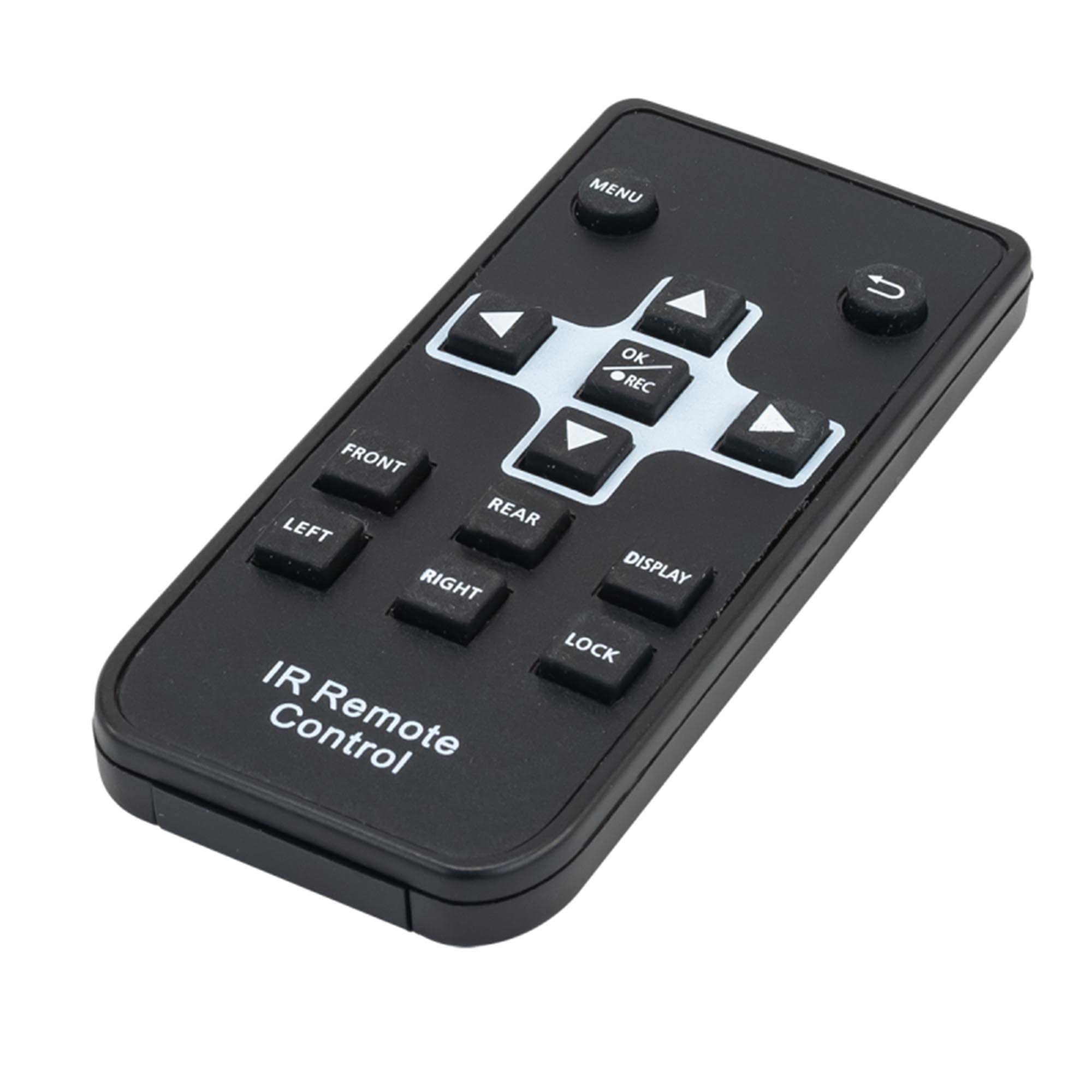

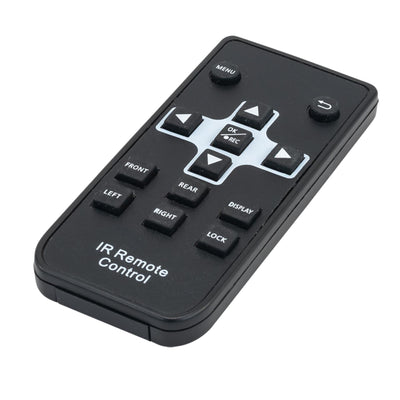

Wireless remote control Wireless IR remote provides access to a specific camera or cameras.
TECHNICAL SPECS Video output options: CVBS output at 648 x 488 AHD output at 1280 x 720 Camera viewing angle 170 degrees Sensor type 1/4” CMOS All cameras equipped with infrared LEDs for low light situations.
Water/debris resistance rating IP67 Mirror option (selectable using DIP switch) v1.0 Supports up to 128GB Micro SD Card (not included) v2.0 128GB USB thumb drive.
3-Year warranty on cameras, 1-year on video multiplexer.

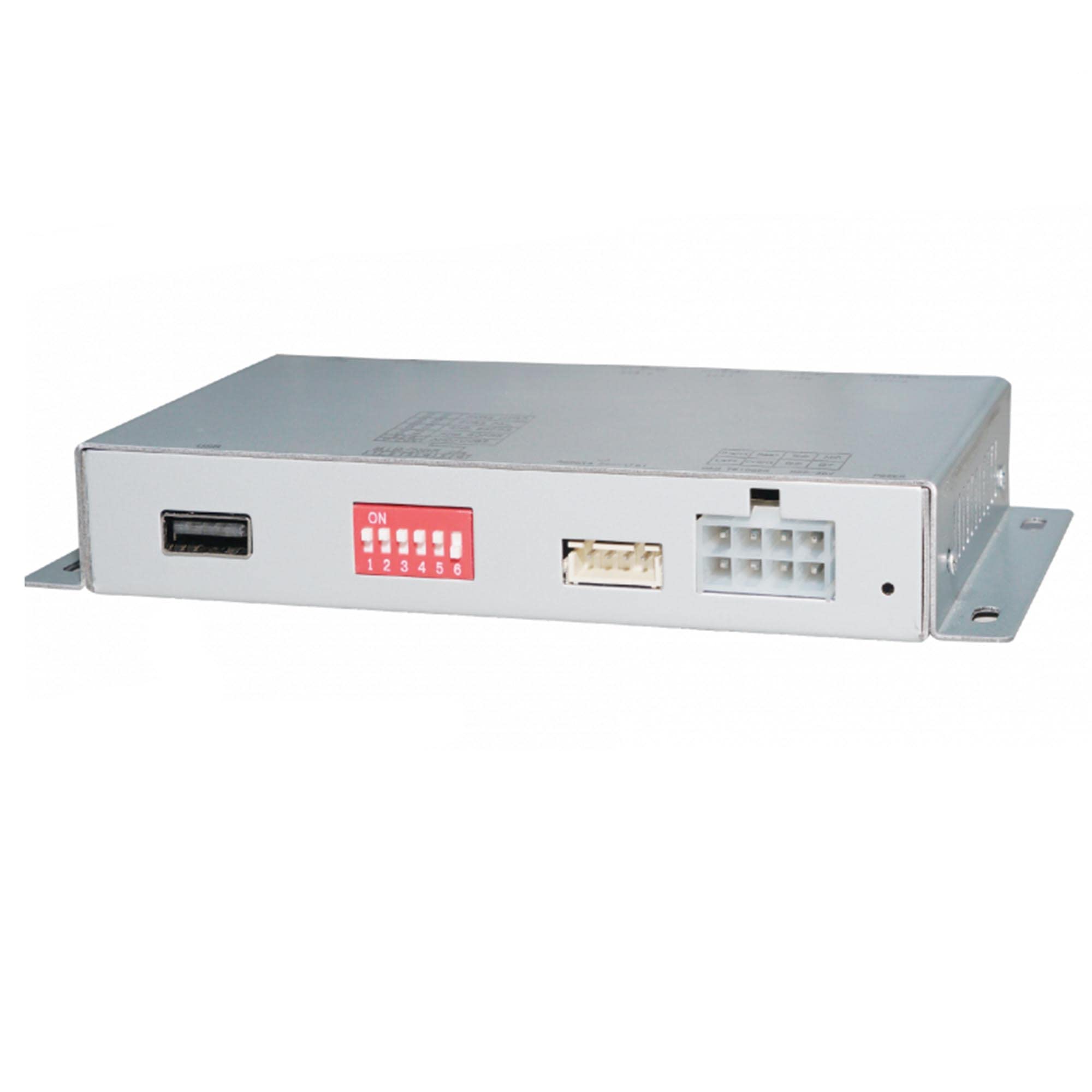

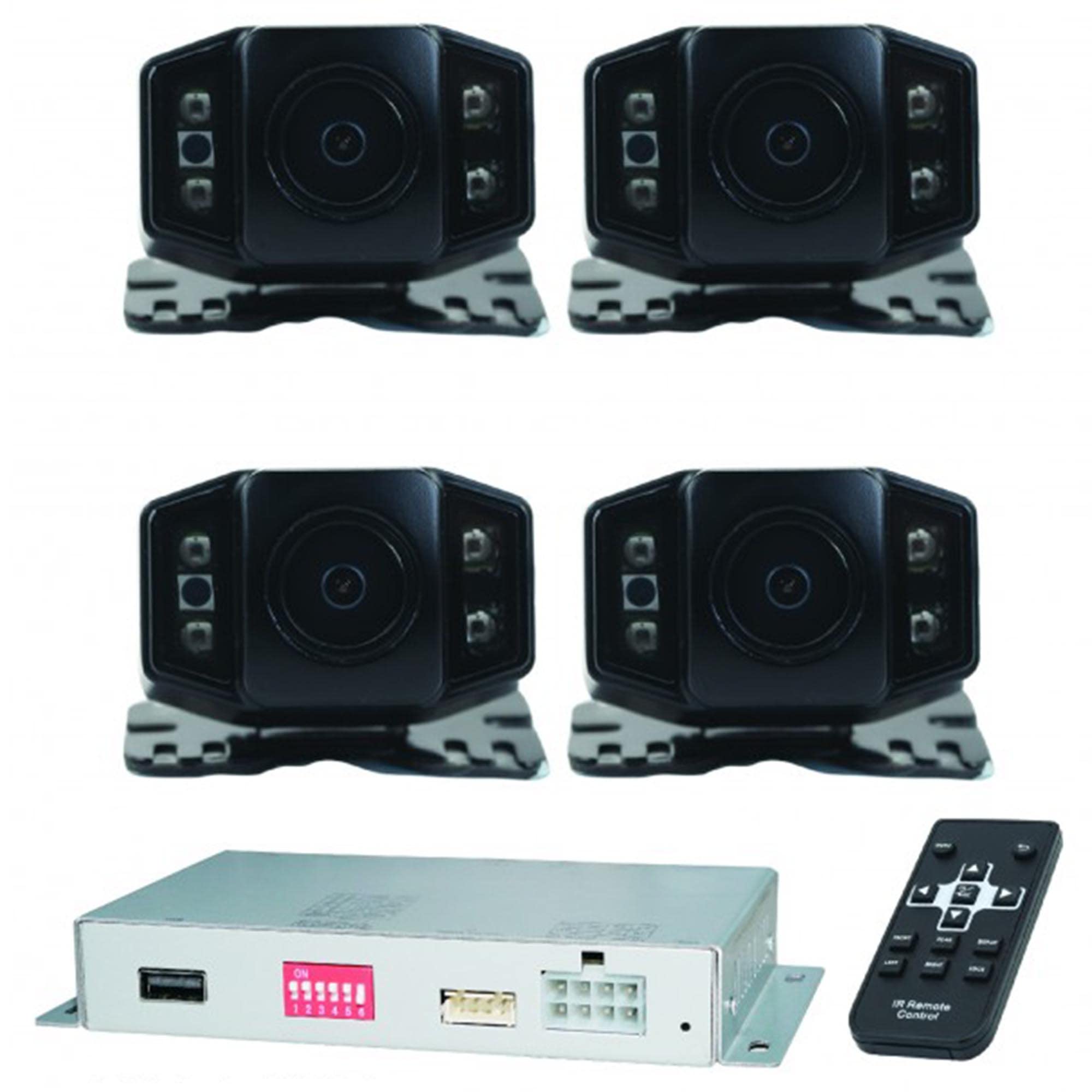

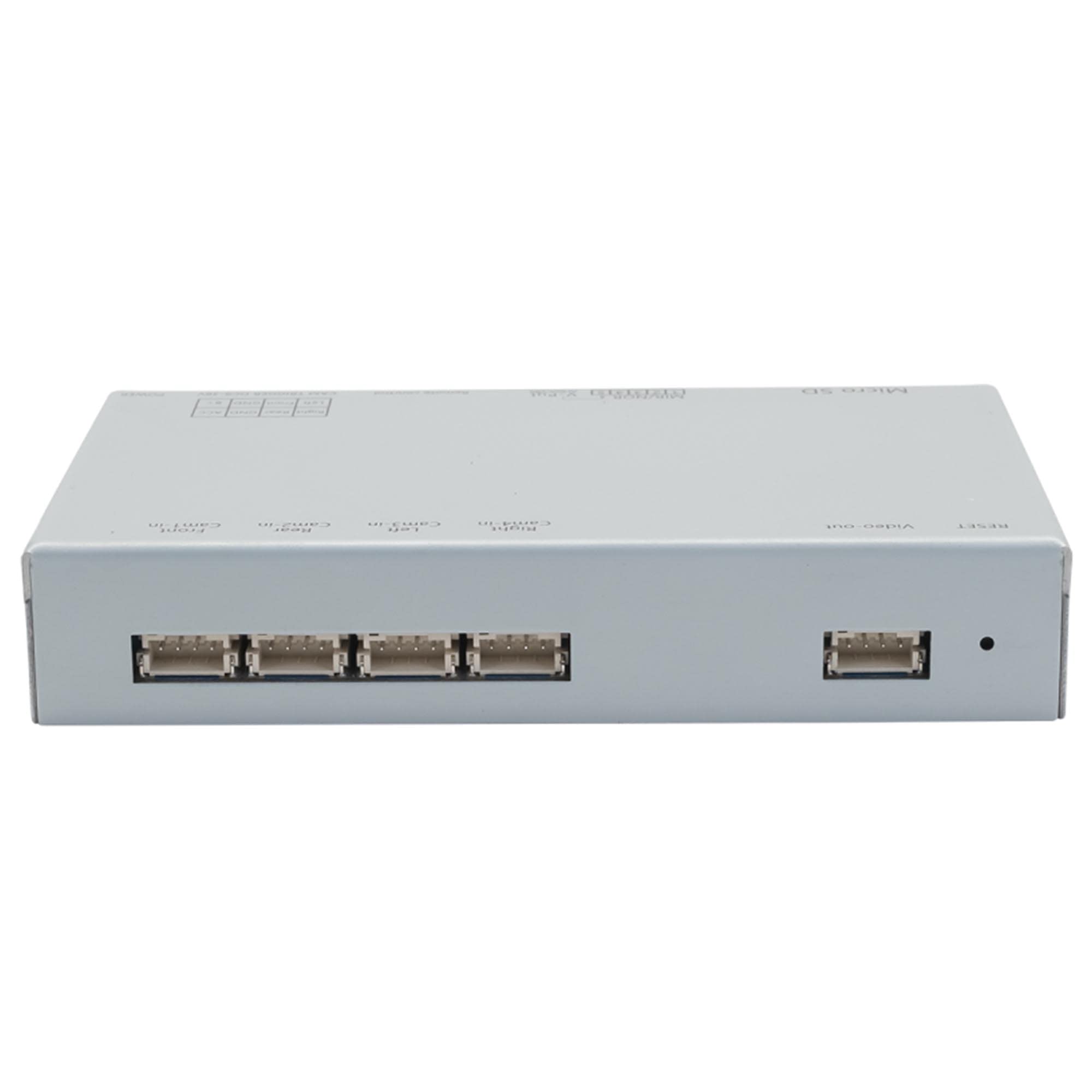

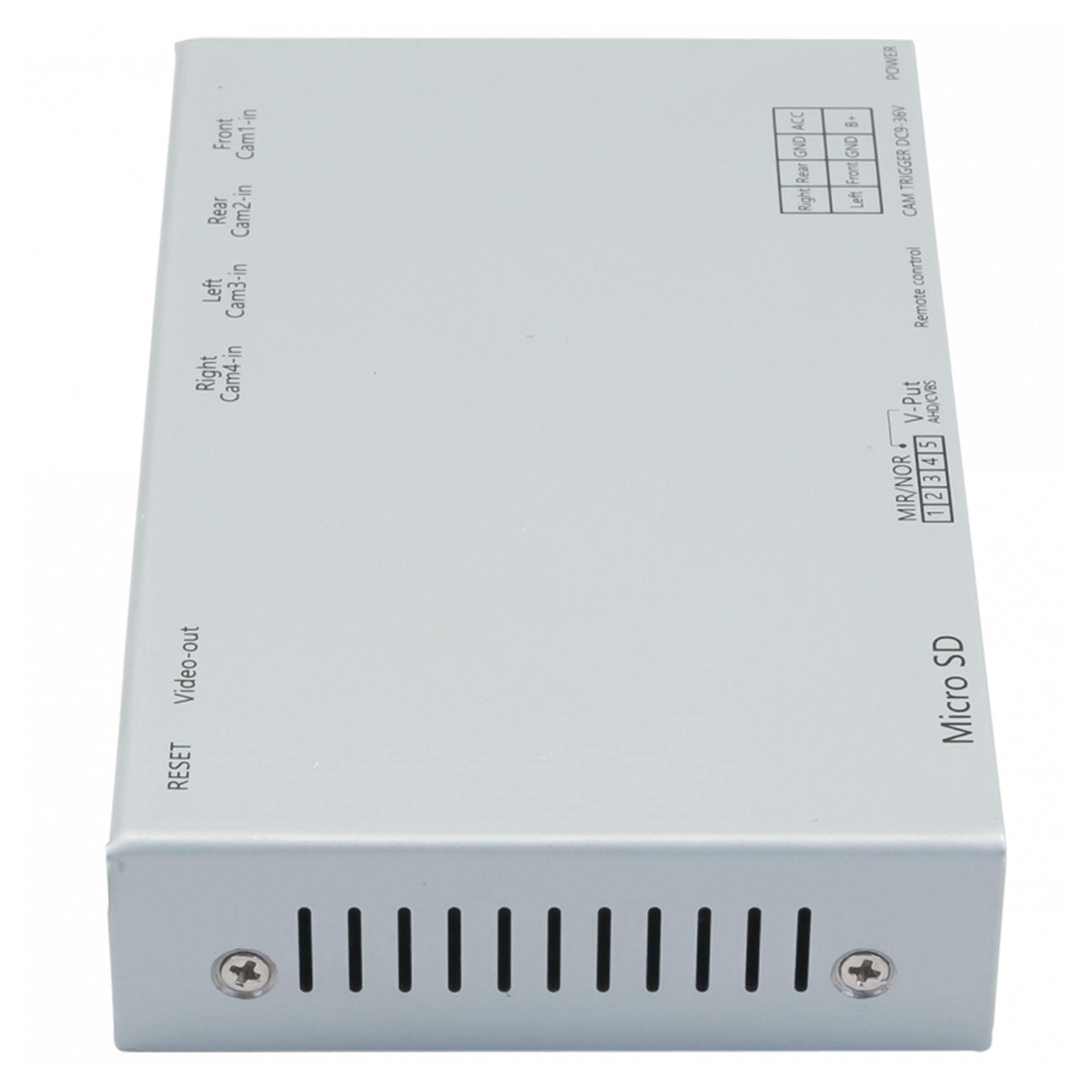

WHAT’S IN THE BOX 4x IP67-Rated cameras 1 AVS21 video switcher 1 Video multiplexer with built-in DVR 4 Camera connection harnesses 4 Camera extension cables Wireless remote control Wired remote control USB extension RCA cable Zip ties Manual Warranty card.
