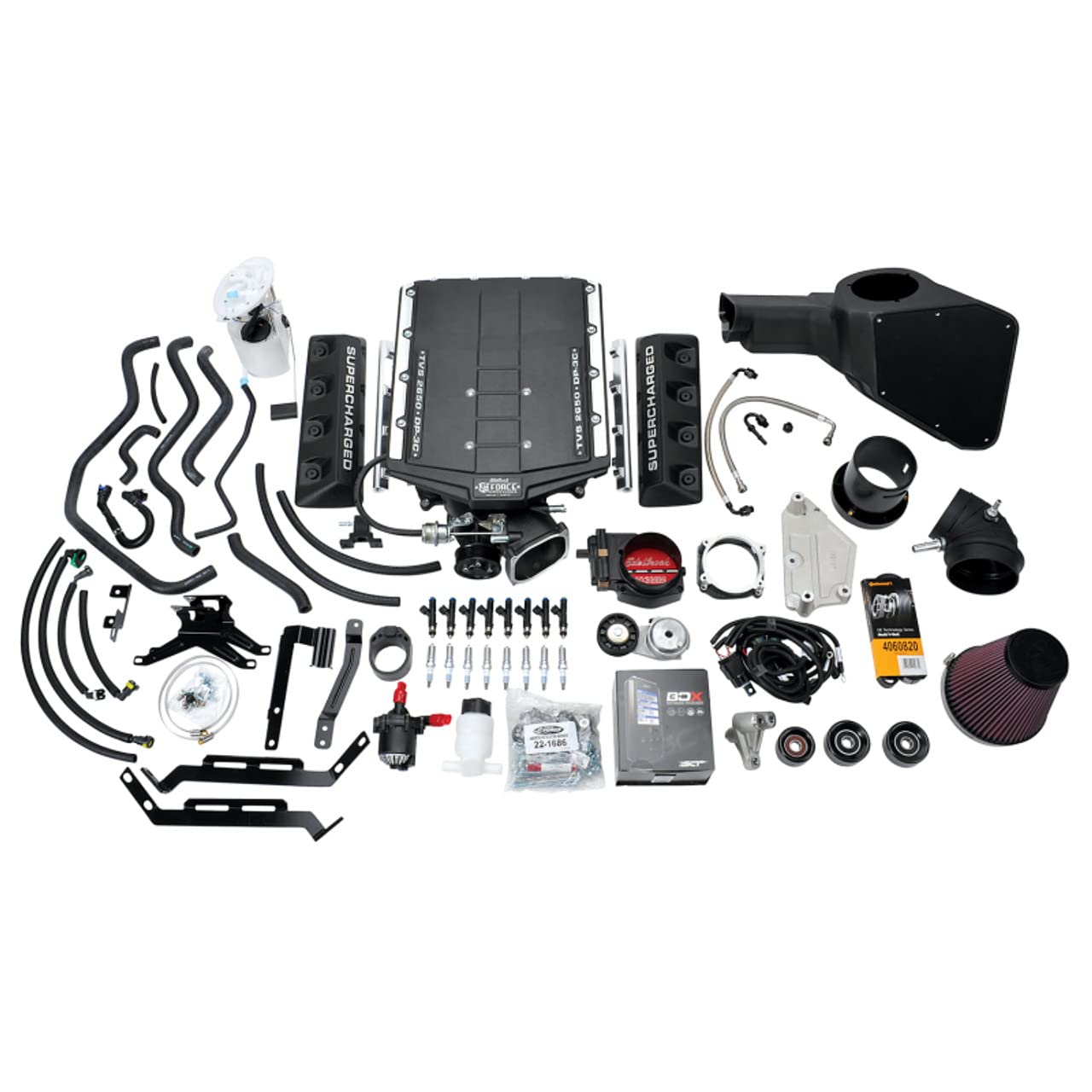

Edelbrock Stage 2 Supercharger W/O TUNER #158390 for 2015-17 Mustang 5.0L Coyote Engine, R2650 TVS with DP3C air-to-water intercooler, bolt-on installation with no modifications to hood or body, 50-emissions-legal with Edelbrock calibration.
The Edelbrock Stage 2 Supercharger System W/O TUNER #158390 for the Gen 2 Ford 5.0L Coyote engine takes your 2015-17 Mustang to the next level.
This potent new kit adds huge gains in horsepower and torque over Stage 1 performance, all while maintaining emissions-legal status in all 50 states.
At the heart of this system is the top-of-the-line R2650 TVS rotor assembly housed with an integrated high-capacity DP3C (dual-pass, three-core) air-to-water intercooler that lowers incoming air temperatures and increases power potential.
To support the additional Stage 2 power increase, the fuel system components are upgraded to include larger 78 lb/hr direct-port injectors along with a drop-in 400 LPH fuel pump assembly with internal check valve.
A dramatic increase in airflow over the Stage 1 kit comes from a new 103mm billet aluminum throttle body and high-flow air intake system with 113mm MAF housing.
Like our Stage 1 kit for the Mustang, the Stage 2 System installs cleanly with no modifications to the hood or body and comes complete with all hardware, hoses and a handy full-color step-by-step instruction manual to streamline the installation process.
This kit is backed by Edelbrock's industry-leading 3-Year/36,000-mile Powertrain Warranty.
For the same kit with tuner, order #15839.
Manufacturer Edelbrock Application Application Specific UPC 00085347891061 System Type Stage 2 - Street/Strip System Vehicle Model Mustang Housing Material Cast Aluminum Gasket Or Seal Included Yes Quantity Kit Oil Capacity 150 mL Center Housing Cooling Type Intercooler Internal Step Up Yes Mounting Bracket Included Yes Outside Pulley Diameter 3.25 in CARB Executive Order Number D-215-107 Fuel Injector Type 78 lb/hr Availability Note Available to Order Warranty 36 Months Throttle Body Bore 103 mm Emissions Code EO Number: D-215-107 Hazardous Materials Warning WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm.
For more information, visit www.P65warnings.ca.gov.
Installation Notes Supercharger systems without tuners are not eligible for supplemental warranty and are only emissions-legal when used with the correct Edelbrock program.
For safety, the Edelbrock program retains the factory vehicle speed limiter setting.
Calibrations, Tuners, or Programs supplied with supercharger systems are only compatible with vehicles designed for use in the United States or Canada.
Edelbrock does not offer calibration support for any vehicle designed for use outside of the United States or Canada.
Finish Black Powder Coated Pulley Belt Width 6-Rib Universal Or Specific Fit Specific.
