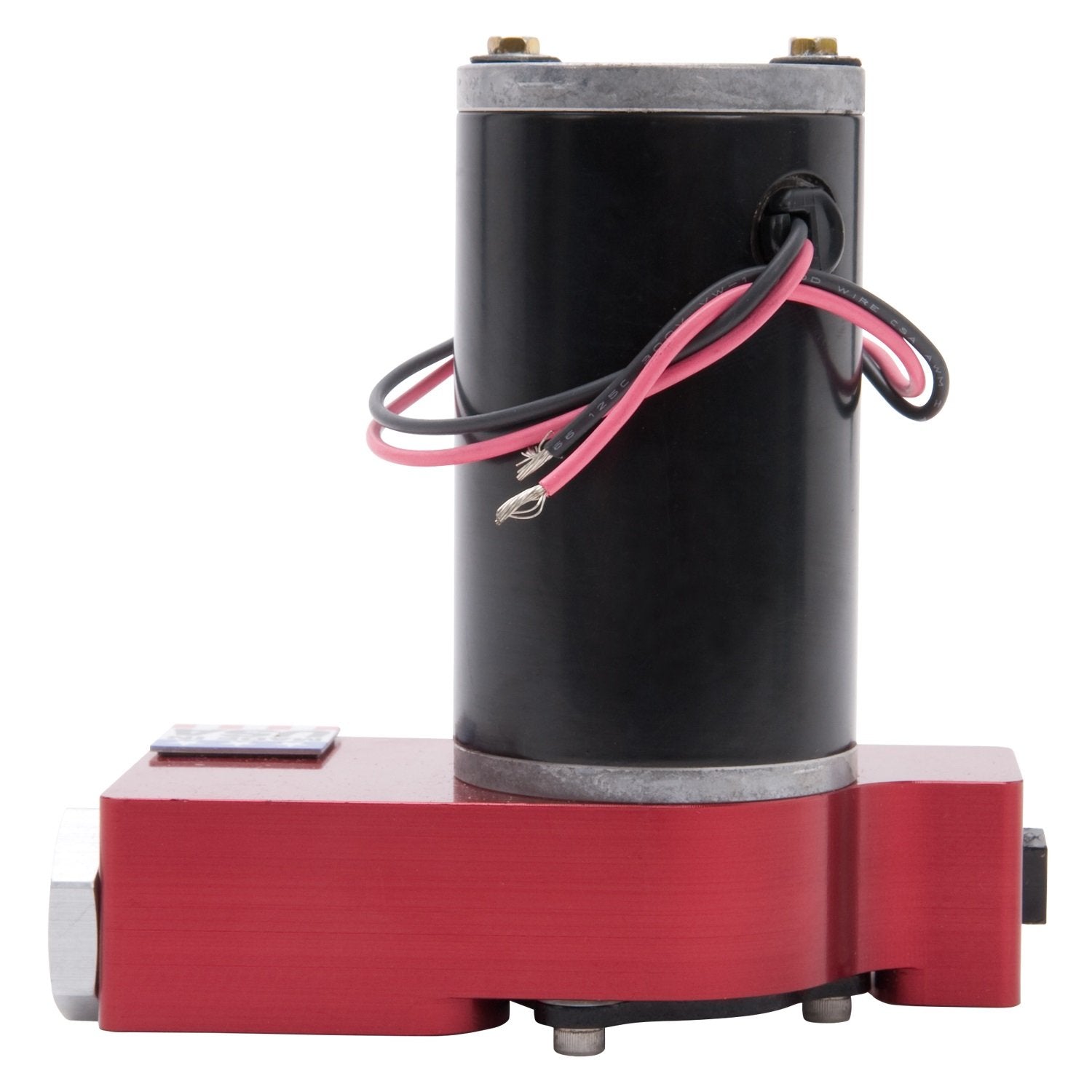

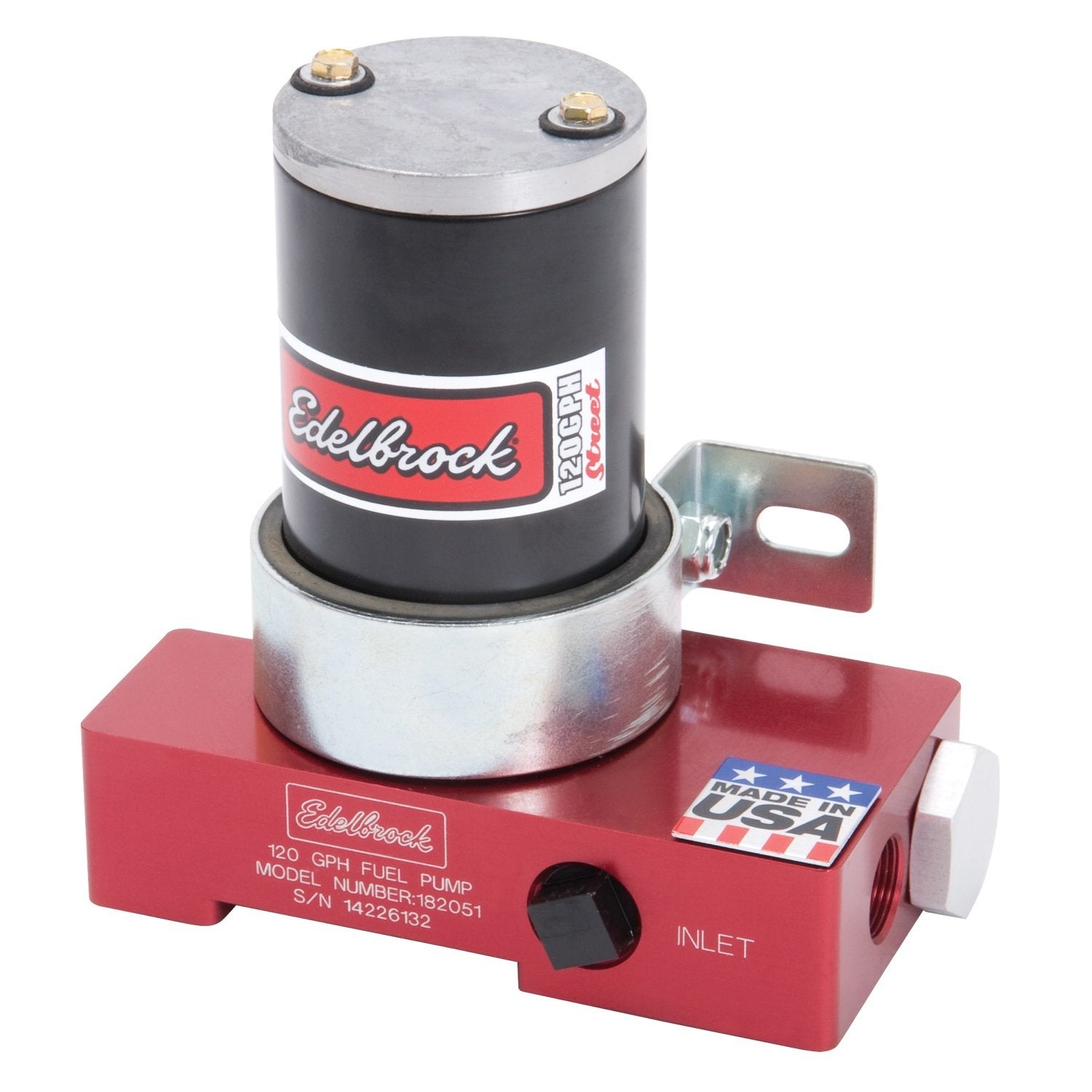

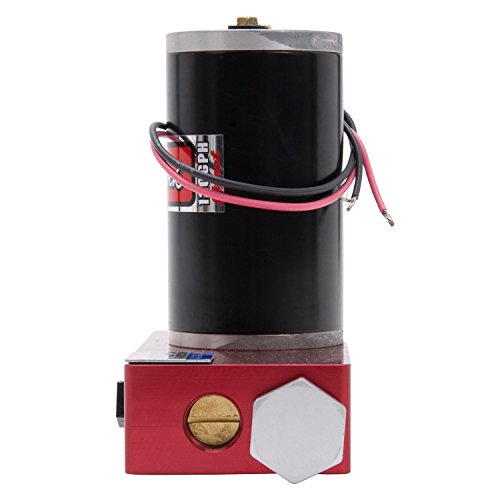

These electric fuel pumps, state-of-the-art, offer maximum performance in a compact package.
With high-quality internals and anodized aluminum housings, they are both strong and durable.
Each pump includes mounting brackets and is factory-tested.
The carbon vanes and composite rotor give these pumps the added boost for maximum performance.
The construction results in a pump that is 4 to 14 dB quieter than competitors' pumps at the same pressure.
#1791 is factory preset to 6.5 psi, and no regulator is required.
With a replaceable screen type inlet filter and a free flow rate of 120 GPH, it is sufficient to supply 480 hp.
#1792 has a free flow rate of 160 GPH, enough to feed a 1000 hp engine.
This pump is factory preset to 12 psi and requires an external regulator such as the regulator #1727.
Use with diesel fuel will void the warranty.
These pumps should be mounted as close to the fuel tank as possible, at or below the fuel level.
For proper installation and voltage requirements, use fuel pump relay kit #1795.
All fuel pumps are for gasoline only.
Rebuilding services for Quiet-Flo fuel pumps are offered - call for more information.
