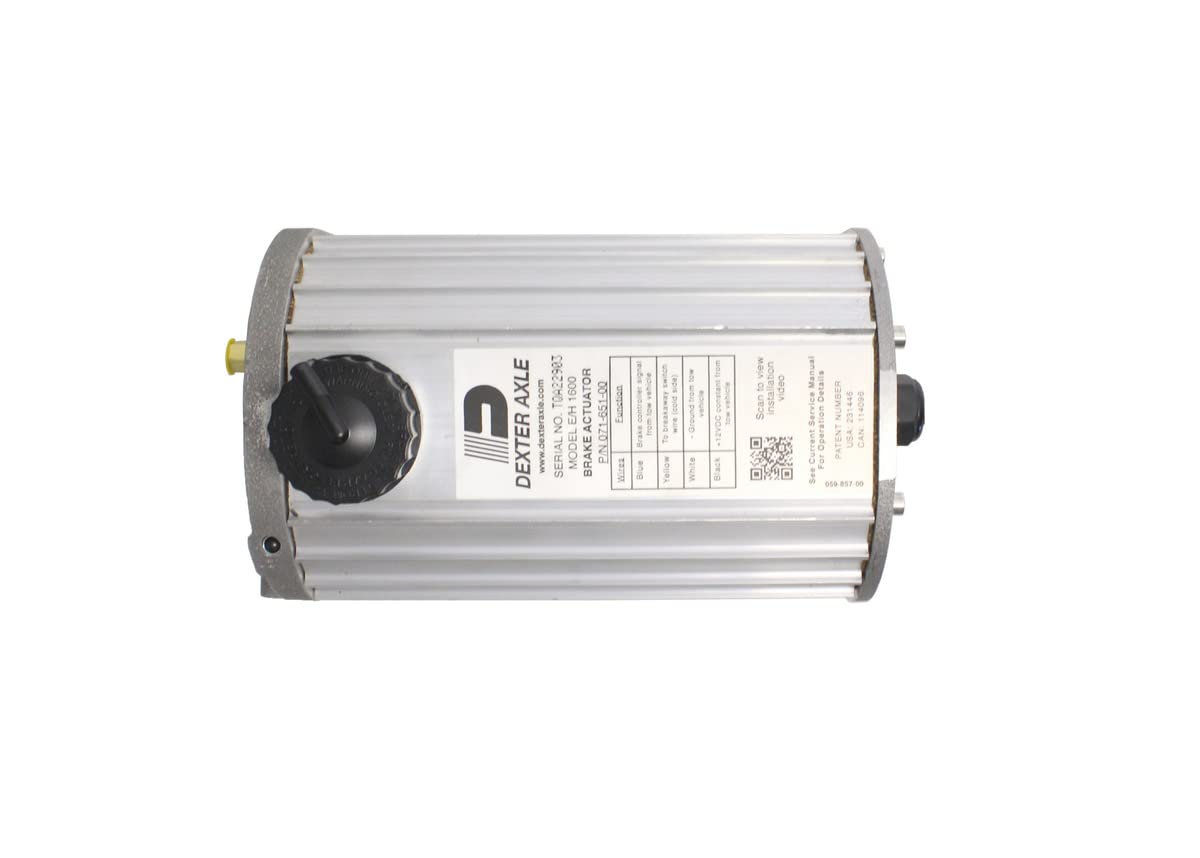

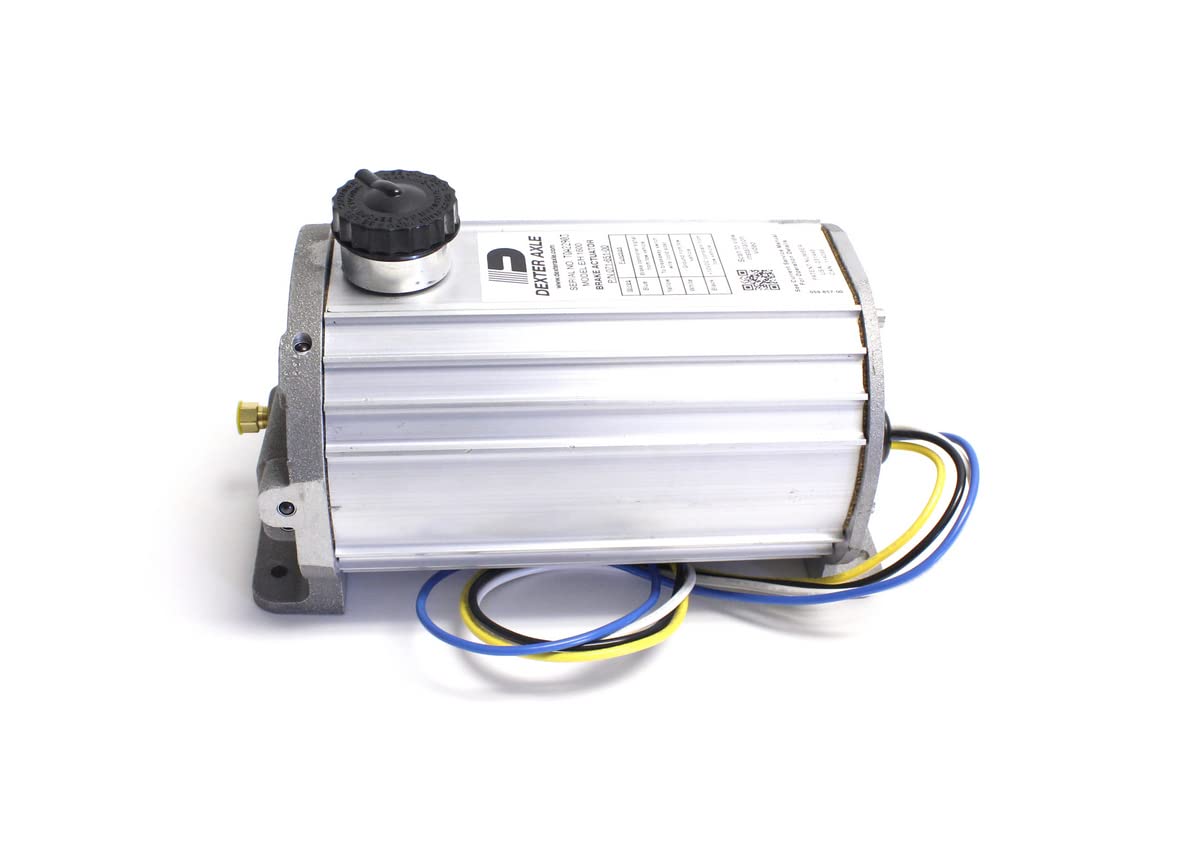

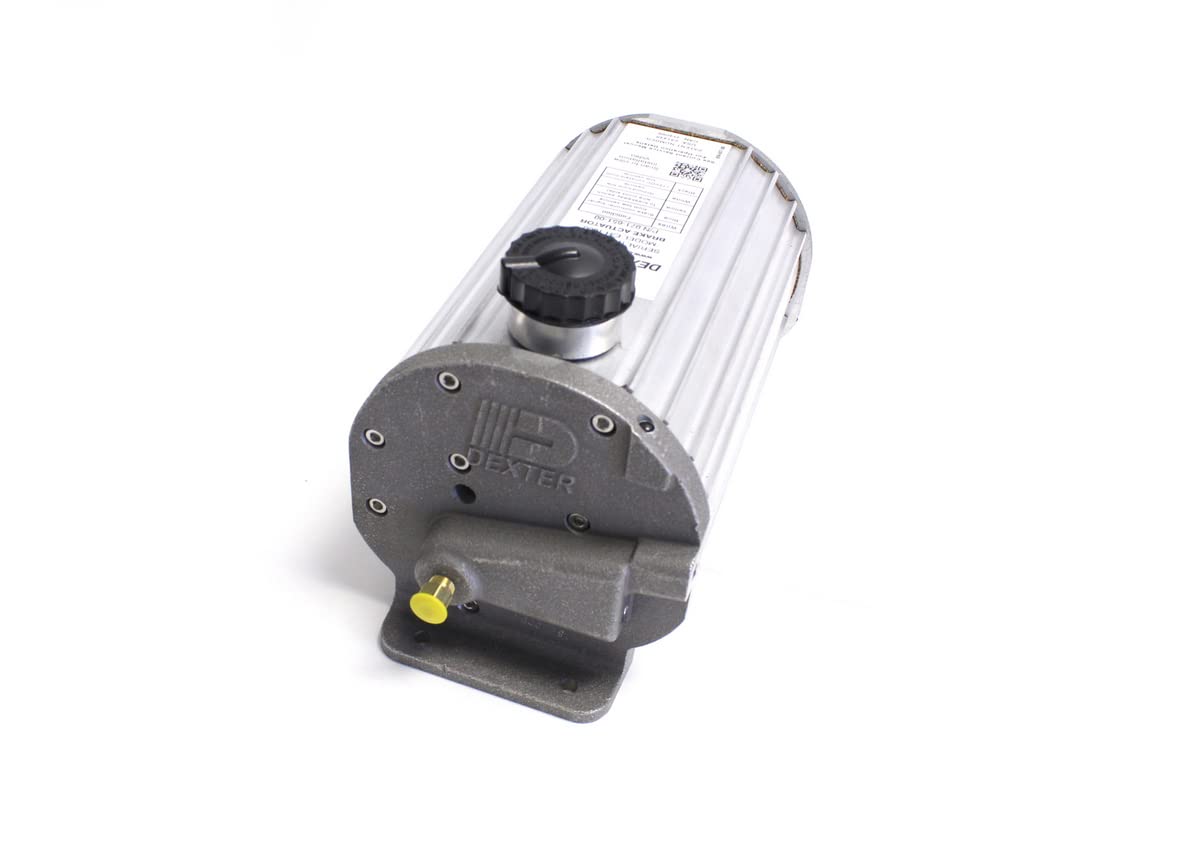

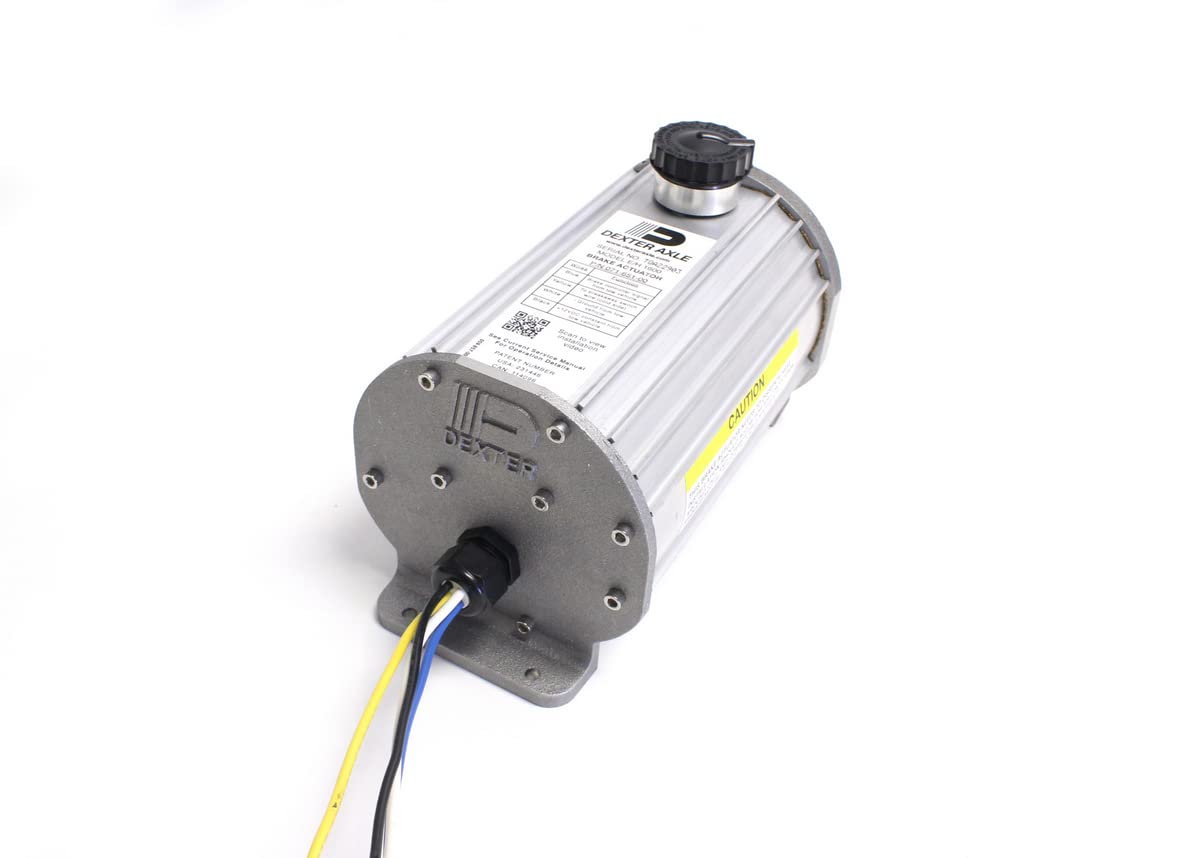

Specifications for DX Series DX1600 Model include a maximum pressure output of 1,600 psi for axles with disc brakes (K71-651-00).
A minimum 9amp/hour breakaway battery is required.

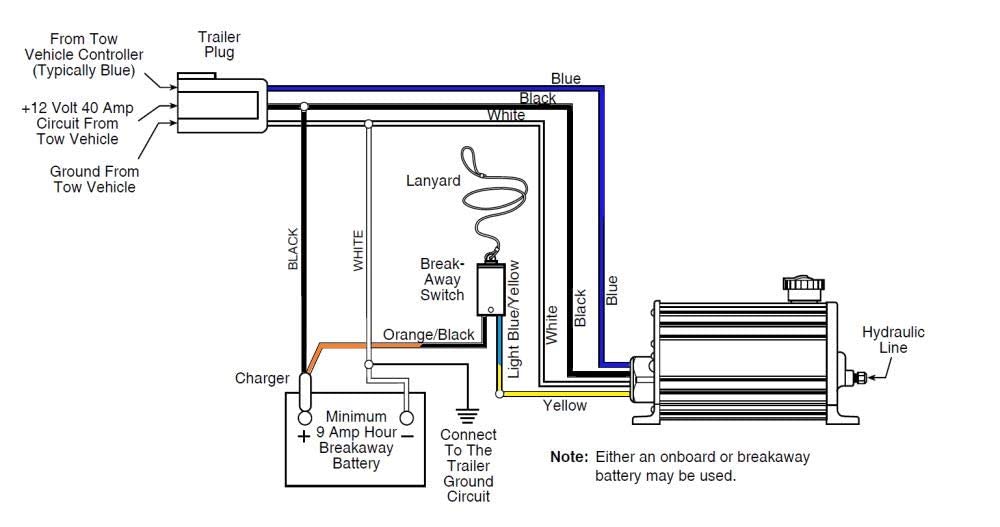

DOT 3 or 4 brake fluid is used with 12-volt DC operation and a 4-wire connection.
Dimensions are 10-1/2" long, 5-1/2" wide, and 7" high.
It meets or exceeds all DOT regulations and federal braking requirements.
Features of the DX Series include all stainless steel fasteners for superior corrosion resistance, sealed to protect the circuit board from water and elements.
The finned housing design helps dissipate heat more efficiently for long-lasting durability.
Enhanced wiring protection is incorporated to prevent possible damage to the unit if wired improperly.
Solid state electronics are included for improved performance and compatibility with most aftermarket and OEM integrated electric brake controllers on the market.
A large brake fluid reservoir and self-priming pump reduce the time required for brake bleeding while preventing the system from running dry during the process.
The large reservoir accommodates brake life on single tandem or triple axle applications.
A two-year limit warranty is provided.
The production environment is ISO 9001:2015 Certified.
