The 2015+ Ford F-150 Falcon Sport Leveling Shock Absorber System delivers stability and control, as well as ride quality and comfort both on and off-road.
These compact and affordable shocks are ideal for vehicles driven daily.
Zone Rate Tuning (ZRT) manipulates the factory linear-rate spring tuning to produce three distinct performance zones with a more exaggerated spring curve to tackle various driving conditions.
An internal negative-rate spring offsets the factory spring’s preload while in the Extension Zone.
This eliminates top out clunk and shock stress at full extension, while softening tire landing and reducing body roll on impact during aggressive driving.
The factory spring rate remains unaffected in Drive Zone for a comfortable and controlled ride.
A provided progressive microcellular bump stop effectively retunes the spring rate while in Compression Zone to reduce bottoming and body roll during aggressive driving.
Traditional velocity sensitive shock absorbers react quickly during low speed driving causing excessive “head toss” on rough terrain – or even driveways.
Conventional damping then firms up during faster speeds resulting in a jarring ride.
Falcon’s proprietary Volume Optimized Damping (VOD) features a digressive linear valve that produces quicker ramp up for increased damping volume, which improves vehicle feedback and control during low-speed driving.
VOD also improves the shock absorber’s ability to reduce bottoming out at full compression during faster speeds or over uneven terrain.

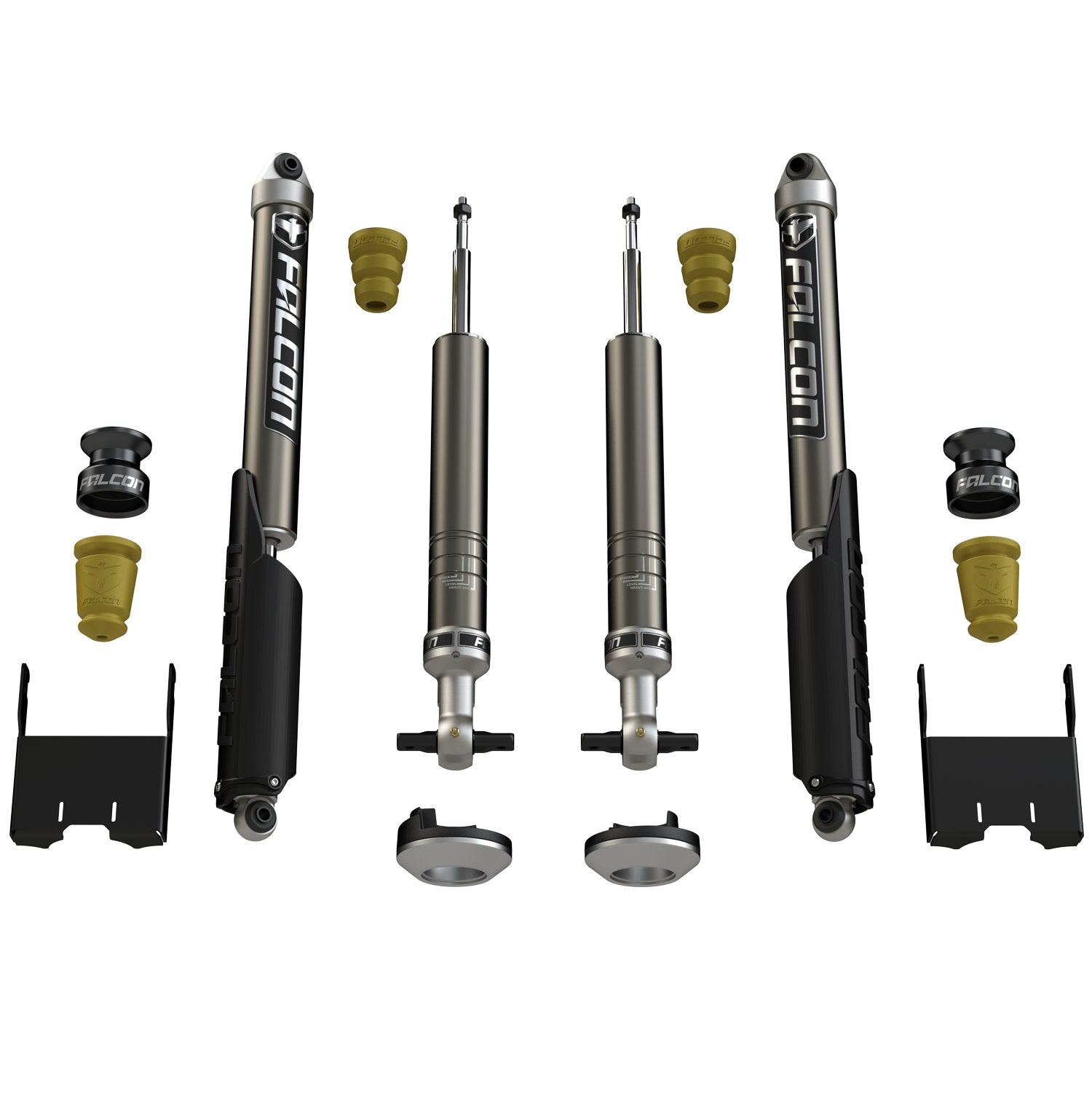

Fits: 2015+ Ford F-150 except Raptor Leveling Height: Front: 0-2.25” Rear: Stock Includes Front Components: Leveling monotube shock absorbers Progressive microcellular “foam” bump stops Billet coil spring carrier Injection molded squeak-free spring isolator All necessary hardware Rear Components: Monotube shock absorbers Progressive microcellular “foam” bump stops Bump stop cups Bump stop landing pads Roost guards All necessary hardware.
