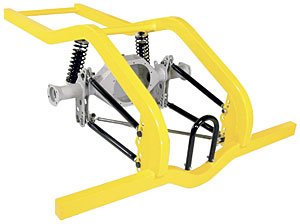

4-Link Frame Kits 24" Wide 3-Way Adjustable Shock Coil Spring Mount 100 lbs./in.
Spring Rate Frame Kit, 4 Link, 24 Inch, Coil Spring Mount, 1050-1150 lbs Coil Springs, Made to Order 4-Link Frame Kit, 24" Width, 3-Way Adjustable Shock, 100 lb Spring Rate.
The Frame Kit comes with the following items; • 4-Link Frame Rails - Engineered profile clears suspension and axle components while accommodating low ride height and wide tires; Rugged 2" x 3" construction makes them strong without adding unnecessary weight • 2" x 3" crossmember - Mandrel formed for uniform profile; 3.5" drop center makes it adaptable to virtually any chassis design; 60" wide • Diagonal Link - 3/4" O.D.
DOM steel with 1/2" Spherical Rod Ends for easy, on-chassis adjustment • Driveshaft Loop - 1-1/8" O.D.
mandrel formed Round Tube contains driveshaft during U-joint failure • Shock Crossmember - Tubular design provides high strength with light weight • Upper & Lower Shock Mounts - Offers 6" of ride height adjustment • 4-Link Kit, Part No.
C2017 - Provides enhanced adjustability over a ladder bar suspension for increased performance • 3-Way Adjustable Shocks, Part No.
C2051 - 3-Way Adjustable Shocks with lower shock mounts that have 6" of adjustments in ½" increments • Springs - Matched to your specific rear vehicle weight.
2.5" I.D x 12" long, premium-grade chrome silicone steel, powder coated for durability.
