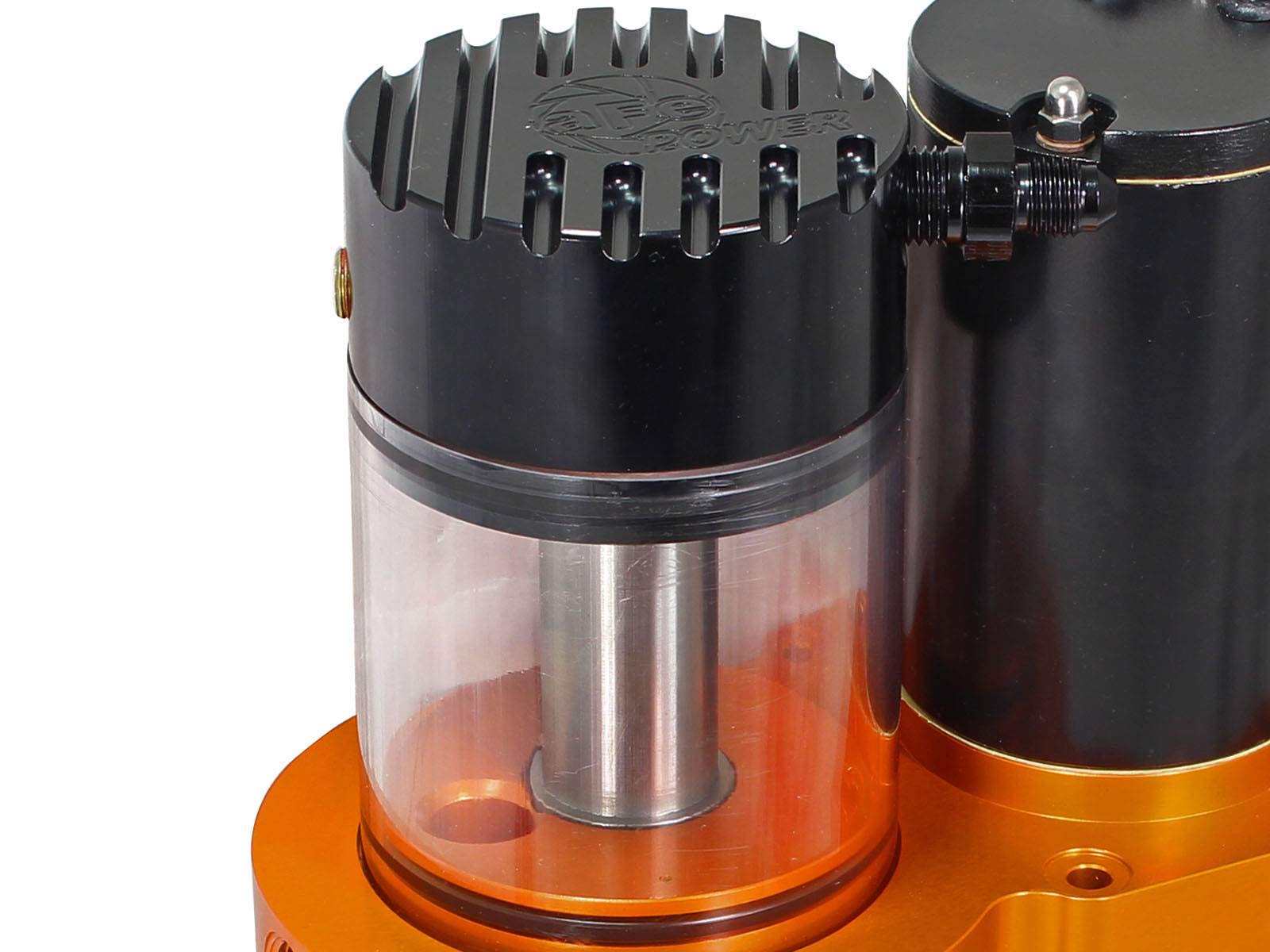

Clear High-Impact Polycarbonate Sight Glass: Visual inspection of fuel is allowed.

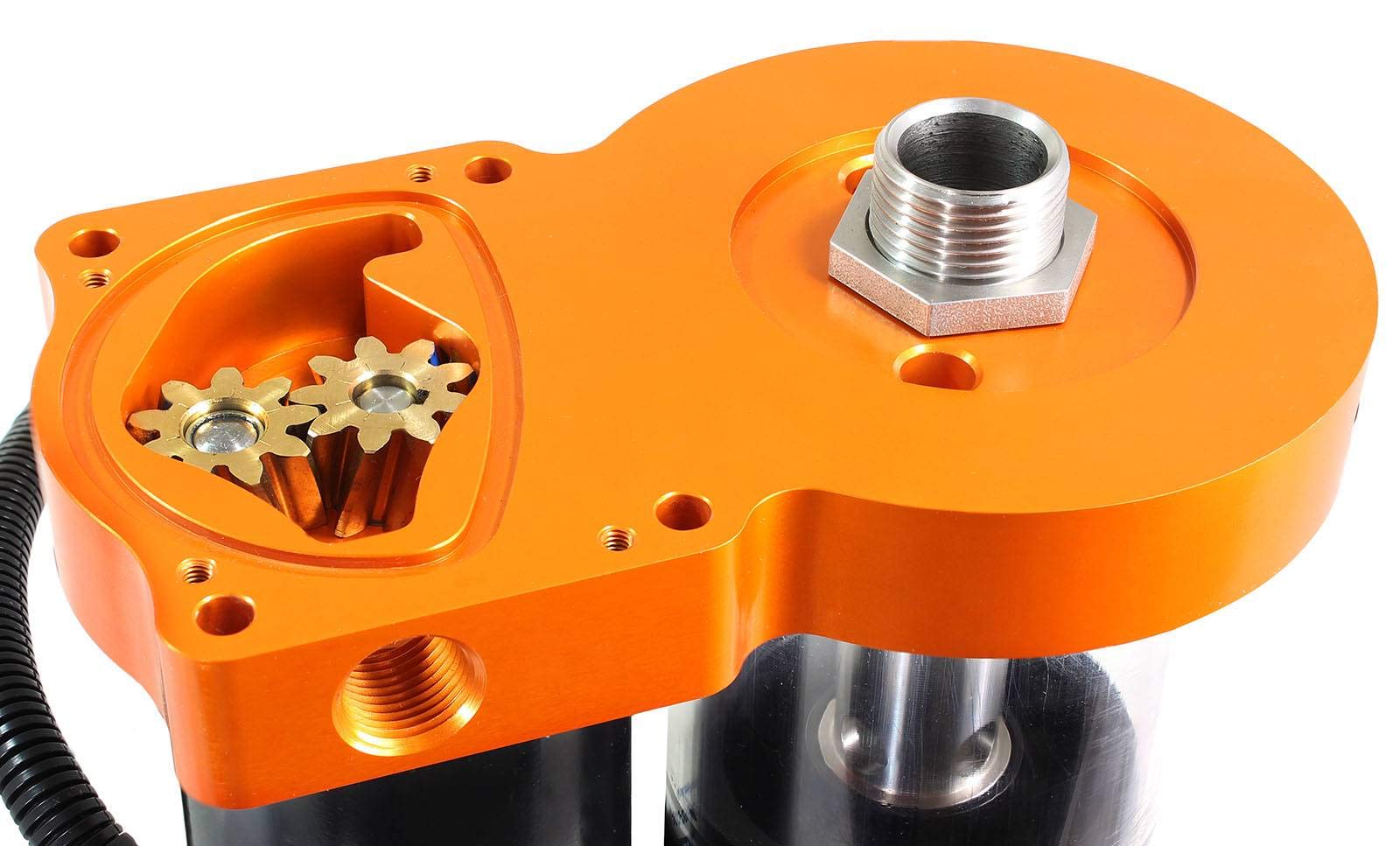

Helical Bronze Spur Gears: More forgiving of contaminants than steel gears are bronze gears.
The helical spur gear design runs quieter than gears that are straight cut.
Billet 6061-T6 Aluminum Manifold: Concerns with porosity in cast aluminum are eliminated.
'Marine Grade' Motor: Protected against powerful water jets and dust intrusion.

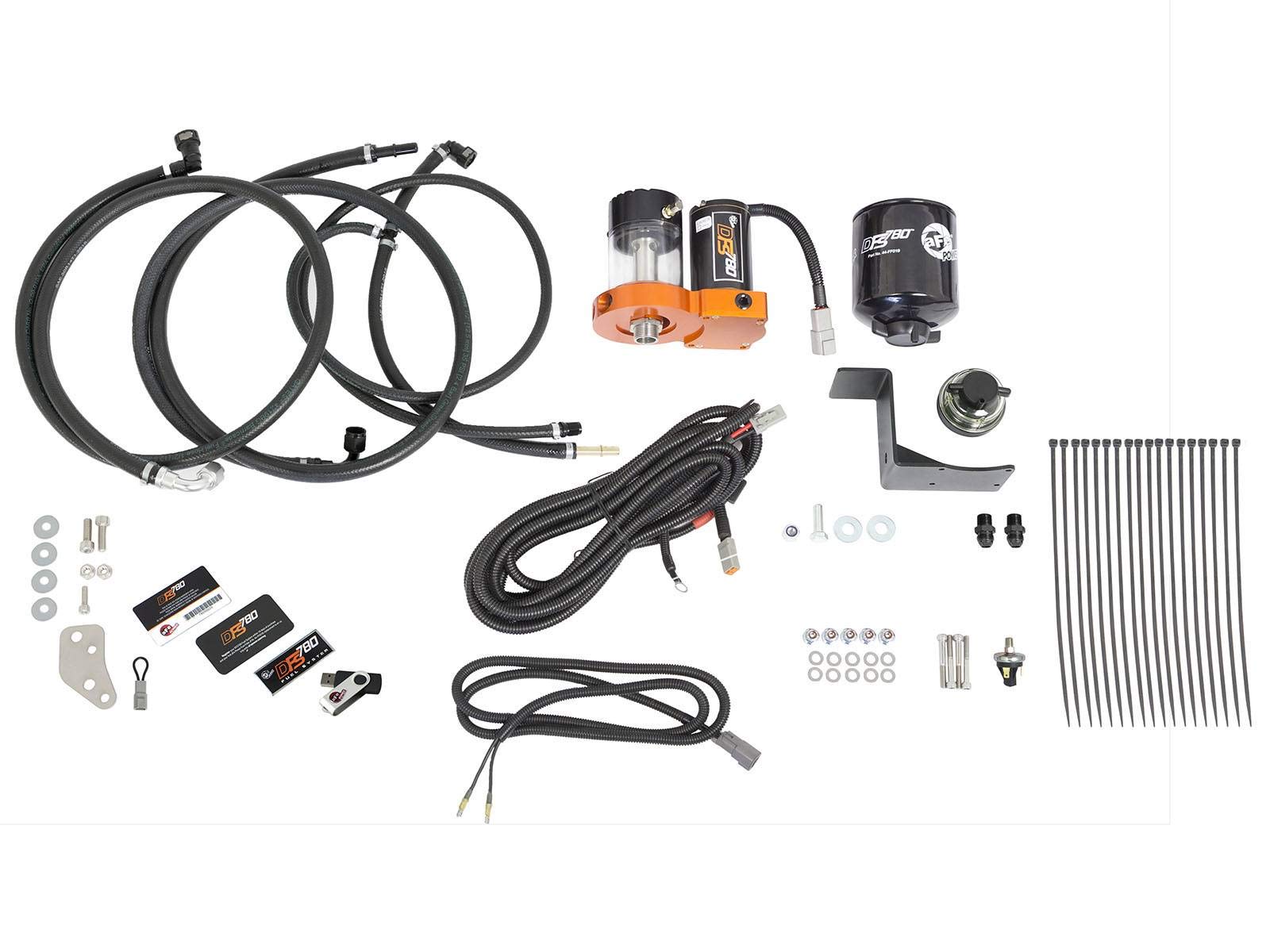

Plug & Play Installation: The supplied harness attaches directly to the battery and utilizes Deutsch weather-proof connectors.

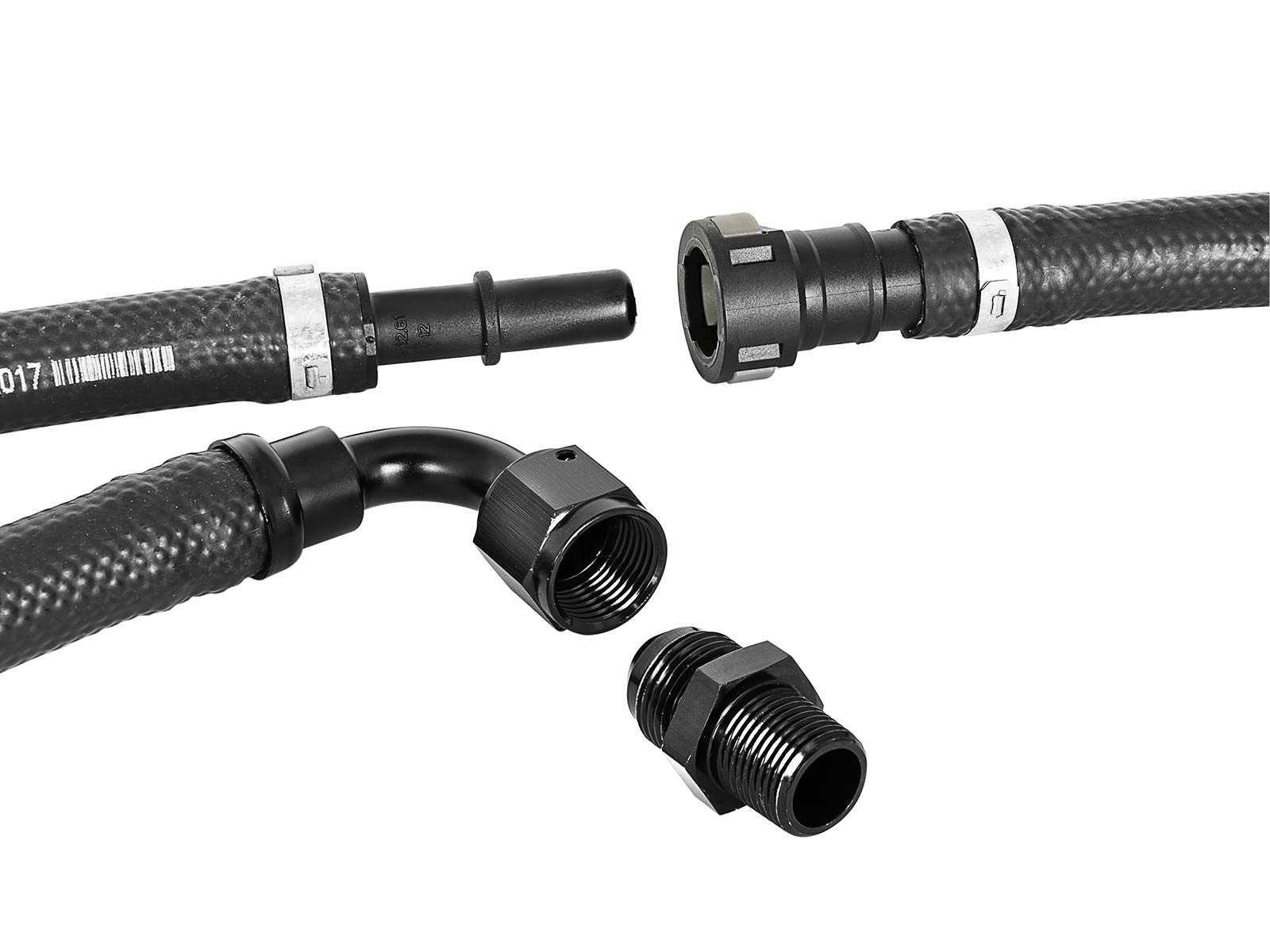

No modifications or cutting of the stock fuel lines are required.
The vehicle can easily be returned to stock.
Relay Controlled: Your ignition powers the DFS780, which can be run in parallel with the stock fuel transfer pump.
PEEK Bearing Wear Surfaces: The DFS780 spur gears ride on PEEK (Polyether Ether Ketone) bearing surfaces to reduce wear and noise.
Contoured CNC Machining Of Manifold Passages: Flow through the manifold is enhanced to reduce pressure drop due to restrictions in flow.
Direct Bolt-on Steel Mounting Bracket: The heavy-duty bracket mounts to the frame and utilizes an existing hole for securing.
Fuel Pressure Gauge Port: A 1/8" NPT port allows an external pressure gauge to be attached for monitoring fuel pressure.
O.E Quality Viton Seals: Compatible with biodiesel and diesel fuels.
Note: This system is not available for sale in California or for use on any vehicle registered with the California Department of Motor Vehicles and is not currently CARB exempt.
