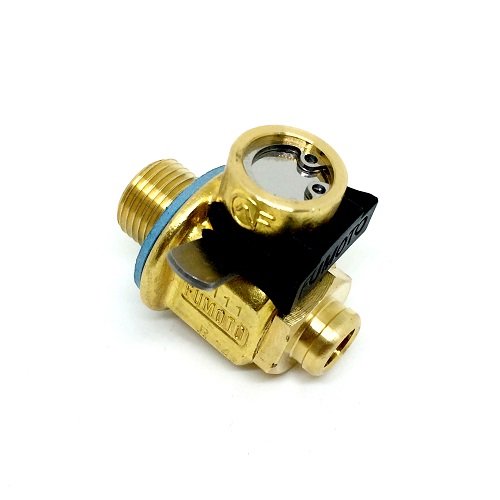

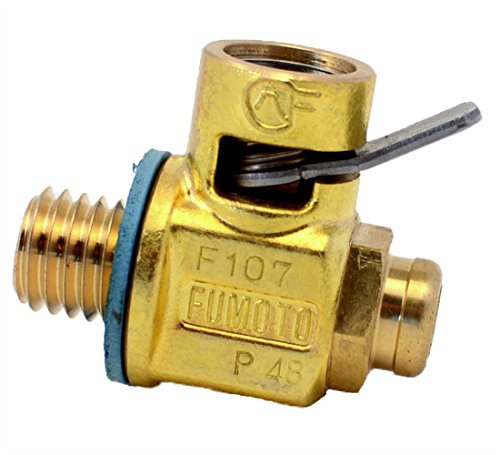

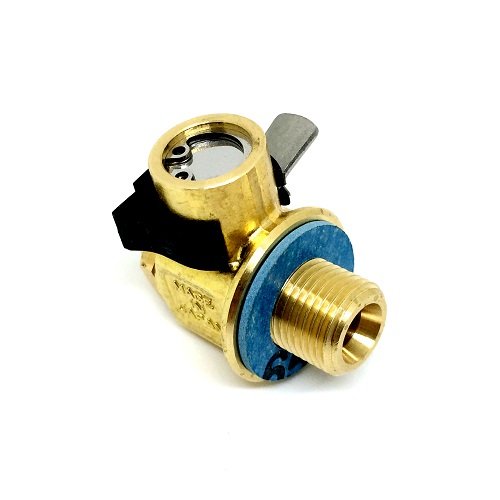

Incorporating the most compact ball valve from Fumoto, the S series valves are designed to fit light trucks, cars, vans, and select commercial engines.
The S series offers a short nipple of 5mm which allows for hose attachment for convenient draining.
Designed especially for general automotive users who are concerned about low ground clearance, S series valves are constructed of forged brass and stainless steel to exacting Japanese specifications, ensuring a lifetime of dependable and reliable service.

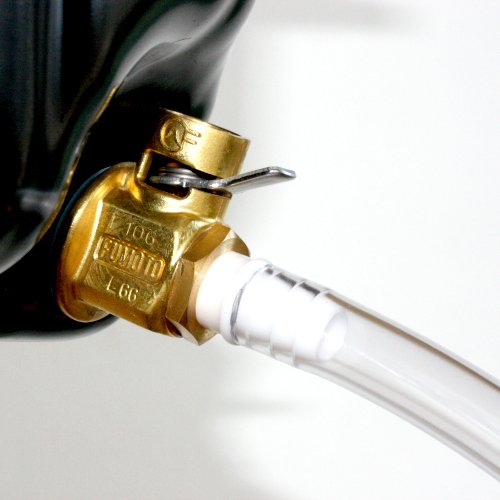

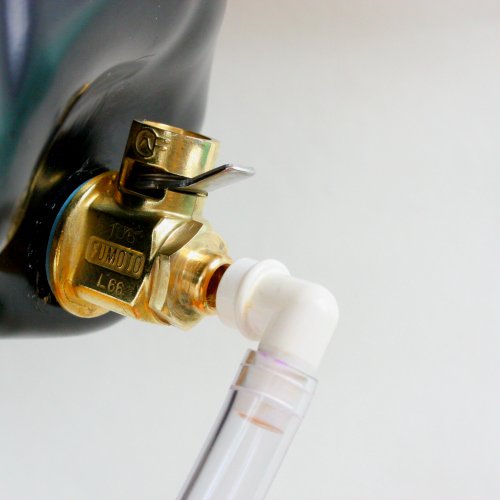

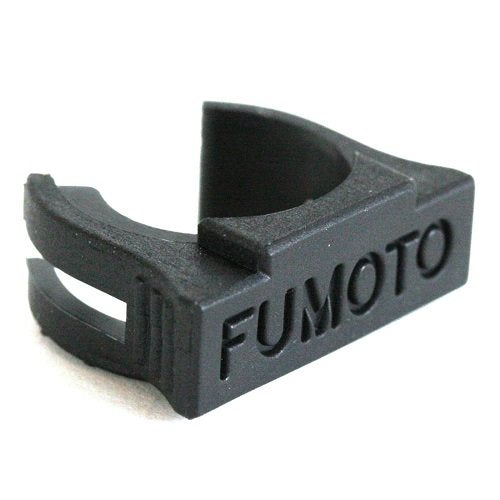

To use the S valve, simply attach a hose to the nipple or use the optional SH-10 plastic socket and snap it onto the valve nipple.
Specifications include Diameter: 12 mm, Thread Pitch: 1.75, Gasket: 12 mm, Nipple Dimension: 3/8" - 10 mm, Nipple Length: 1/5" - 5 mm, and Weight: 2.5 oz.

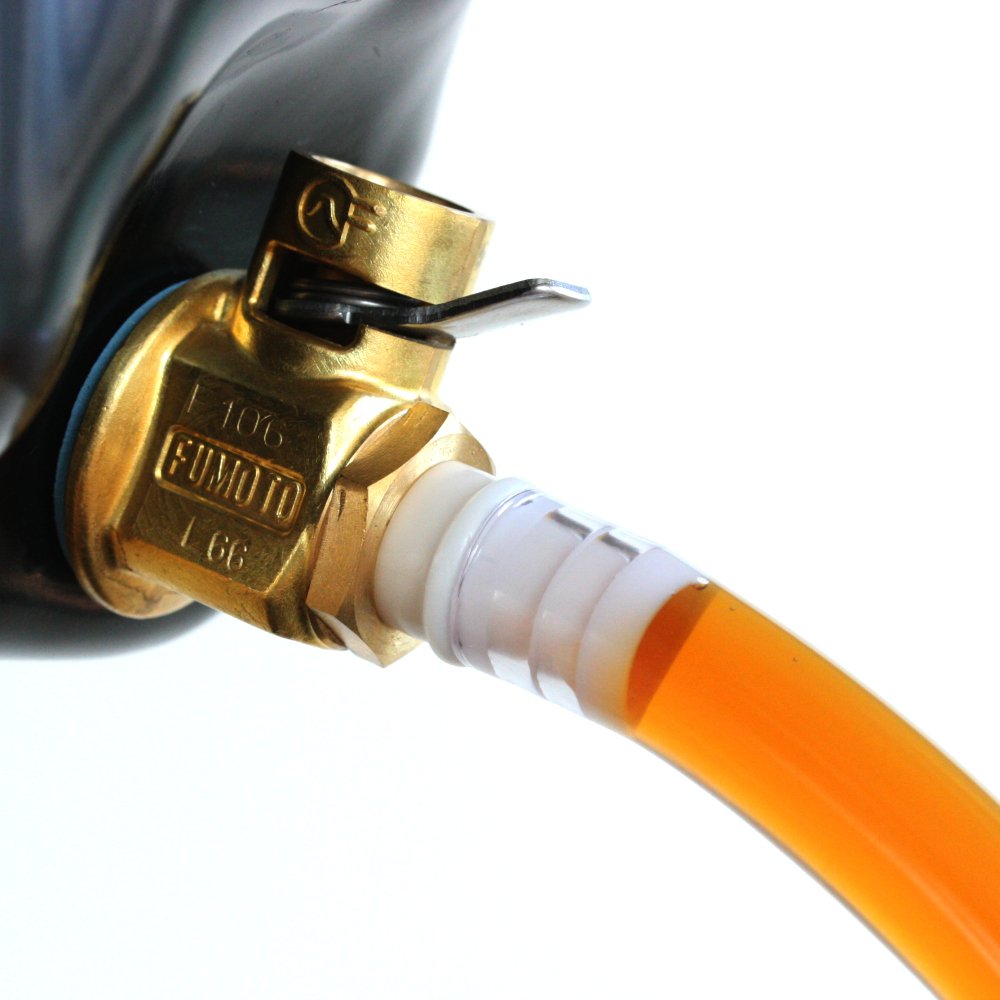

The Fumoto Engine Oil Drain's spring-assisted ball valve replaces your standard oil drain plug and makes oil changes cleaner, easier, and less time-consuming.
One Touch Operation allows for clean and mess-free oil changes.
Safely change your oil without contacting hot oil, eliminating stripped threads and frozen plugs.
Simple installation and operation reduce the time needed to complete an oil change.
Ideal for sampling analysis as a small amount of oil can be drawn without shutting off the engine.
