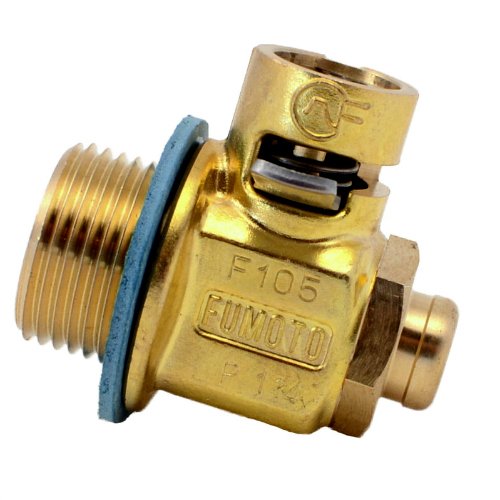

Incorporating the most compact ball valve from Fumoto, the S series valves are designed to fit cars, light trucks, vans, and select commercial engines.
The short 5mm nipple of the S series allows for hose attachment for convenient draining.
Designed especially for general automotive users who are concerned about low ground clearance, S series valves are constructed of forged brass and stainless steel to exacting Japanese specifications.
They are designed to provide a lifetime of dependable and reliable service.

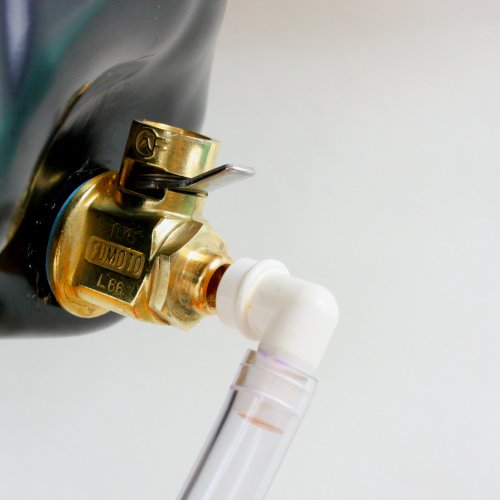

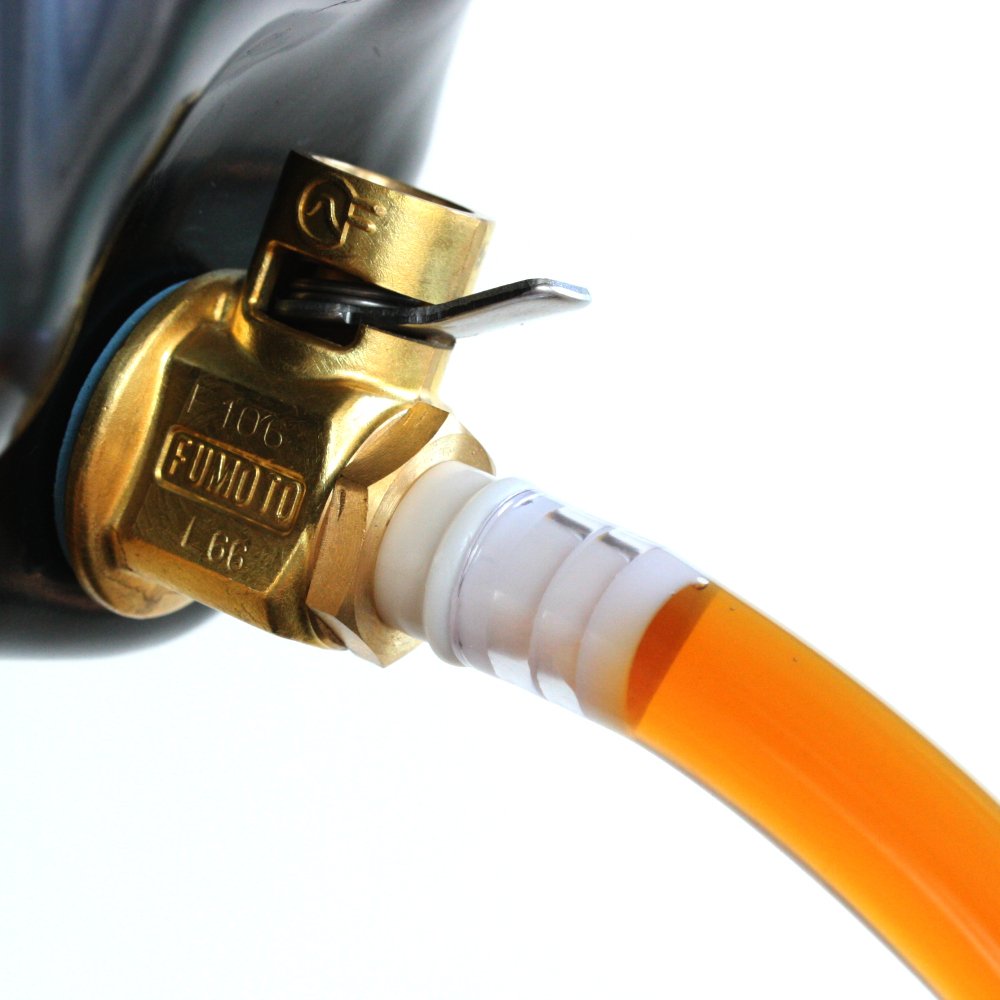

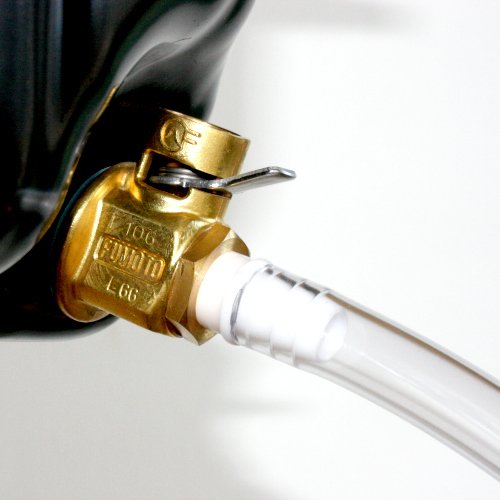

To use the S valve, simply attach a hose to the nipple or use the optional SH-10 plastic socket and snap it onto the valve nipple.
Specifications include Diameter: 20 mm, Thread Pitch: 1.5, Gasket: 20 mm, Nipple Dimension: 3/8" - 10 mm, Nipple Length: 1/5" - 5 mm, and Weight: 3 oz.
