Brand: Gates Corporation

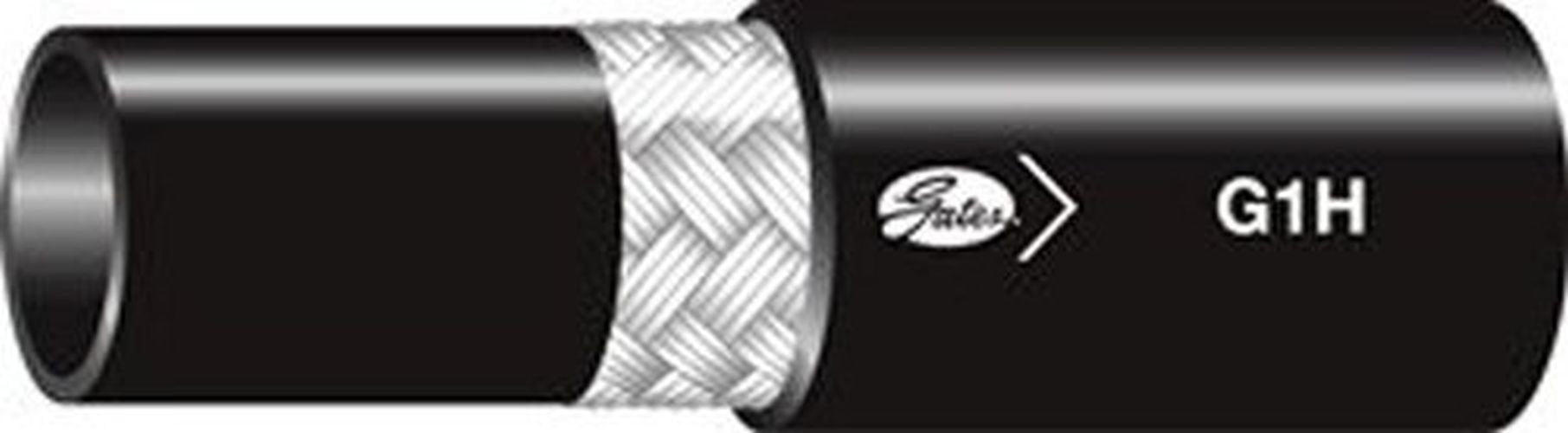

Gates G1H 4G1HXREEL High-Temperature 1-Wire Braid Hydraulic Hose, Meets SAE 100R1 Type AT, 1/4" ID X 440 ft. L, 2750 Working PSI
Gates 4G1HXREEL G1H high-temperature 1-wire braid hydraulic hose has a 1/4" ID and 440 ft. length.
Currently out of stock
No hidden fees — taxes included in the price & Free Shipping.
We accept major cards and digital wallets. Additional installment plans, when available, are offered by Shopify at checkout based on order eligibility.
Gates G1H 4G1HXREEL High-Temperature 1-Wire Braid Hydraulic Hose, Meets SAE 100R1 Type AT, 1/4" ID X 440 ft. L, 2750 Working PSI
This black G1H high-temperature 1-wire braid hydraulic hose from Gates has a 1/4" inside diameter and a length of 440 ft.
It has a maximum working pressure of 2,750 psi, meets Flame Resistance Acceptance Designation Mine Safety and Health Administration (MSHA) 2G specifications, and meets or exceeds Society of Automotive Engineers (SAE) 100R19 AT specifications.
Both the tube and cover are made of black, oil-resistant synthetic rubber.
A high-tensile steel wire braid provides reinforcement between the tube and cover.
Specifications Inside diameter 1/4" Outside diameter 0.53" Length 440 ft.
Temperature range -40 to +275 degrees F (-40 to +135 degrees C) constant and +300 degrees F (+149 degrees C) intermittent (up to 10% of operating time) Maximum working pressure 2,750 psi Minimum burst pressure 11,000 psi Minimum bend radius 4.0.
Key Features
Specifications
- Length
- 17.25 lb
- Width
- 14.0 lb
- Height
- 14.0 lb
- Weight
- 70.4 lb
- ASIN
- B002R7N0AG
- UPC
- 770075153283
- Ships From
- United States
- Brand
- Gates Corporation
Frequently Asked Questions
About Gates G1H 4G1HXREEL High-Temperature 1-Wire Braid Hydraulic Hose, Meets SAE 100R1 Type AT, 1/4" ID X 440 ft. L, 2750 Working PSI
01 What is the inside diameter of the hose?
The inside diameter of the hose is 1/4".
02 What is the maximum working pressure of the hose?
The maximum working pressure of the hose is 2,750 psi.
03 What materials are used for the tube and cover?
The tube and cover are both made of black, oil-resistant synthetic rubber.
04 What is the ASIN for this product?
The ASIN for this product is B002R7N0AG.
05 What is the UPC / barcode for this product?
The UPC/barcode for this product is 770075153283.
06 Where does this ship from?
Orders ship from our fulfillment center in Dover, Delaware, USA.
07 How many days will it take to arrive?
Orders ship within 1-2 business days and typically arrive within 4-5 business days via free standard shipping -- usually by Sep 11.
08 Does this product accept returns?
Yes -- this item can be returned within 15 days of delivery for a free return by mail. See our return policy for full details.
