Gates G1H 8G1HXREEL High-Temperature 1-Wire Braid Hydraulic Hose, Meets SAE 100R1 Type AT, 1/2" ID X 330 ft. L, 2000 Working PSI

$18.43 USD

✓ No hidden fees — taxes included in the price & Free Shipping.

✓
Get 5% OFF Today
Use this coupon at checkout.
TRY5
Brand : Gates Corporation
Gates 8G1HXREEL G1H high-temperature 1-wire braid hydraulic hose has a 1/2" inside diameter and 330 ft. length.
Out of stock
Quantity :
Top Brands. Best Prices. Fast Shipping.

Discover quality parts and accessories for every adventure

Shop now before stocks run out — smart shoppers move fast!

Explore Now

Product Comparison We Made Easy For You

Gates G1H 8G1HXREEL High-Temperature 1-Wire Braid Hydraulic Hose, Meets SAE 100R1 Type AT, 1/2" ID X 330 ft. L, 2000 Working PSI
Gates G1H 8G1HXREEL High-Temperature 1-Wire Braid Hydraulic Hose, Meets SAE 100R1 Type AT, 1/2" ID X 330 ft. L, 2000 Working PSI
View Detail
Type
Air Tool Parts & Accessories
Title
Gates G1H 8G1HXREEL High-Temperature 1-Wire Braid Hydraulic Hose, Meets SAE 100R1 Type AT, 1/2" ID X 330 ft. L, 2000 Working PSI
Price
$18.43 USD
Vendor
Gates Corporation
Description

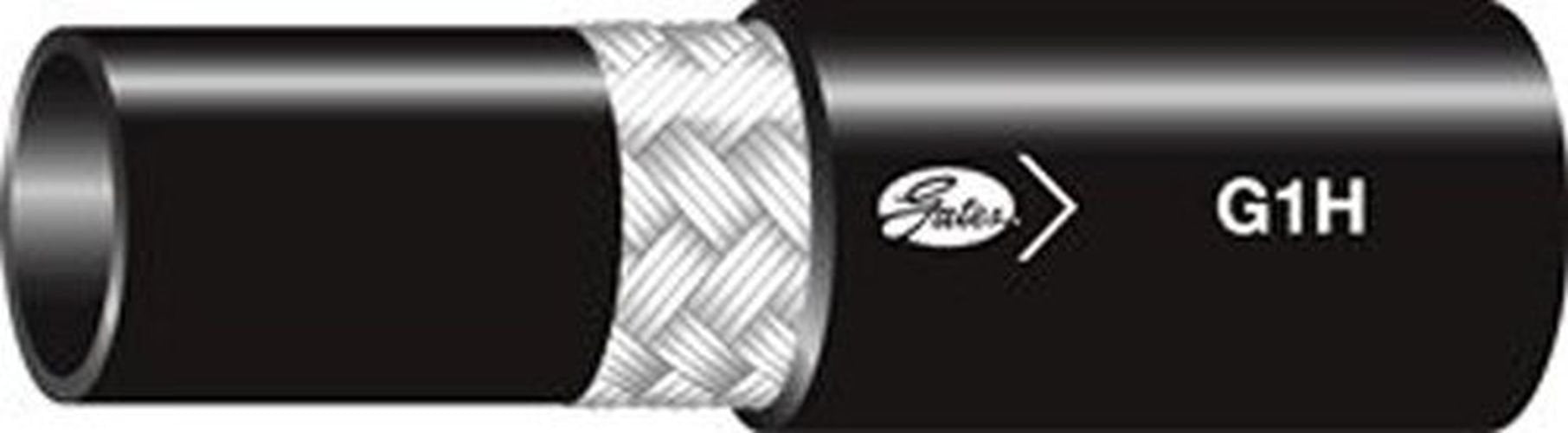

This black G1H high-temperature 1-wire braid hydraulic hose from Gates has a 1/2" inside diameter and a length of 330 ft.It has a maximum working pressure of 2,000 psi, meets Flame Resistance Acceptance Designation Mine Safety and Health Administration (MSHA) 2G specifications, and meets or exceeds Society of Automotive Engineers (SAE) 100R19 AT specifications.Both the tube and cover are made of black, oil-resistant synthetic rubber.Reinforcement is provided by a high-tensile steel wire braid between the tube and cover.Specifications Inside diameter 1/2" Outside diameter 0.80" Length 330 ft.Temperature range -40 to +275 degrees F (-40 to +135 degrees C) constant and +300 degrees F (+149 degrees C) intermittent (up to 10% of operating time) Maximum working pressure 2,000 psi Minimum burst pressure 8,000 psi Minimum bend radius 7.0.

More about this item : Gates G1H 8G1HXREEL High-Temperature 1-Wire Braid Hydraulic Hose, Meets SAE 100R1 Type AT, 1/2" ID X 330 ft. L, 2000 Working PSI

This black G1H high-temperature 1-wire braid hydraulic hose from Gates has a 1/2" inside diameter and a length of 330 ft.

It has a maximum working pressure of 2,000 psi, meets Flame Resistance Acceptance Designation Mine Safety and Health Administration (MSHA) 2G specifications, and meets or exceeds Society of Automotive Engineers (SAE) 100R19 AT specifications.

Both the tube and cover are made of black, oil-resistant synthetic rubber.

Reinforcement is provided by a high-tensile steel wire braid between the tube and cover.

Specifications Inside diameter 1/2" Outside diameter 0.80" Length 330 ft.

Temperature range -40 to +275 degrees F (-40 to +135 degrees C) constant and +300 degrees F (+149 degrees C) intermittent (up to 10% of operating time) Maximum working pressure 2,000 psi Minimum burst pressure 8,000 psi Minimum bend radius 7.0.

Gates G1H 8G1HXREEL High-Temperature 1-Wire Braid Hydraulic Hose, Meets SAE 100R1 Type AT, 1/2" ID X 330 ft. L, 2000 Working PSI
Key Features
  • High-temperature hydraulic hose with a maximum working pressure of 2,000 psi meets or exceeds SAE 100R1 Type AT
  • Both tube and cover are made of black, oil-resistant synthetic rubber
  • Reinforcement is provided by high-tensile steel wire braid
  • ID measures 1/2"; length is 330 ft.
  • Temperature range is from -40 to +275 degrees F constant and +300 degrees F intermittent
  • Minimum burst pressure is 8,000 psi
Technical Specifications
  • Length : 18.0 lb
  • Width : 18.0 lb
  • Height : 17.5 lb
  • Weight : 99.0 lb
Product Identifiers
  • ASIN B002R7QV7K
  • UPC: 770075153306
Shipping Information
  • Ships From : United States
  • Brand : Gates Corporation

Frequently Asked Questions About : Gates G1H 8G1HXREEL High-Temperature 1-Wire Braid Hydraulic Hose, Meets SAE 100R1 Type AT, 1/2" ID X 330 ft. L, 2000 Working PSI

01 What is the inside diameter of the hose?

The inside diameter of the hose is 1/2".

02 What is the length of the hydraulic hose?

The length of the hydraulic hose is 330 ft.

03 What is the maximum working pressure of the hose?

The maximum working pressure of the hose is 2,000 psi.
