■Features Uses a compressor housing and turbo housing based on the GTIII-RS, which is perfect for vehicles in the 2.0L class.
When combined with a normal engine, it exhibits approximately 240 kW (326 ps).
*Our internal data Uses high capacity injectors.
The exhaust manifold is a 4-in-1 type.
The flexible pipe part allows vibration to escape, and the spiral tube is molded with high heat resistant materials.
The outer mesh is made of titanium material that is highly resistant to salt damage for durability.
In addition, the engine side flange part is designed to reduce exhaust resistance in various places, such as pipe welding from the inside.
The turbo side flange on the extension pipe is done by stepping the pipe insertion part to eliminate step differences in the pipe end.
It conforms to the shape of the bypass pipe to reduce exhaust resistance.
It is also equipped with a metal catalyzer that is essential to meet safety standards.
The intercooler has a core size capacity (300 x 270 x 100) and has been designed to reduce the intake temperature.
In addition, it uses an offset tank shape for use with an oil cooler kit.

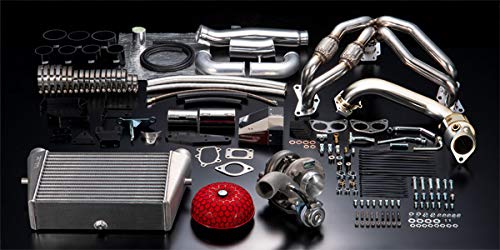

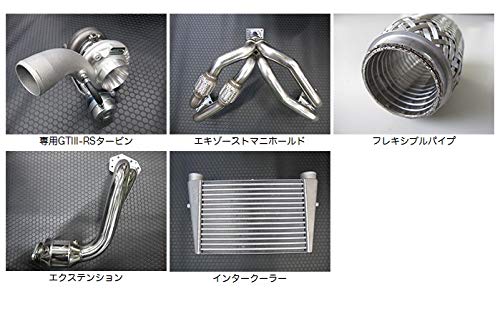

■Kit Contents Exclusive GTIII-RS turbocharger assembly (actuator), pre-positioned intercooler and piping, exhaust manifold, catalyst extension, power flow and suction pipe parts for oil and water piping.
Exclusive heat shielding cover, heat shielding sheet, and short parts such as gaskets, brackets, bolts, etc.
■Important information For M/T vehicles only.
Fuel systems such as injectors are required.
Control parts are not included with the kit.
Please purchase separately.
Also, setting is required to match the current vehicle.
Please wear a reinforced clutch as the torque properties may vary greatly and may cause slipping.
We strongly recommend installing an oil cooler to protect the engine.
A separate pressure sensor is required.
Vehicle modification is required when installing the kit.
Exhaust exhaust certificate will be acquired sequentially.
Please check the following manufacturers' website for your specific vehicle, engine model, year, and more.
https://www.hks-power.co.jp/product_db/turbo/db/20272 https://www.hks-power.co.jp/product_search/product/169
