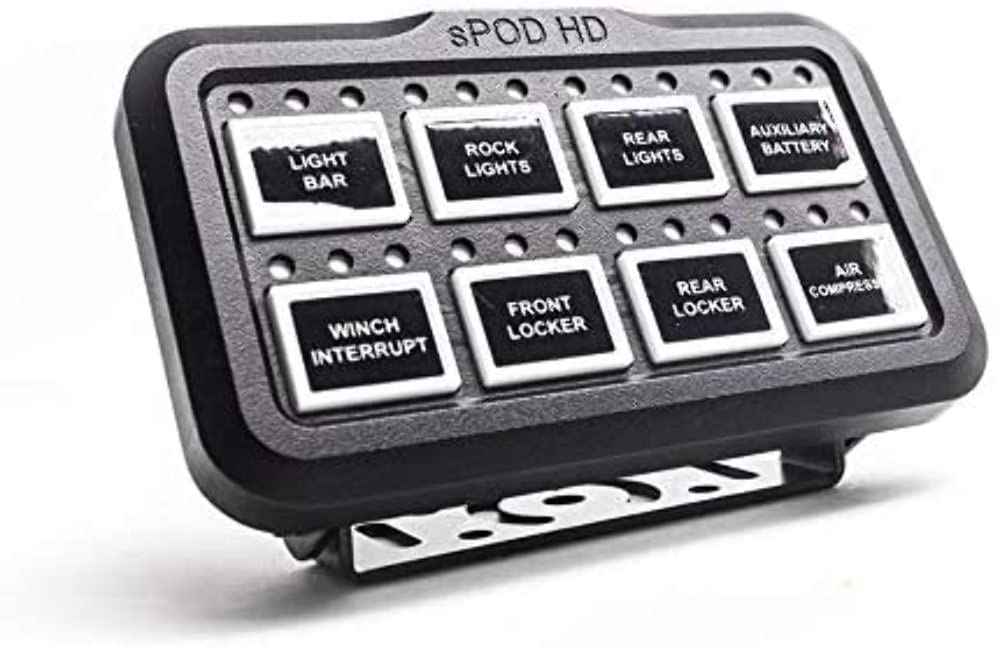

Add-On HD Switch Panel For 8 Circuit Systems.
Included: 10 Foot Ethernet control cable HD Switch Panel w/ mounting bracket (see picture) and necessary hardware (other universal mounting options are available).
Legends (sheet of 72 standard switch reusable labels) Installation Instructions.
HD Switch Panel Features: Encased in an aluminum billet machined housing, powdercoated black, utilizing tactile switches encapsulated in silicone.
Silicone Buttons with positive touch feedback.
The Bluetooth LE Panel is designed to withstand the harshest environments with all weather conditions taken into account.
Compact in size: 2-7/8W x 4-7/8L x 1/2 Thick (smaller than an iPhone).
Universal back with two pressed-in 1/4-20 studs x 5/8 inches long for flat mounting.
Standard universal articulating mount for a multitude of mounting options.
One standard RJ45 jack on back for communication cable between HD panel and the Source.
HD can be located up to 25 feet from the Source using standard CAT-6 Ethernet cable.
Built in Bluetooth LE allows you to program and control our system with iPhones, iPad, iPad Mini, sPOD HD app.
(free download).
Each switch programmable for dimming, flash, momentary, strobe, and switch linking (program any switch to be a master to control other switches).
All 8 switches are RGB backlit.
Adjustable timer to turn backlight off and a simple touch on any switch to reactivate.
Quickly turn backlight off by holding 2 designated buttons.
Backlight color and intensity can be changed to any color to match vehicle interior dash lighting.
Legends can be applied (comes standard with one sheet of 72 legends).
Each switch has 3 status lights: Red (left) = On, White (center) = Flash/Strobe active, Blue (right) = Active visual feedback when button is pushed.
Status lights can be dimmed.
Additional HD smart controller can be added for different locations.
HD can run in conjunction with our SE Touchscreen, Bluetooth and SE 8 Switch panel.
Bluetooth Requirements: Download sPOD Bantam app from iTunes or Google Play Store Bluetooth 4.0 compatible Compatible with Android devices iPhone 4s or newer, iPad 2 or newer, iPad mini iOS 7 or newer Existing sPOD system Access to iTunes App Store or Google Play Store.
Notes: The HD will go into Deep Sleep after 6 hours of inactivity (ie: no usage of the HD or not running the engine).
Once in deep sleep, the HD will turn off any accessories that were left on (including refrigerators!).
The primary reason for the Bluetooth integrated into the HD panel is for programming purposes, and not for remote control due to the limited range.
HD housings are precision machined billet aluminum which contribute to the distance limitations.
Ranges may vary from 5 feet up to 15 feet depending on location of the HD, the surroundings, phone type, phone cover and many other variables.
