Fits VVT Gen III Hemi Engines - 5.7L from 2009 and up & 6.4L from 2011 and up.
Rear-Sump Design Fits Most Trucks - Black Finish.
The factory oil pans on these engines usually do not fit and hang too low for your swap.

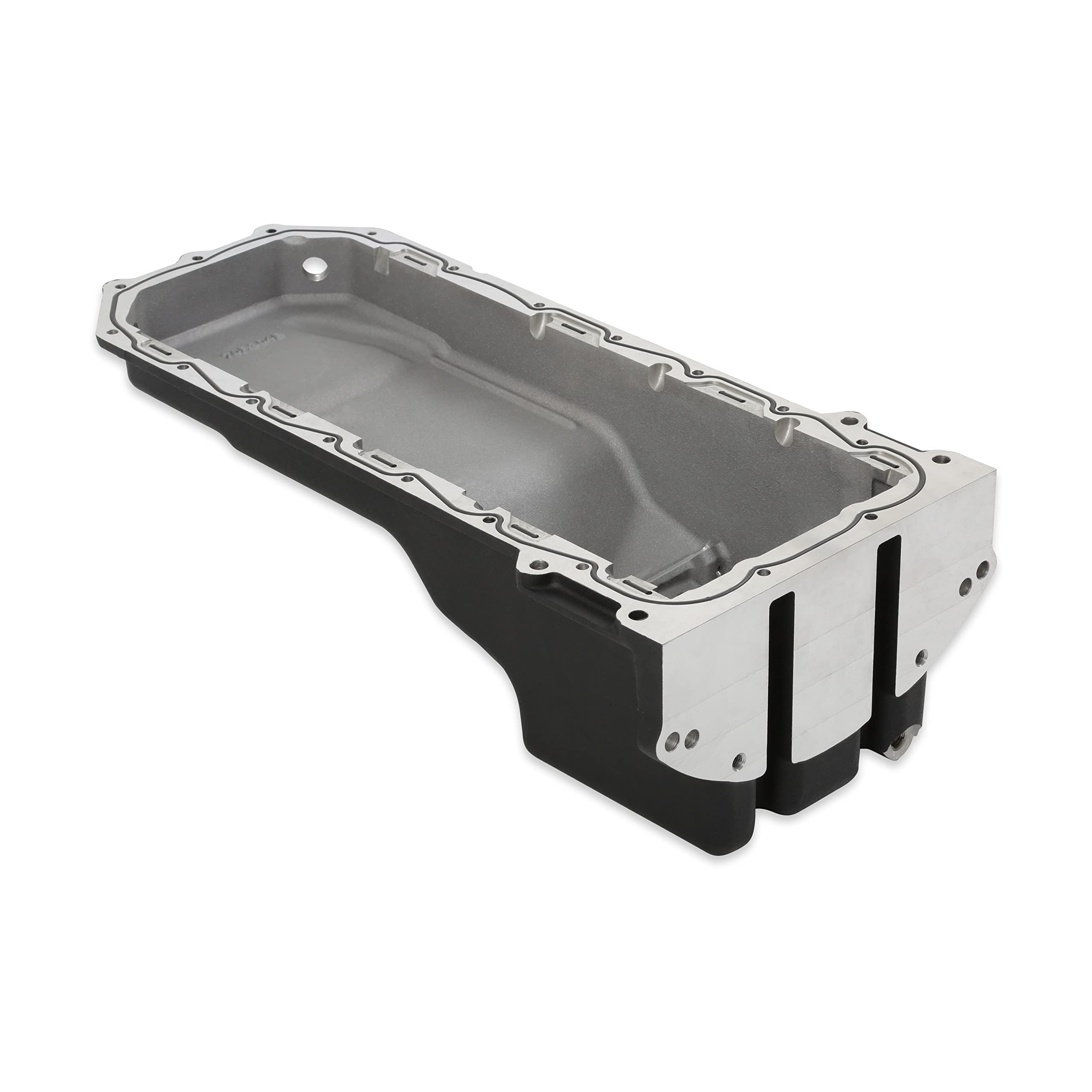

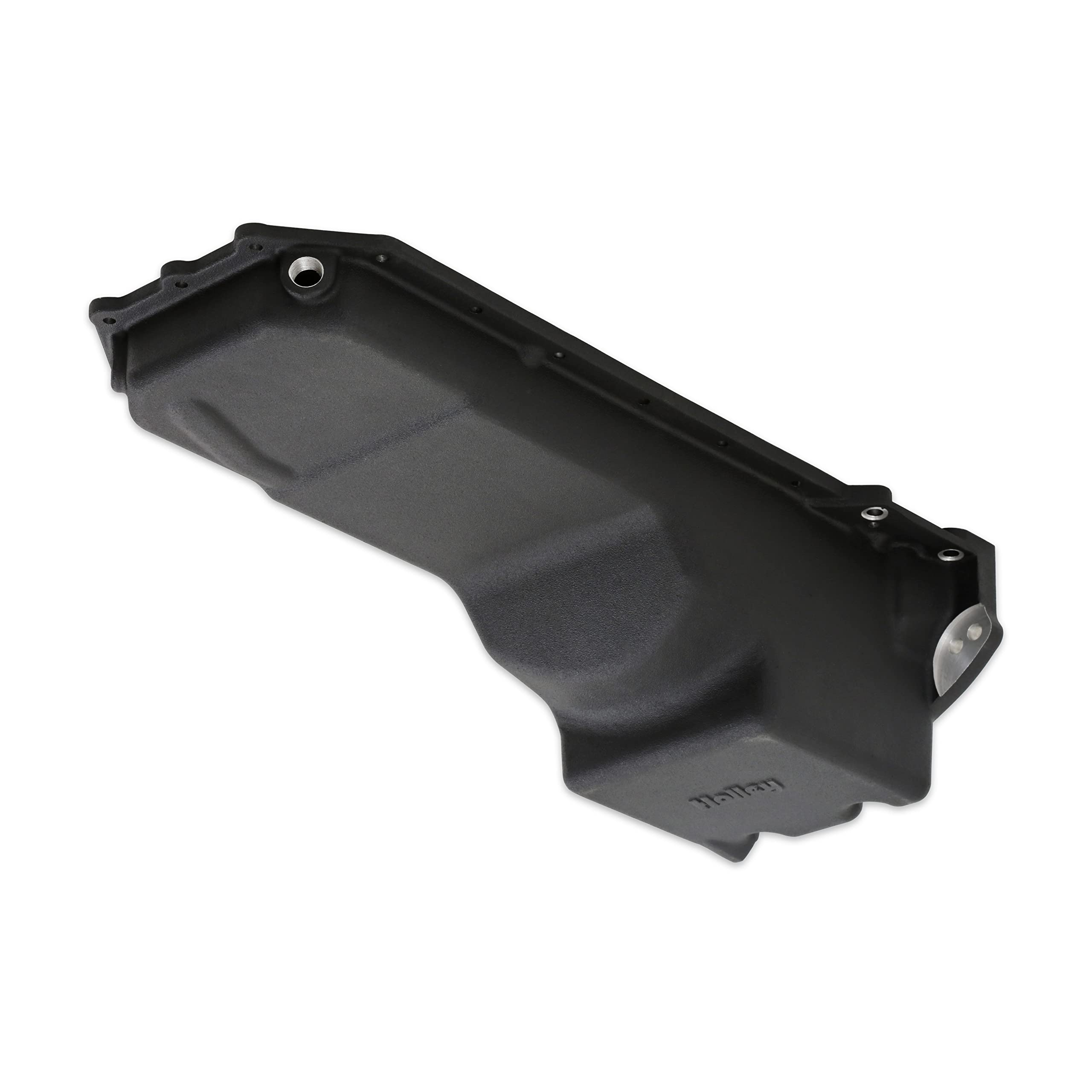

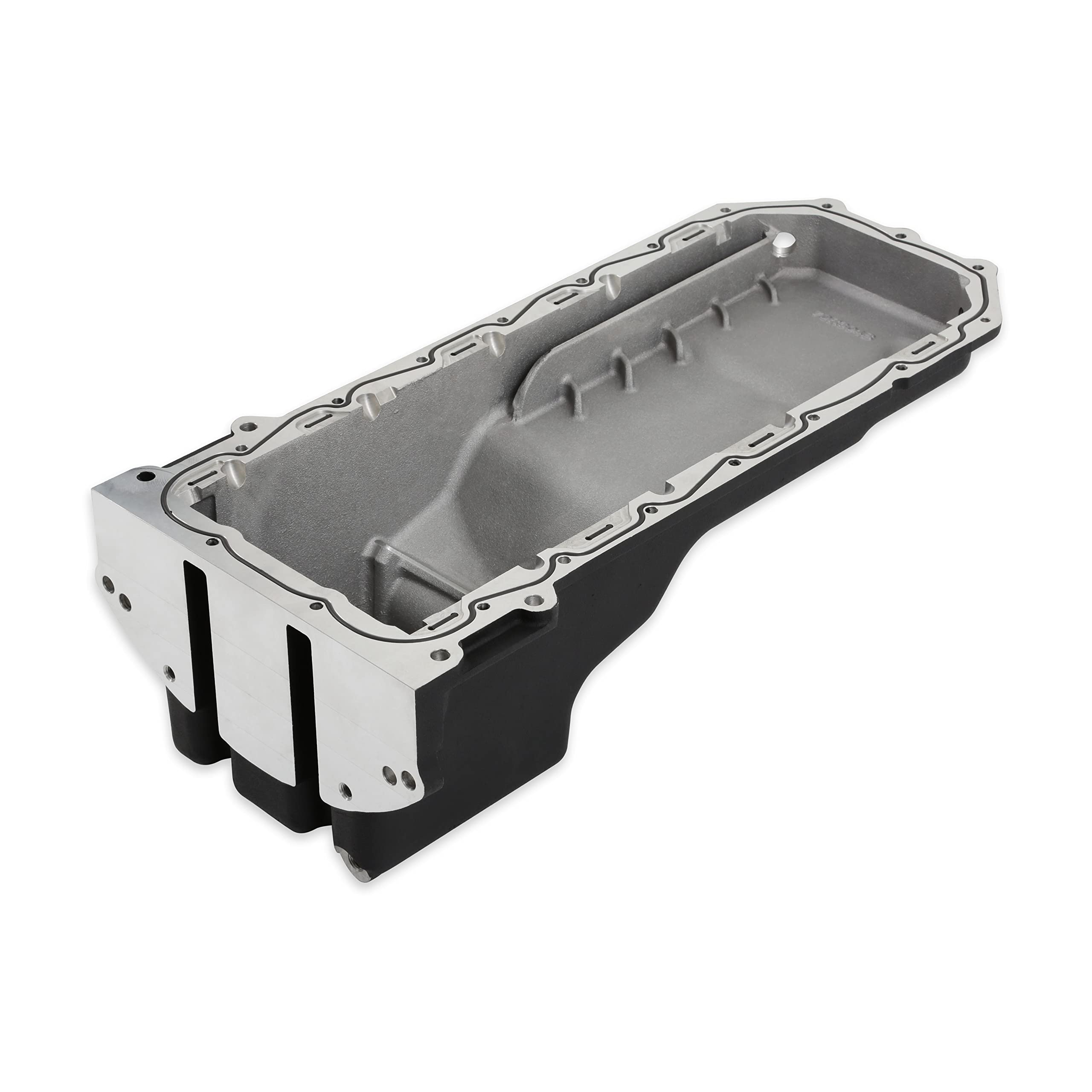

These new cast aluminum oil pans (Patent Pending) fit 1972-1993 Dodge D100/D150/W100/W150, 1987-2004 Dodge Dakota, 1974-1993 Ramcharger, and 1974-1981 Trailduster.

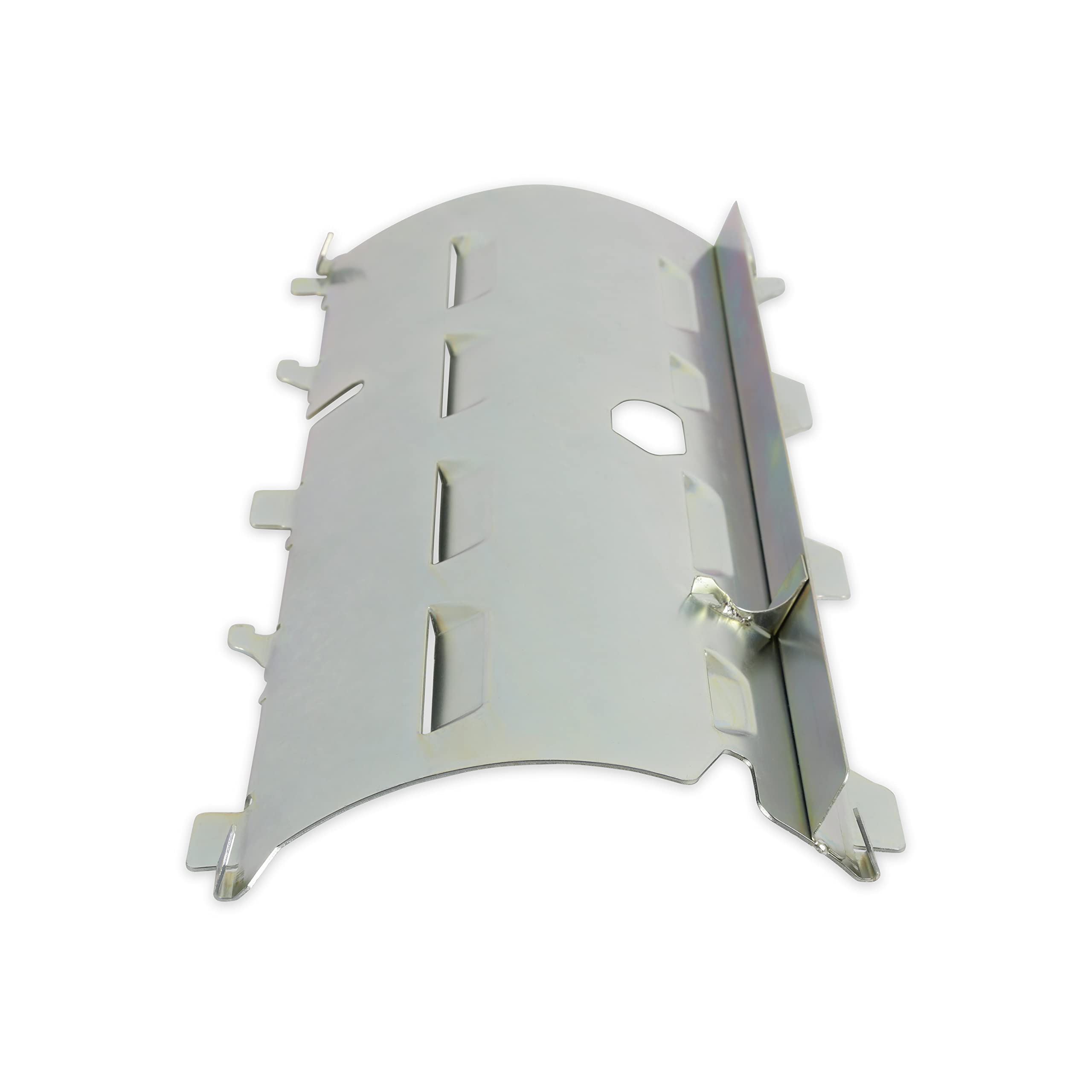

The cast aluminum construction and integrated windage tray on the oil pans combined with o-ring sealing provide an attractive leak-free solution for your engine swap.

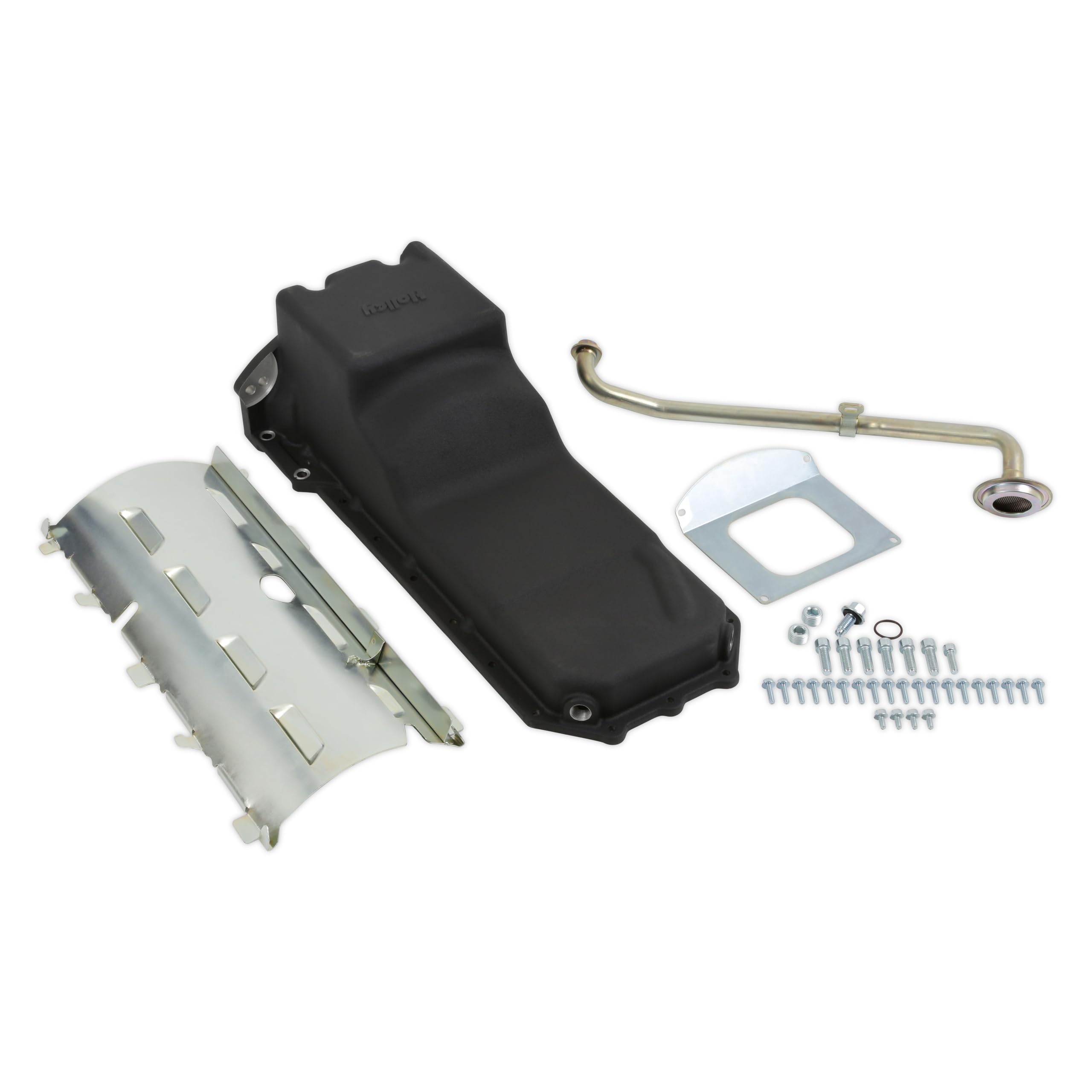

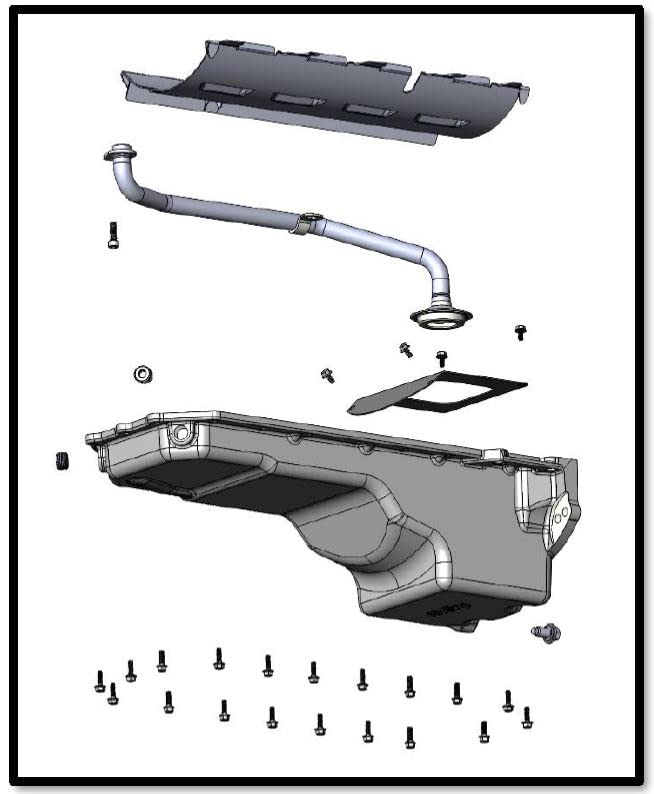

Complete oil pan kit that includes all the parts needed for installation (i.e., oil pan, pickup assembly, o-ring seal, windage tray, baffling, and mounting bolts).

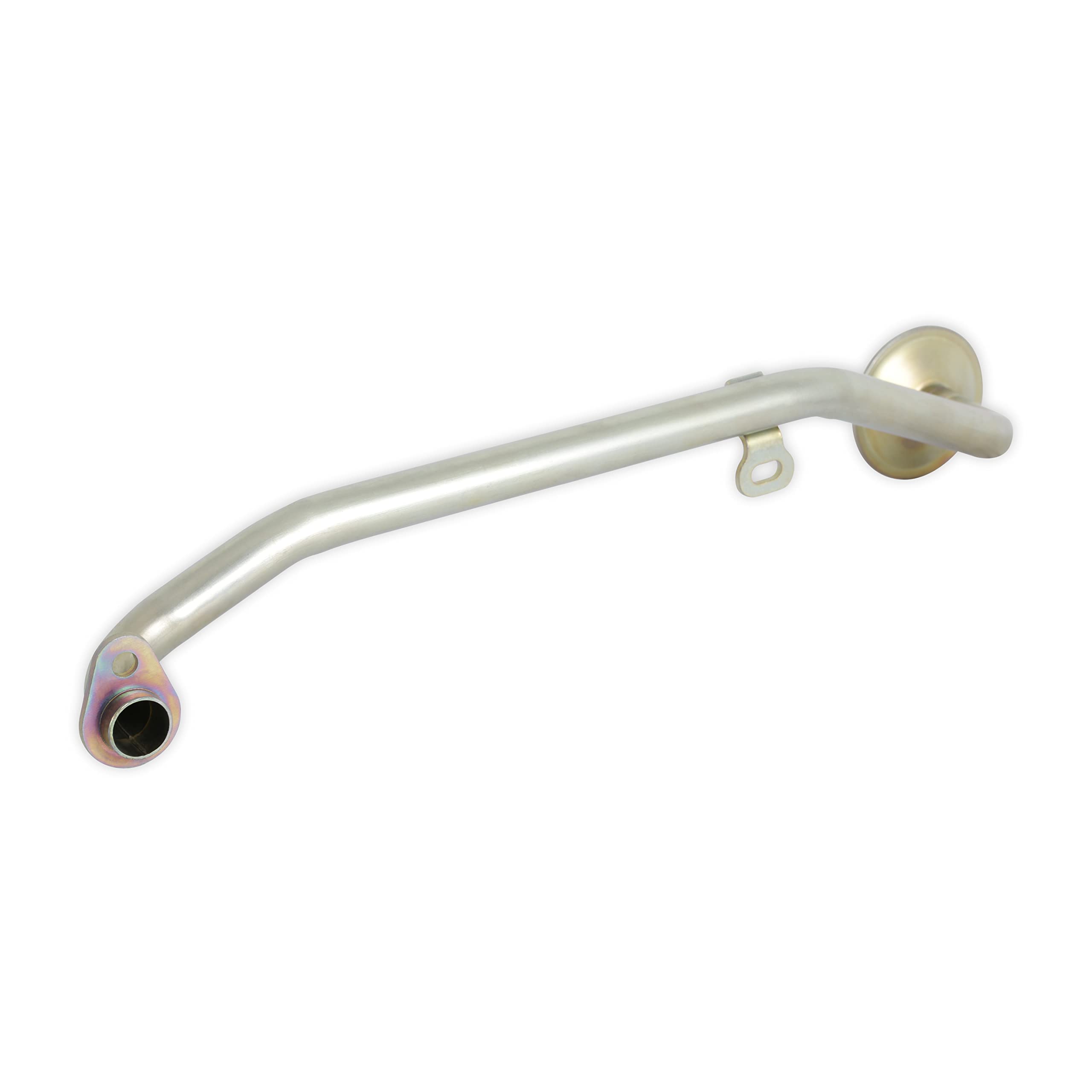

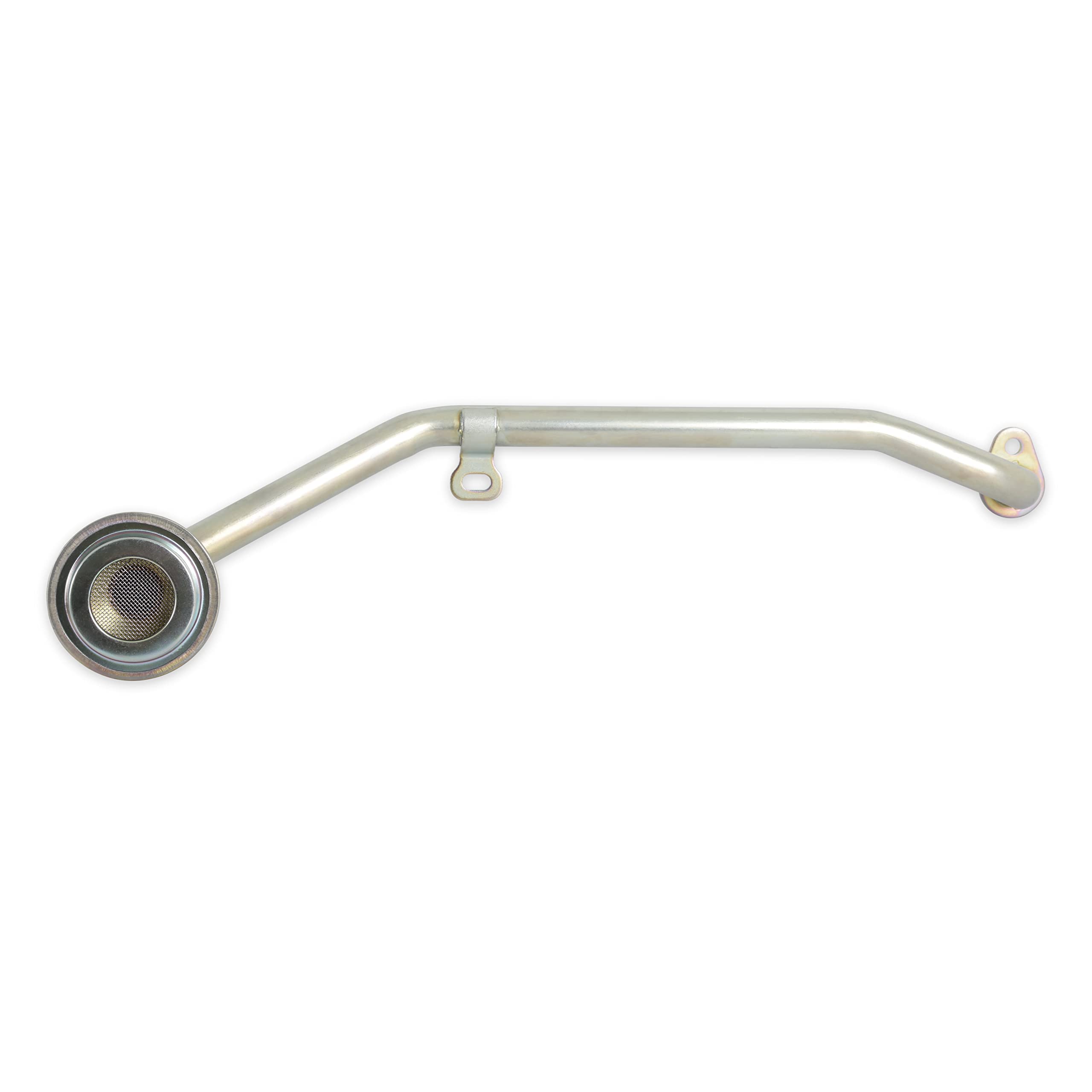

Most engines come from the factory with a stud in the block that is reused to mount the oil pickup.
If you do not have this stud it can be purchased from Mopar - part number 06513100AA.
Recommended Dipstick: Any dipstick from a Dodge or Ram truck that was initially equipped with a Gen III Hemi engine is compatible with this oil pan.
These dipsticks mate to the engine block dipstick port.
Note: Fitment is not guaranteed when using aftermarket exhaust.
The oil return ports on the front corners of the oil pan are no longer machined (the bosses are still there and can be drilled and tapped for these ports - if needed).
