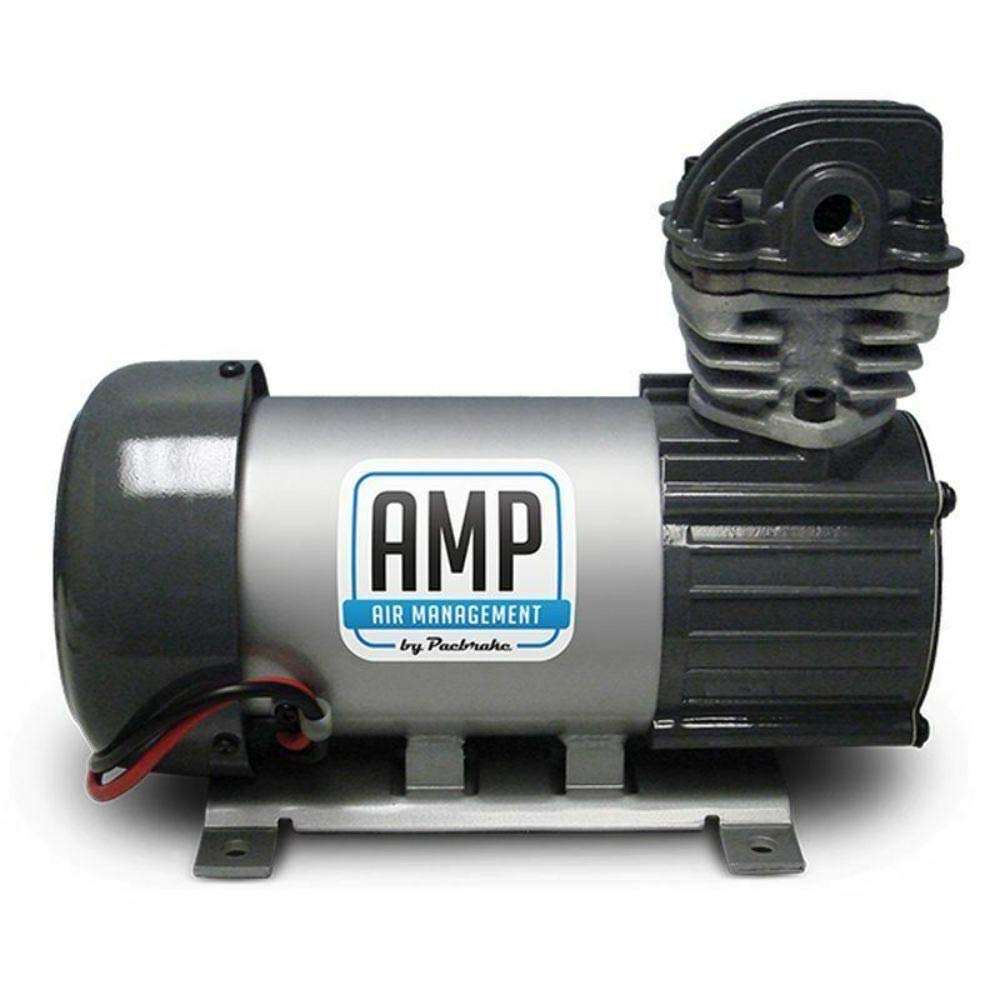

The 12V HP625 Series Air Compressor features a heavy duty compressor with a vertical pump head configuration.
The HP625 series Pacbrake compressors require the unloader assembly (Kit Number HP10116) for use with an air tank.
Pacbrake's 625 Series heavy duty Air Compressors are offered in two pump head configurations: Vertical and Horizontal.
Compressor specifications include a copper wire wound permanent magnet motor, oil-less design, sealed bearings, PTFE piston ring, cast aluminum cylinder head, hard anodized aluminum cylinder, and aluminum sleeve.
The compressor operates at 12V DC with a 100 percent duty cycle at 100 PSI and has a 3/4 HP vertical head configuration.
Size is 11.5 inch x 6 inch x 9.5 inch or 293 mm x 153 mm x 242 mm (LxWxH) and weight is 17.7 lbs.
Note: The HP625 series Pacbrake compressors, i.e., Kit Number HP10625H and HP10625V, require the unloader assembly (Kit Number HP10116) for use with an air tank.
Details: Vertical Pump Head Finish Anodized HP625 Series Volts 12 Volt.
