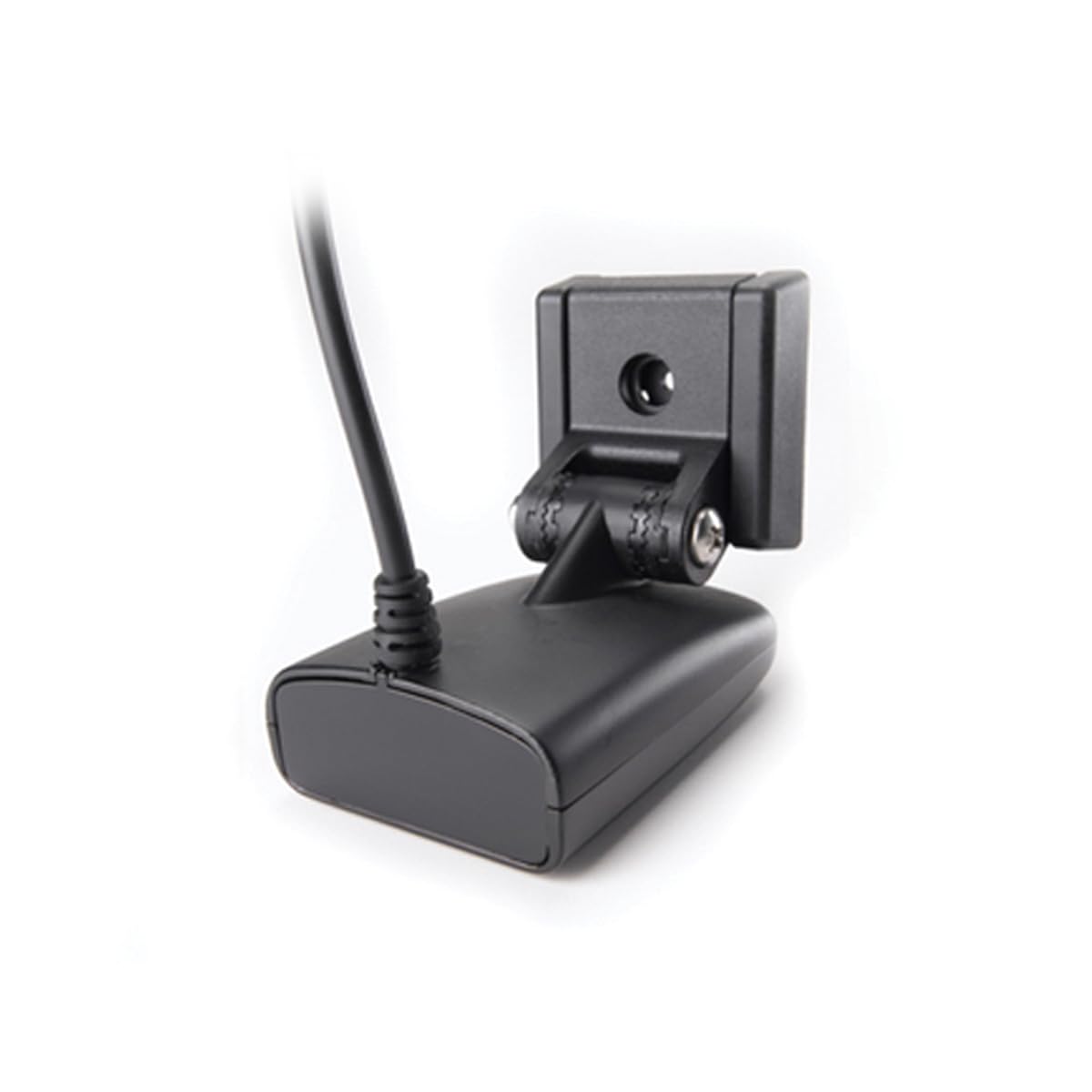

The Humminbird Transom Mount XNT 9 SI 180 T Transducer is designed for high-speed mounting on the transom, or back, of the boat, in contact with the water's surface, and operates with a compatible Humminbird sonar or fish finder system.
This unit is a combination DualBeam PLUS transducer featuring cone angles of 20 and 74 degrees operating at 200 kHz and 83 kHz frequencies respectively, along with side-imaging sonar utilizing two 84-degree beams operating at 455 kHz.
The XHS 9 HDSI 180 T includes a built-in temperature sensor, a 20-foot cable, and all necessary high-speed hardware for immediate setup.
Although this unit shares the same hole pattern as some older-version transducers, it employs a new design that is more secure and less likely to kick up under high wave forces, along with an improved running angle and an optional lock-down screw to prevent kick up.
The Humminbird XHS 9 HDSI 180 T transducer is specifically designed for use with Humminbird's 797c SI Combo fish finder and other side-imaging sonar systems.
This transducer is supported by Humminbird's one-year limited warranty.
