The Universal 25-Plate Transmission Oil Cooler from the Tundra Series keeps oil temperatures where they need to be for optimum performance.
It features a stacked plate and fin design, which is more efficient than tube and fin coolers of the same size, and is constructed with durable aluminum, powder coated with a black finish to withstand corrosion.
Finished with the State-of-the-Art PROFORM brazing process, it protects against leaks and cracks.
To ensure no deformities, we pressure test them at 175PSI, while complete failure is not reached until 600PSI.
To check for bubbles or mini-leaks, we further underwater test at 80PSI.
Installation is configurable to most setups with multiple mounting points available on the flush mounting plates.

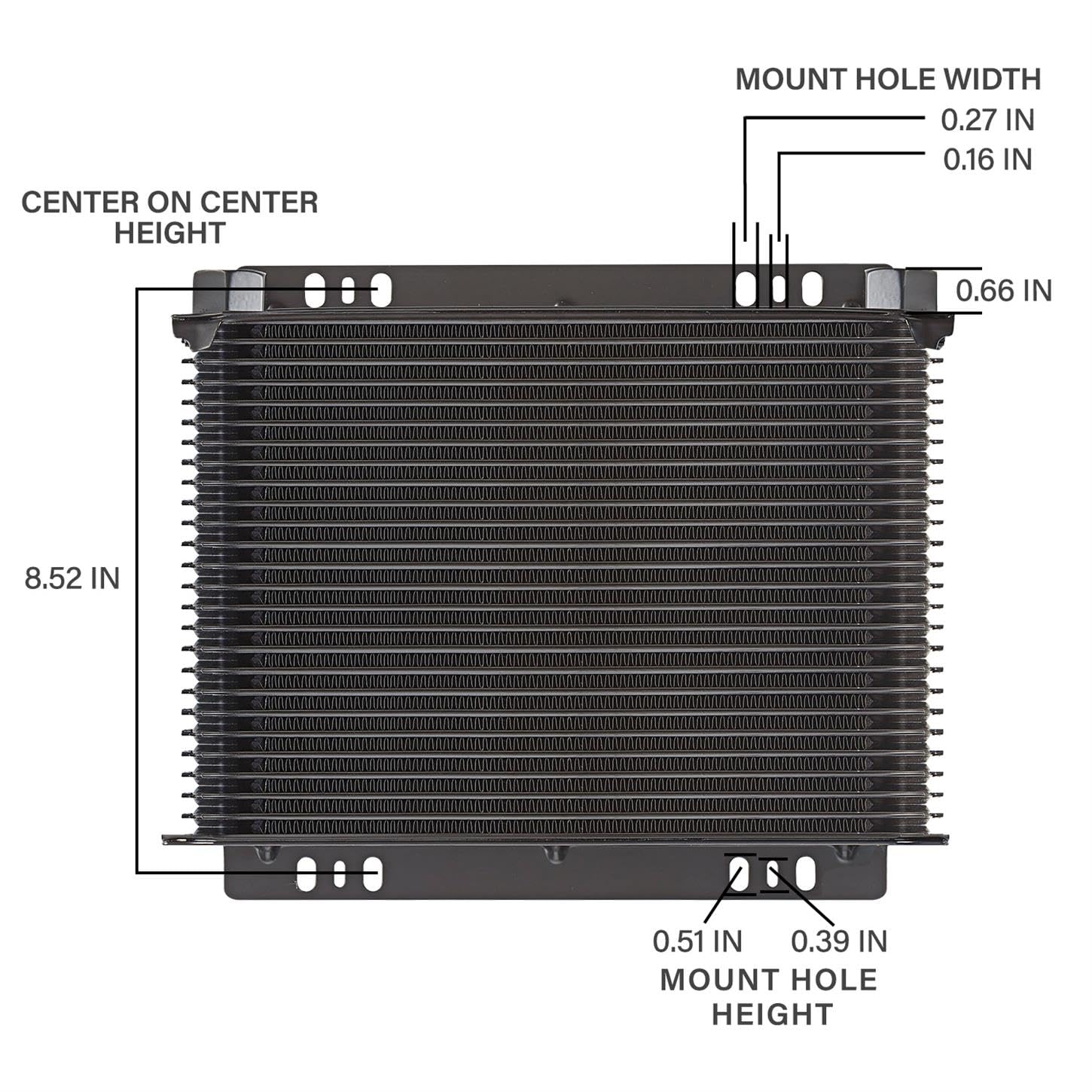

Uniquely engineered louvered fins provide maximum cooling surface area in a compact 2-inch thick, 11.5-inch wide footprint, while minimizing negative air flow resistance for significant cooling potential.
