Brand: Manley
Pistons Department Manley 590540R-1 in our
Manley 590540R-1 is a piston in the Pistons Department.
Currently out of stock
No hidden fees — taxes included in the price & Free Shipping.
We accept major cards and digital wallets. Additional installment plans, when available, are offered by Shopify at checkout based on order eligibility.
Pistons Department Manley 590540R-1 in our

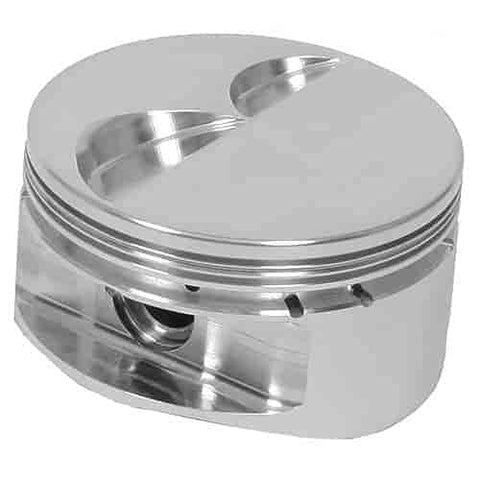

4 Barrel Class Piston SB-Chevy Flat Top -4.0cc 4.040'' Bore (+.040'') 5.700'' Rod Length with 3.480-3.500'' Stroke 1.550'' Comp.
Height 1/16'', 1/16'', 3/16'' Ring Grooves Right Side, 1/pkg.
Technical Specs: Compression Height: 1.550'' Piston & Pin Weight: 555 grams Flat Top: -4.0cc valve reliefs Pin Size: 0.927'' dia, 2.300'' long, .130'' wall Round Wire Locks: .061'' Ring Grooves: 1/16'' Top; 1/16'' Middle; 3/16'' Bottom Piston Clearance: .005'' measured 1.100'' from bottom of the oil ring Valve Notches: .300'' Intake, .190'' Exhaust.
Key Features
Specifications
- Length
- 7.75 lb
- Width
- 5.5 lb
- Height
- 4.25 lb
- Weight
- 1.25 lb
- ASIN
- B07DB6HL2J
- UPC
- 807298025667
- Ships From
- United States
- Brand
- Manley
Frequently Asked Questions
About Pistons Department Manley 590540R-1 in our
01 What is the compression height?
Compression Height: 1.550''.
02 What is the piston and pin weight?
Piston & Pin Weight: 555 grams.
03 What is the pin size?
Pin Size: 0.927'' dia, 2.300'' long, .130'' wall.
04 What is the ASIN for this product?
The ASIN for this product is B07DB6HL2J.
05 What is the UPC / barcode for this product?
The UPC/barcode for this product is 807298025667.
06 Where does this ship from?
Orders ship from our fulfillment center in Dover, Delaware, USA.
07 How many days will it take to arrive?
Orders ship within 1-2 business days and typically arrive within 4-5 business days via free standard shipping -- usually by Aug 30.
08 Does this product accept returns?
Yes -- this item can be returned within 15 days of delivery for a free return by mail. See our return policy for full details.
