Brand: Manley

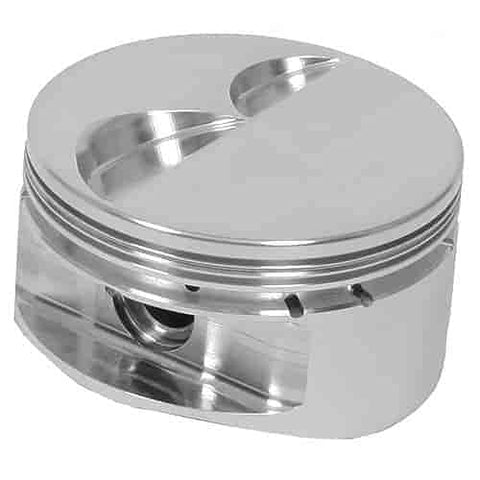

Platinum Series Manley 591040L-1 Pistons
Manley 591040L-1 Platinum Series Pistons feature a 4.040'' bore and 5.700'' rod length.
Currently out of stock
No hidden fees — taxes included in the price & Free Shipping.
We accept major cards and digital wallets. Additional installment plans, when available, are offered by Shopify at checkout based on order eligibility.
Platinum Series Manley 591040L-1 Pistons
Piston SB-Chevy 2 Barrel Class Flat Top -2.5cc 4.040'' Bore (+.040'') 5.700'' Rod Length with 3.480-3.500'' Stroke 1.550'' Comp.
Height.
.043'', .043'', 3mm Ring Grooves Left Side, 1/pkg.
Technical Specs: Compression Height: 1.550'' Piston & Pin Weight: 514 grams Flat Top: -2.5cc valve reliefs Pin Size: 0.927'' dia, 2.300'' long, .095'' wall Round Wire Locks: .061'' Ring Grooves: Gas Ported .043'' Top; .043'' Middle; 3mm Bottom Piston Clearance: .005'' measured 1.100'' from bottom of the oil ring Valve Notches: .210'' Intake, .150'' Exhaust.
Key Features
Specifications
- Length
- 7.75 lb
- Width
- 5.5 lb
- Height
- 4.25 lb
- Weight
- 1.25 lb
- ASIN
- B07DB5Z77D
- UPC
- 807298025964
- Ships From
- United States
- Brand
- Manley
Frequently Asked Questions
About Platinum Series Manley 591040L-1 Pistons
01 What is the bore size of the Manley 591040L-1 Pistons?
The bore size is 4.040''.
02 What is the rod length for the Manley 591040L-1 Pistons?
The rod length is 5.700''.
03 What is the compression height of the Manley 591040L-1 Pistons?
The compression height is 1.550''.
04 What is the ASIN for this product?
The ASIN for this product is B07DB5Z77D.
05 What is the UPC / barcode for this product?
The UPC/barcode for this product is 807298025964.
06 Where does this ship from?
Orders ship from our fulfillment center in Dover, Delaware, USA.
07 How many days will it take to arrive?
Orders ship within 1-2 business days and typically arrive within 4-5 business days via free standard shipping -- usually by Aug 30.
08 Does this product accept returns?
Yes -- this item can be returned within 15 days of delivery for a free return by mail. See our return policy for full details.
