Brand: Richmond Gear/Motive Gear

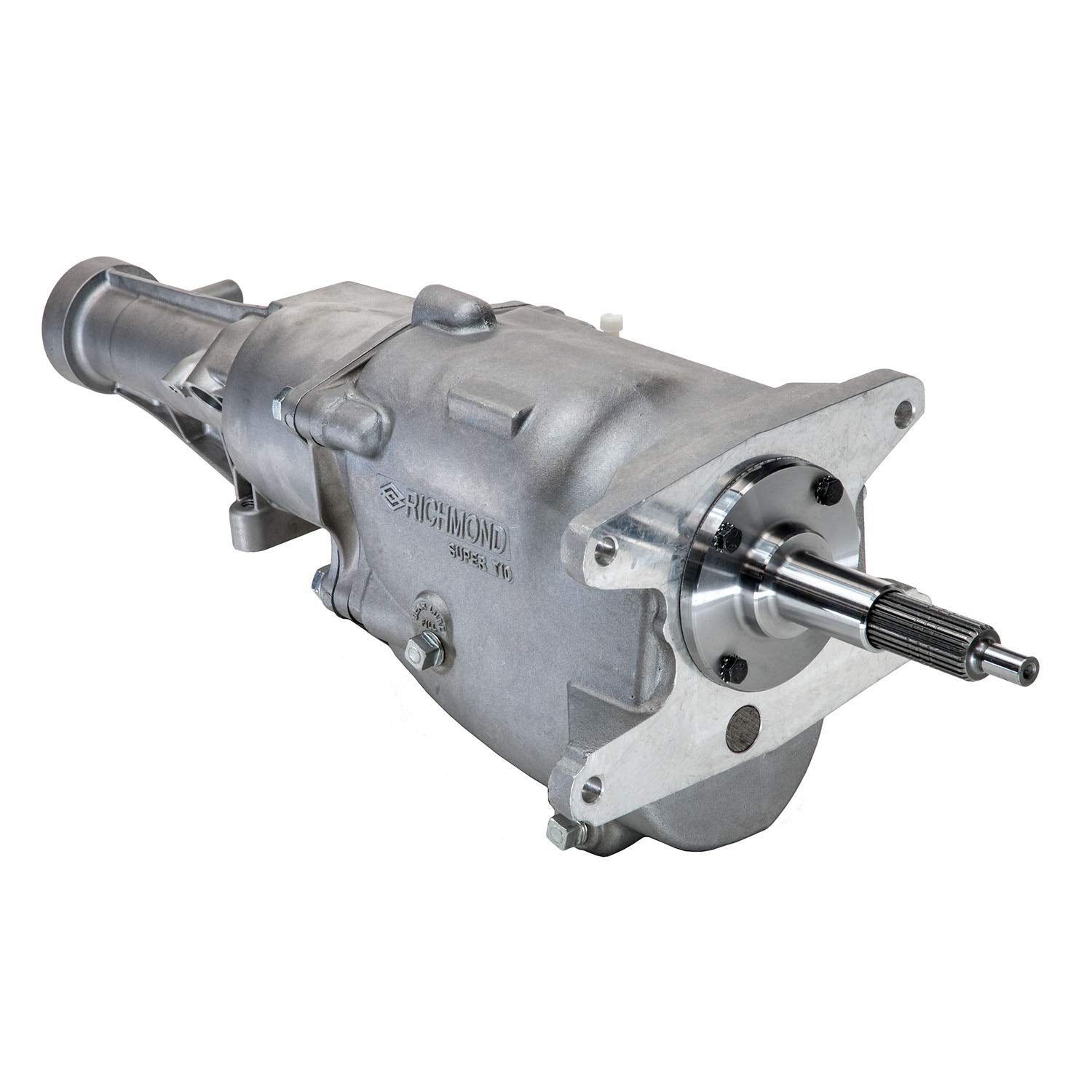

Richmond-Super 1304000062 T-10 4-Speed Transmission Super T-10 4-Speed Transmission
Richmond Super T-10 is a four-speed transmission with synchronized forward gears.
Currently out of stock
No hidden fees — taxes included in the price & Free Shipping.
We accept major cards and digital wallets. Additional installment plans, when available, are offered by Shopify at checkout based on order eligibility.
Richmond-Super 1304000062 T-10 4-Speed Transmission Super T-10 4-Speed Transmission
The Richmond Super T-10 is a four-speed transmission with helical gears that are synchronized in all forward gears.
To prevent gear clash, first and reverse are in constant mesh.
For longer life and easier shifting, strut-type synchronizers are included.
The T-10 is utilized in performance type automobiles and light trucks.
The Richmond Super T-10 serves as the NASCAR standard.
It is synchronized in all forward gears with constant mesh for 1st and reverse.
The maximum torque capacity is up to 375 lb-ft.
Weighing just 70 lbs.
(dry), it is light but strong.
It features a robust side lever rail shift mechanism.
There are multiple 1st gear ratios available with close or wide ratio options.
The Super T-10 PLUS includes a billet input retainer and race synchro rings.
The 1304000062 Super T-10 4-Speed Transmission has a first gear ratio of 2.88, a second gear ratio of 1.74, a third gear ratio of 1.33, and a fourth gear ratio of 1.00.
The reverse first gear ratio is 2.78.
The maximum torque is 300 foot-pounds.
The input shaft diameter is 1.125 inches with a spline quantity of 26.
The output shaft diameter is 1.375 inches with a spline quantity of 32.
The oil capacity is 2.4 pints, and the oil type is 80w90 GL-4.
For warranty details, contact Richmond at (800) 583-GEAR during their operating hours from 8 AM to 5 PM Eastern Time, or email sales@richmondgear.com.
Key Features
Specifications
- Length
- 35.0 lb
- Width
- 16.0 lb
- Height
- 16.0 lb
- Weight
- 85.0 lb
- ASIN
- B01LQMDS9A
- UPC
- 698231711262
- Ships From
- United States
- Brand
- Richmond Gear/Motive Gear
Frequently Asked Questions
About Richmond-Super 1304000062 T-10 4-Speed Transmission Super T-10 4-Speed Transmission
01 What is the maximum torque capacity of the Richmond Super T-10?
The maximum torque capacity is up to 375 lb-ft.
02 What is the weight of the Richmond Super T-10?
It weighs just 70 lbs. (dry).
03 What type of oil is recommended for the Richmond Super T-10?
The oil type recommended is 80w90 GL-4.
04 What is the ASIN for this product?
The ASIN for this product is B01LQMDS9A.
05 What is the UPC / barcode for this product?
The UPC/barcode for this product is 698231711262.
06 Where does this ship from?
Orders ship from our fulfillment center in Dover, Delaware, USA.
07 How many days will it take to arrive?
Orders ship within 1-2 business days and typically arrive within 4-5 business days via free standard shipping -- usually by Aug 31.
08 Does this product accept returns?
Yes -- this item can be returned within 15 days of delivery for a free return by mail. See our return policy for full details.
