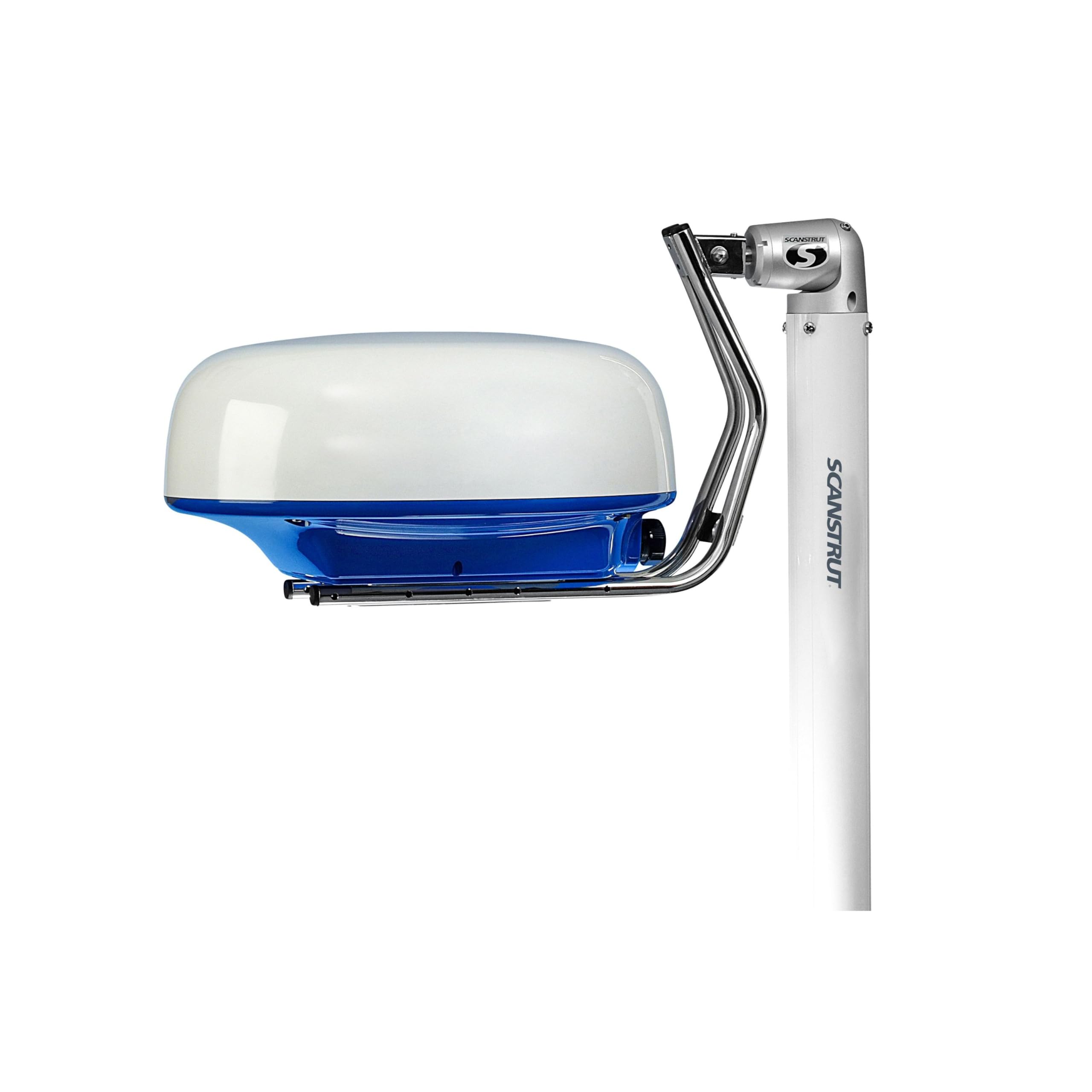

The leveler mounted on the pole comes with everything needed for installation onto any sailing boat.
The complete kit includes: an adjustable base that screws into the boat at any angle, the SC100 pole, the levelling cradle with a passive damping chamber, and a 1200mm deck strut & 25mm rail stand-off.
By pole mounting your radar, extra weight is kept off the mast.
It avoids sail chafe and allows for the installation of a pole mount crane or lights onto the pole for added flexibility.

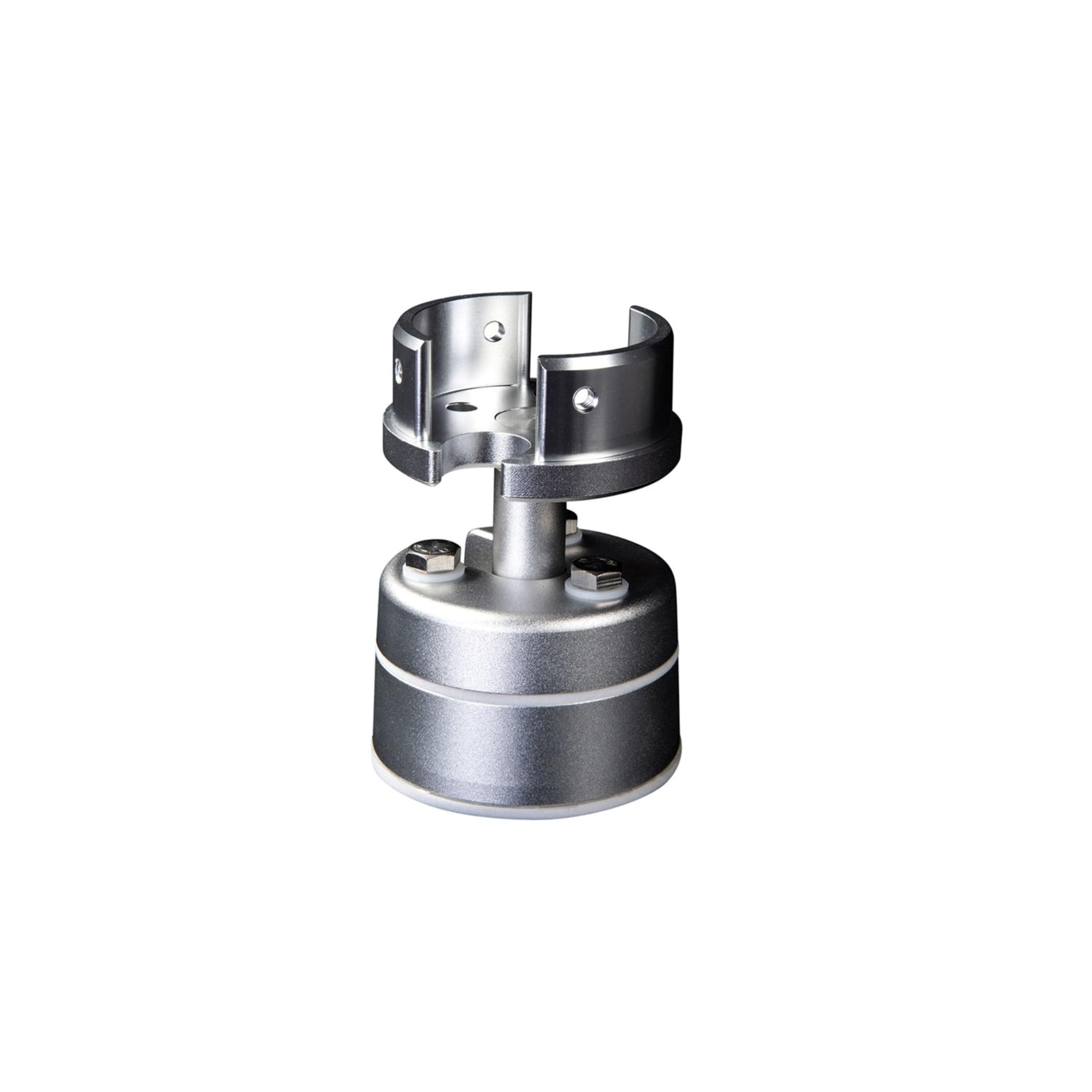

The main levelling unit features a damping system that is fine-tuned and reacts to major changes in the boat's heel angle.
It requires no power and is entirely maintenance-free.
The unique pole extrusion of 2.5m (8.3’) accommodates two cable channels with a cover strip to keep cables in place and out of view.
The anodized aluminum base provides options for where to install the pole mount.
The base allows installation on both sloping transoms and level decks.

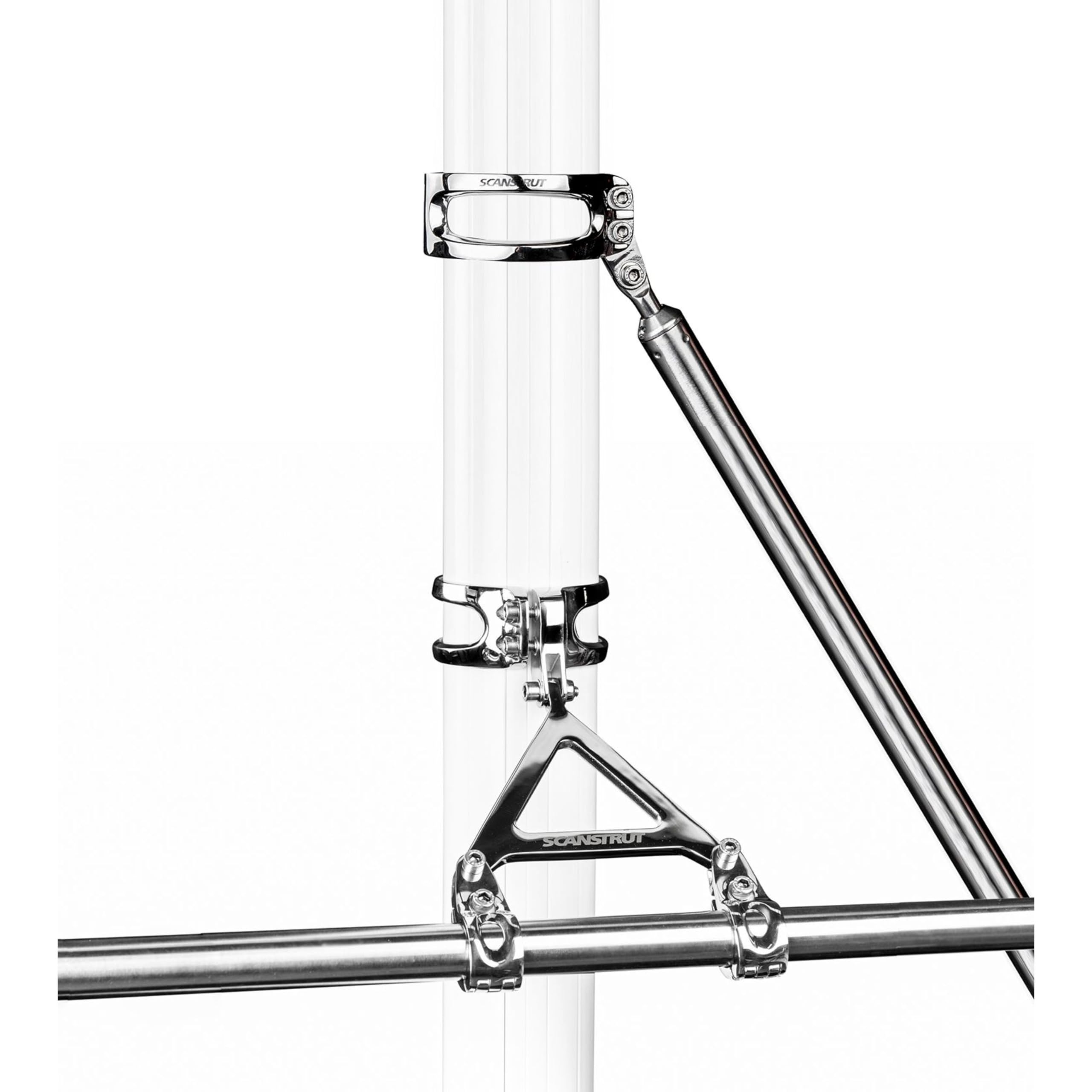

Two support modules are supplied to provide maximum fore/aft and sideways support for a reliable setup.
Unscrew the base and remove the pole for racing or winter storage, leaving just the low-profile base on the deck.
