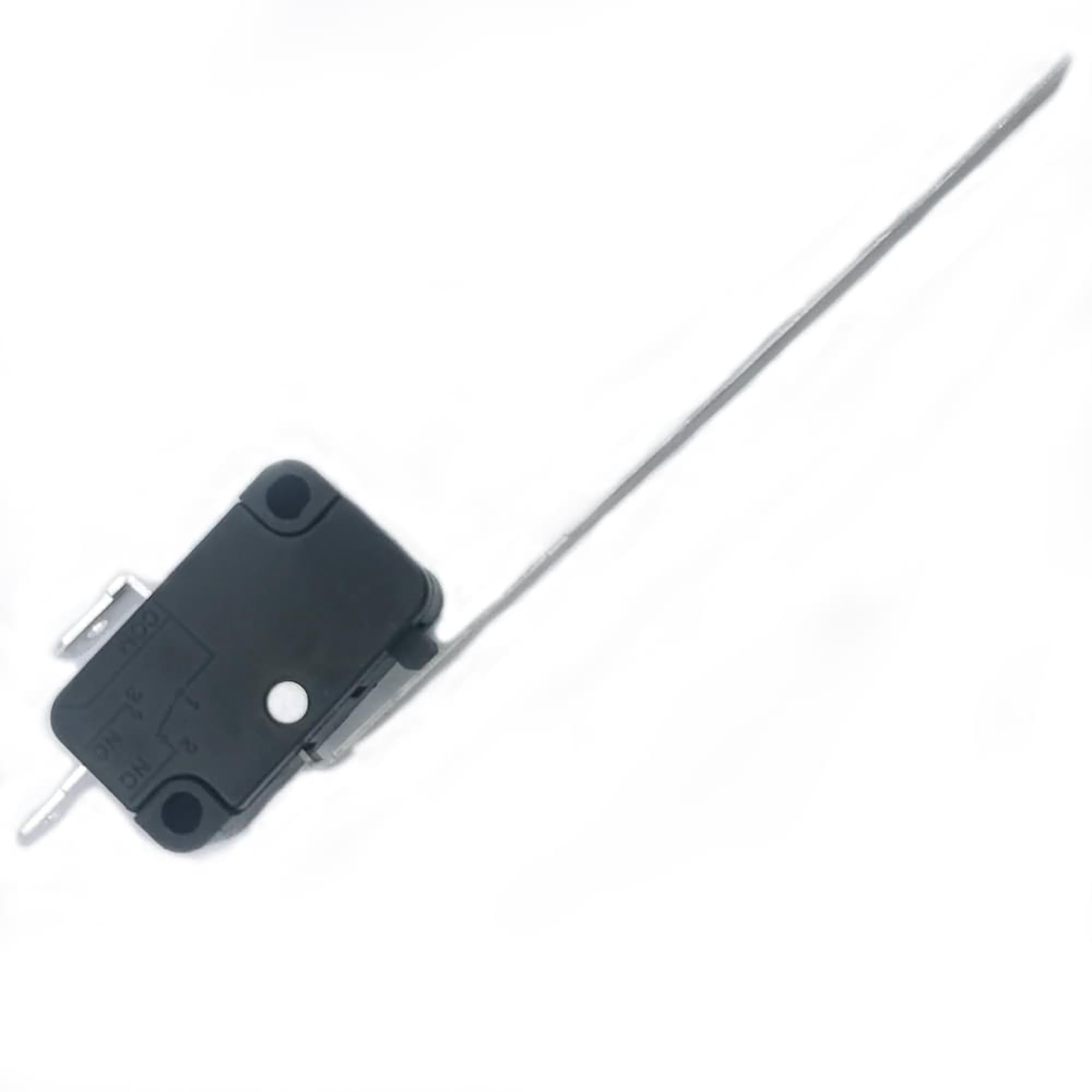

The 31377MC Air Flow Sail Switch from MC Enterprises is designed for Atwood Everest and Excalibur Furnaces.
This sail switch acts as an air proving device and requires 75% of the motor's rpm's before ignition can occur.
Continuity through the switch should be present when the switch paddle is pressed.
Replacing a sail switch with the exact same size is important.
Common issues with these switches include loose wire connections, bent paddles, or obstructions between the paddle and switch contact.
Compatible with: 7912-II, 7916-II, 7920-II, 8516-II, 8516-III, 8516-IV, 8520-II, 8520-III, 8520-IV, 8525-II, 8525-III, 8525-IV, 8531-II, 8531-III, 8531-IV, 8535-II, 8535-III, 8535-IV, 8935-DC-I, 8935-AC-I, 8940-DC-I, 8940-AC-I, 8935-DC-II, 8935-AC-II, 8940-DC-II, 8940-AC-II, 8935-DC-III, 8935-AC-III, 8940-DC-III, 8940-AC-III.
