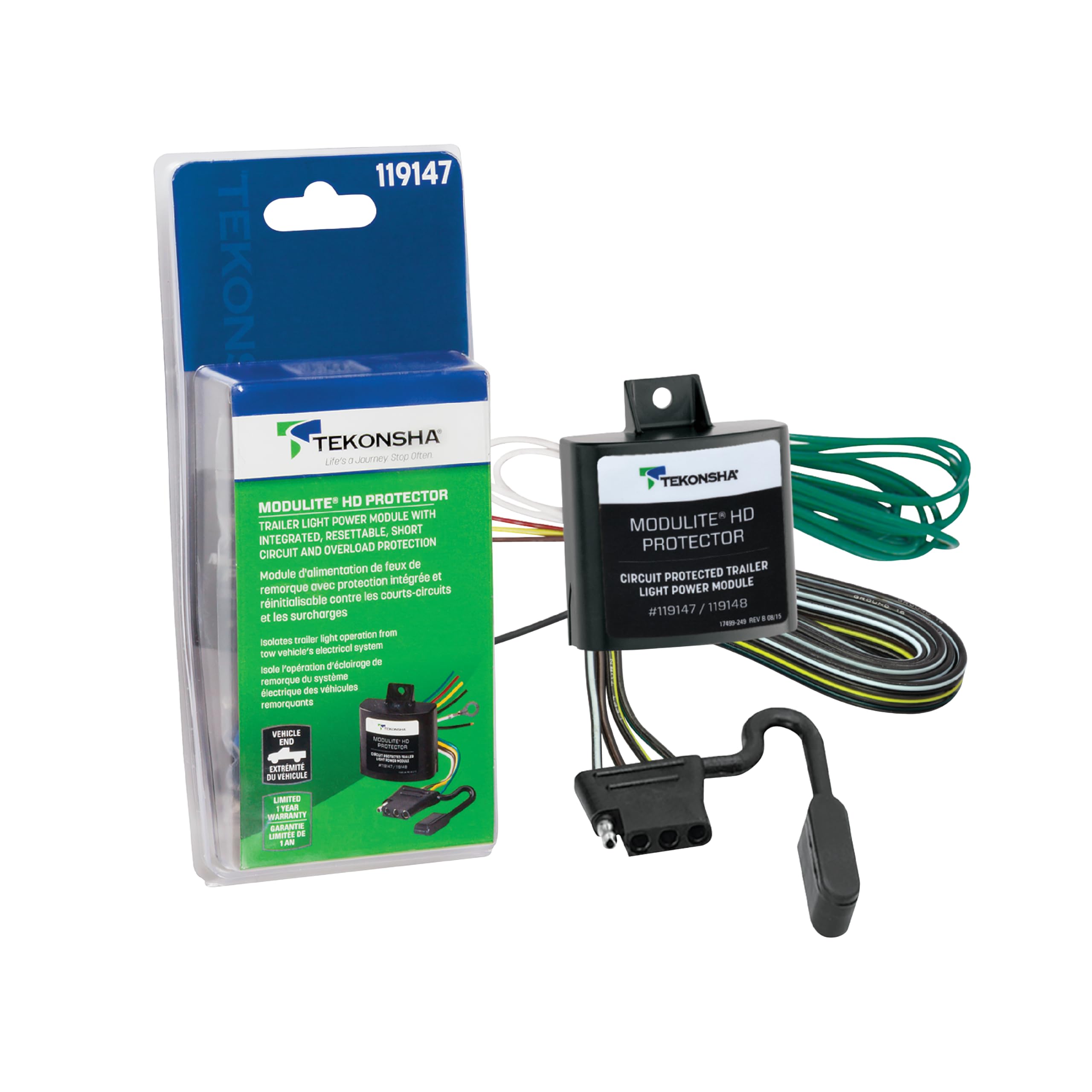

Tekonsha ModuLite HD Protector 119147 Trailer Light Power Module

Part # DRT119147  ·  UPC 016118118018
$83.99

Shipping and tax included·No hidden fees

In stockShips in 1–2 business days
5%OFFExtra 5% off at checkoutUse the code at checkout · on top of our price
Delivery & returns
  • Order today to get by Nov 23–25
  • Free shipping to the lower 48
  • Returns accepted within 15 days
  • Ships from: United States
Buy with confidence

Authorized Draw-Tite dealer. New, genuine parts with the brand's warranty, and real people who answer — info@trybeepbeep.com

Secure checkout
American Express Apple Pay Diners ClubDiscoverGoogle Pay Mastercard PayPalShop Pay Visa
Compare
Authorized dealerDraw-TiteGenuine brand partVerified by the brandCovered by the brand warranty
TypeLightingNew, genuine partReady to shipTax included in the price
Ships1–2 daysFree to the lower 48From U.S. warehousesTracking emailed to you
Returns15 daysUnused, original boxEasy returns by mailReal people answer email
What you pay Part $83.99+ Shipping Included+ Tax Included= You pay $83.99 Nothing is added at checkout
About this item

Lighting by Draw-Tite

ModuLite HD Power Modules utilize a direct connection to the battery of the tow vehicle to power the trailer's stop, turn, tail, and running lights without overloading the electrical systems of the vehicle.

A ModuLite module should be used when your trailer has more than one light assembly per side and is equipped with multiple clearance or running lights; if the tow vehicle tows a variety of trailers; or if the tow vehicle has 'lamp out' sensors or other sensitive electronics that could be damaged by increased electrical draw.

ModuLite features integrated, re-settable short circuit and overload protection, which safeguards itself and the tow vehicle from shorts and wiring installation mishaps.

It is rated at up to 4.2 amps for turn/stop circuits and 7.5 amps for the taillight circuit.

It works on vehicles with pulse width modulation (PWM) taillights, ensuring full brightness of the trailer lights during operation.

The module adapts import and domestic vehicles with separate turn and stop lights (3 wire system) to standard trailer taillight wiring (2 wire system).

It is compatible with either LED and/or incandescent bulbs on both the tow vehicle and trailer.

It will not work with vehicles that have a low-side switch or multiplex lighting system.

Comprehensive instructions are included.

Tekonsha backs this product.

Vehicle fitment

Will it fit your vehicle?

Compare the part number (DRT119147) and the specifications with your vehicle.

Ask us to check fitment
Why buy it here
  • Authorized Draw-Tite dealerNew, genuine, with the brand's own warranty.
  • One honest priceShipping and tax included. Nothing added at checkout.
  • Ships from U.S. warehousesIn stock, ships in 1–2 business days.
  • Easy 15-day returnsUnused, in the original box. See the steps
Meet your seller
TryBeepbeepOperated by Himalayan Iris, LLC · Dover, DE, USAExcellent on Trustpilot
Message us about this part

A real person answers, Monday to Friday, 9 AM–6 PM EST.

What you get

Key features

Functionality

Uses a direct connection to the tow vehicle's battery to power the trailer's stop, turn, tail and running lights without overloading the vehicle's electrical system

Usage

Use when trailer has more than 1 light assembly per side and is equipped with multiple clearance or running lights; if the tow vehicle may tow a variety of trailers; if the tow vehicle has 'lamp out' sensors

Security

Integrated, re-settable short circuit and overload protection - safeguards itself and the tow vehicle from shorts and wiring installation mishaps

Compatibility

For vehicles with pulse width modulation (PWM) taillights, ensuring full brightness of the trailer lights; works on 2 or 3 wire systems; compatible with LED and/or incandescent bulbs (vehicle & trailer)

Power

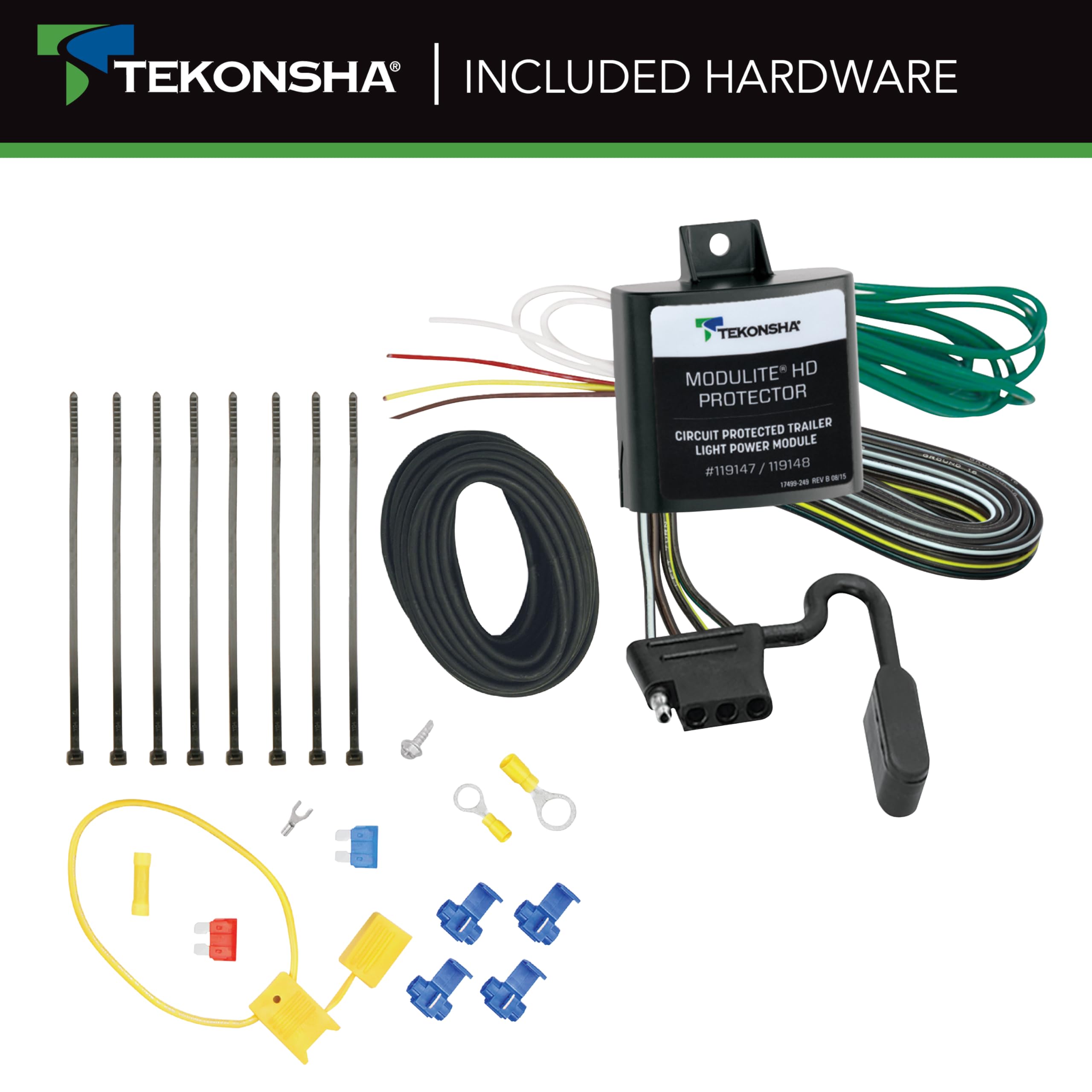

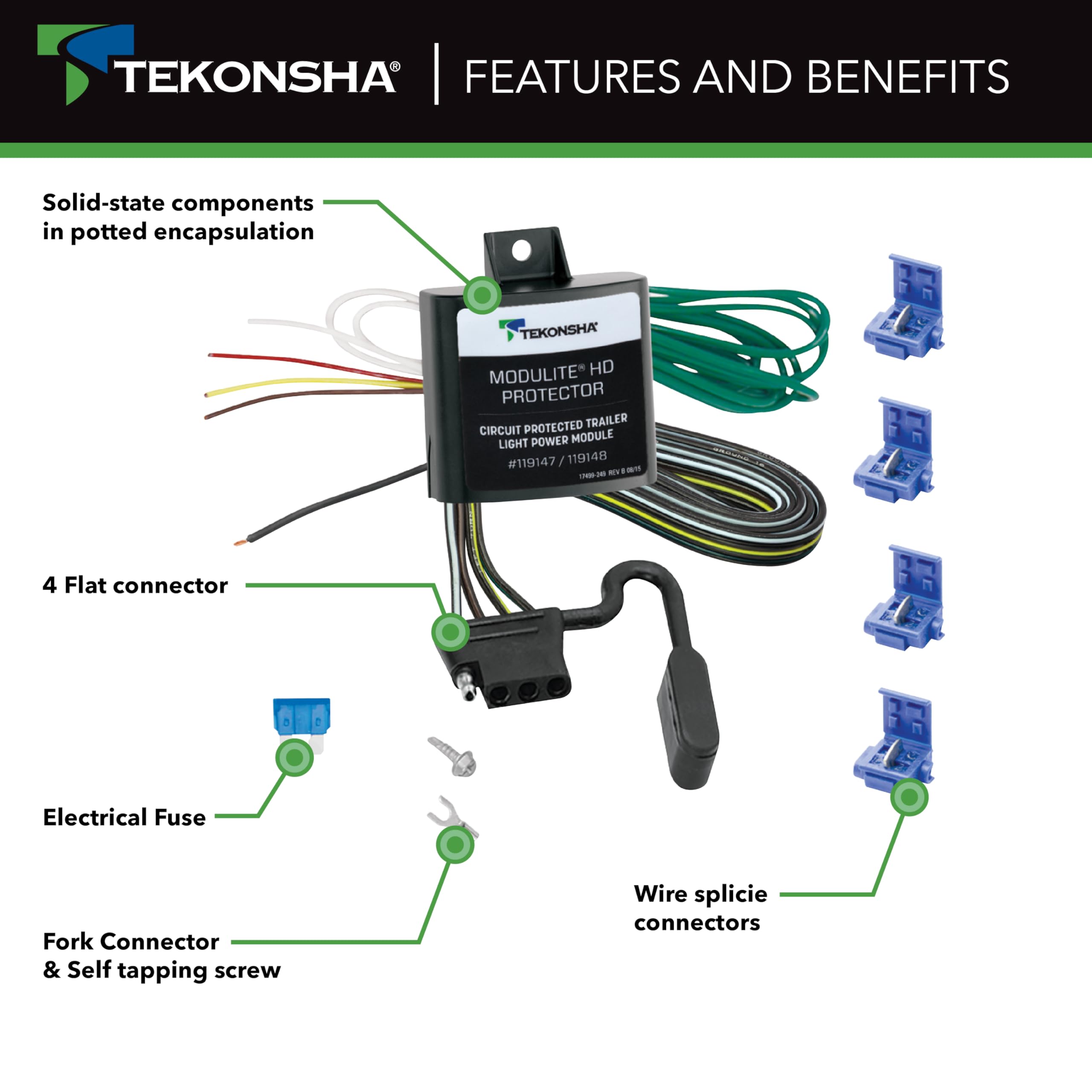

Rated at up to 4.2 amps for turn/stop circuits and 7.5 amps for the taillight circuit; includes pigtail with 4-flat connector and cover along with wire for battery

Instructions

Comprehensive instructions included

Specifications

Part # DRT119147
BrandDraw-Tite
Part numberDRT119147
UPC016118118018
TypeLighting

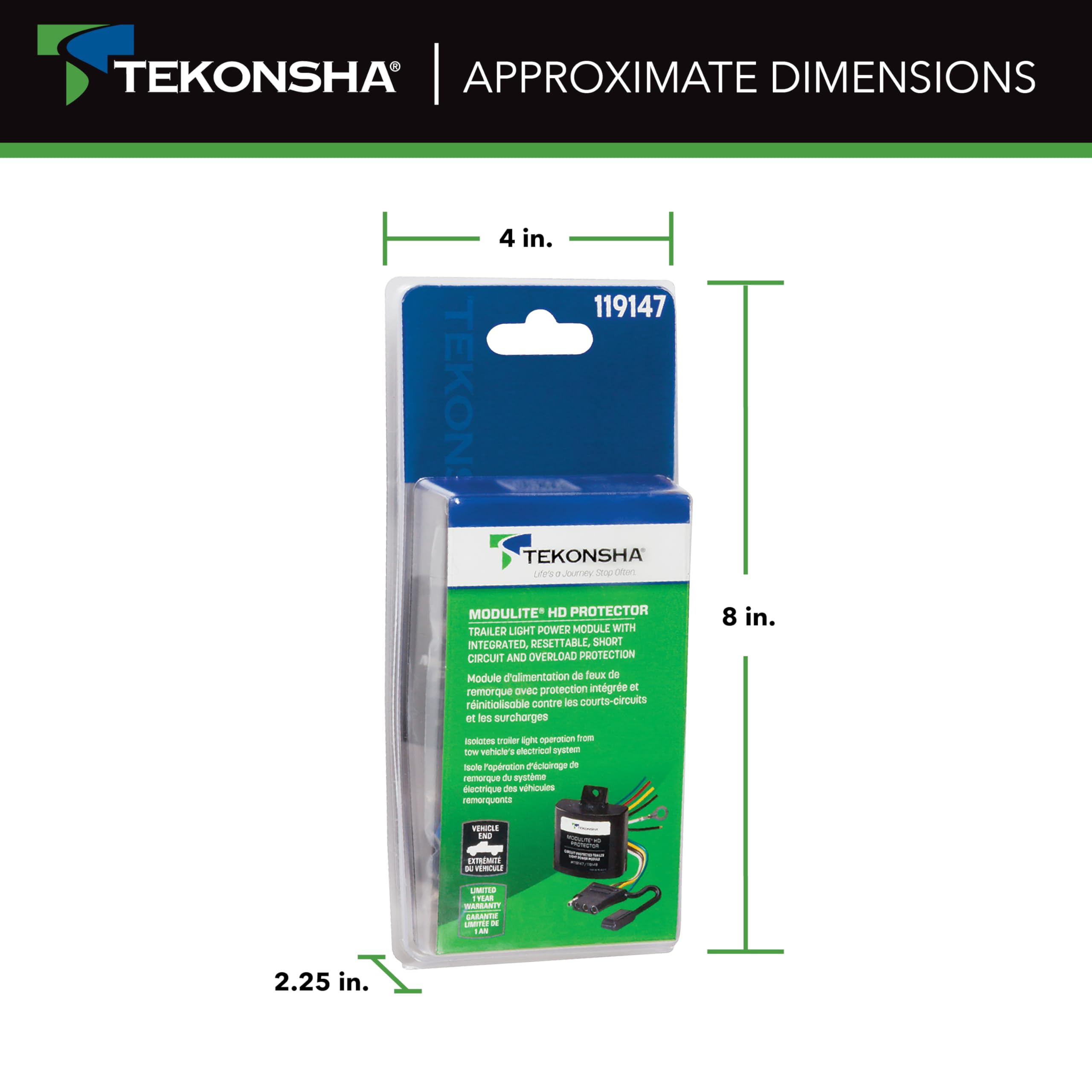

Length6.9 in
Width3.9 in
Height2.3 in
Weight0.7 lb
ConditionNew
