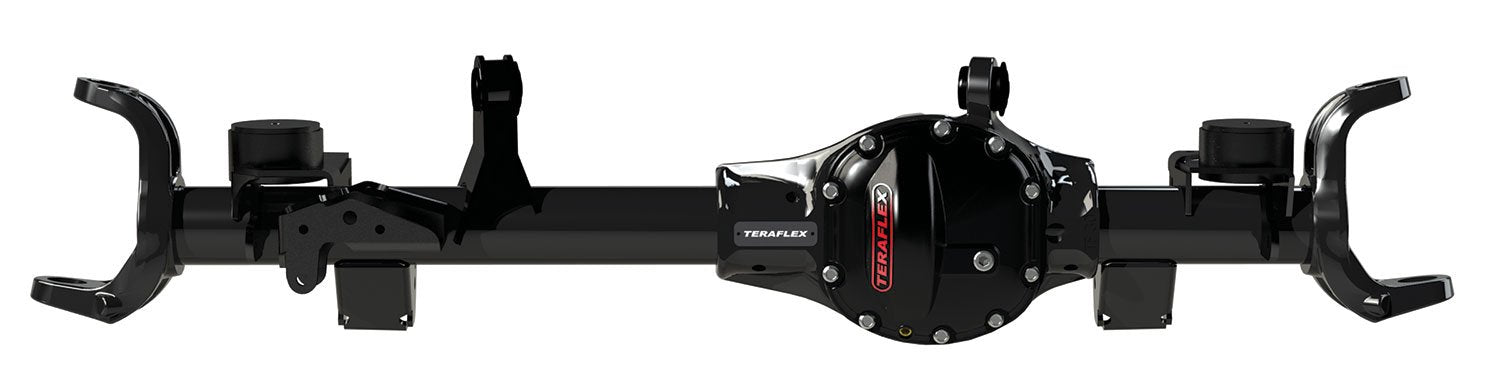

TeraFlex JK Front Tera30 Replacement Axle Housings include a housing that is heavy-duty with axle tubes, bracketry, and forged inner knuckles.
Inner seals and upper control arm bushings are pre-installed to make the upgrade seamless.
Transfer your existing internal components (differential, ring and pinion, and axle shafts), outer components (knuckle assembly and ball joints), axle assembly, unit bearings, brakes, and sensors to the new housing!
TeraFlex heavy-duty JK Front Tera30 Replacement Axle Housings are ideal for replacing bent, broken, or damaged front axles in JK Wrangler and Rubicon vehicles.
They can also be used as a direct bolt-on upgrade for JK Wrangler owners looking to beef up the weak areas of the front axle.
LIFT HEIGHT: 0-3” WIDTH: 67” WMS-WMS (stock) AXLE TUBE: 3.25” x 0.25” FITS: JK Wrangler (2-door) – front JKU Wrangler Unlimited (4-door) – front FEATURES & BENEFITS: 3.25” O.D.
x 0.25” wall axle tube increases strength to resist bending & torsion with minimal weight increase.
Inner axle seals are pre-installed.
Forged HD inner knuckles with greater upper & lower section strength.
Ductile cast iron housing with increased rib gussets.
HD ductile iron differential cover.
Asymmetric housing design for extra-long tube side strength.
Smooth radius bottom design to glide over rocks & obstacles.
Integrated lower flexarm skid plates.
Bottom oil drain hole for simple fluid changes.
Premium UV protected triple-stage powder coat process for superior corrosion resistance.
1/4”-thick CNC laser cut axle brackets for extreme strength.
Integrated factory location upper control arm mount.
Upper control arm bushings are pre-installed.
Reinforced front track bar mount (ties into spring pad) for greater strength.
Proper pinion angle for lifted JK applications.
Pre-tapped hole on spring perch for bump stop extensions.
Pre-drilled holes for limit straps & lower spring retainers.
Retains all JK ESP, ABS, & speedometer sensor capability.
100% engineered, designed, & built in the USA.
100% new components.
INSTALL TIME: 8 Hours (includes gear setup).
