For gas engines, water/methanol injection is a proven method for effectively reducing inlet air temperatures and suppressing harmful detonation on high compression naturally aspirated (NA) race engines and forced induction.
Racers can reliably increase boost and advance ignition timing without using high-octane racing fuel for power gains of up to 20 percent.
AEM's Water/Methanol Injection Systems utilize robust hardware combined with more advanced features than any other comparably priced water/methanol system.

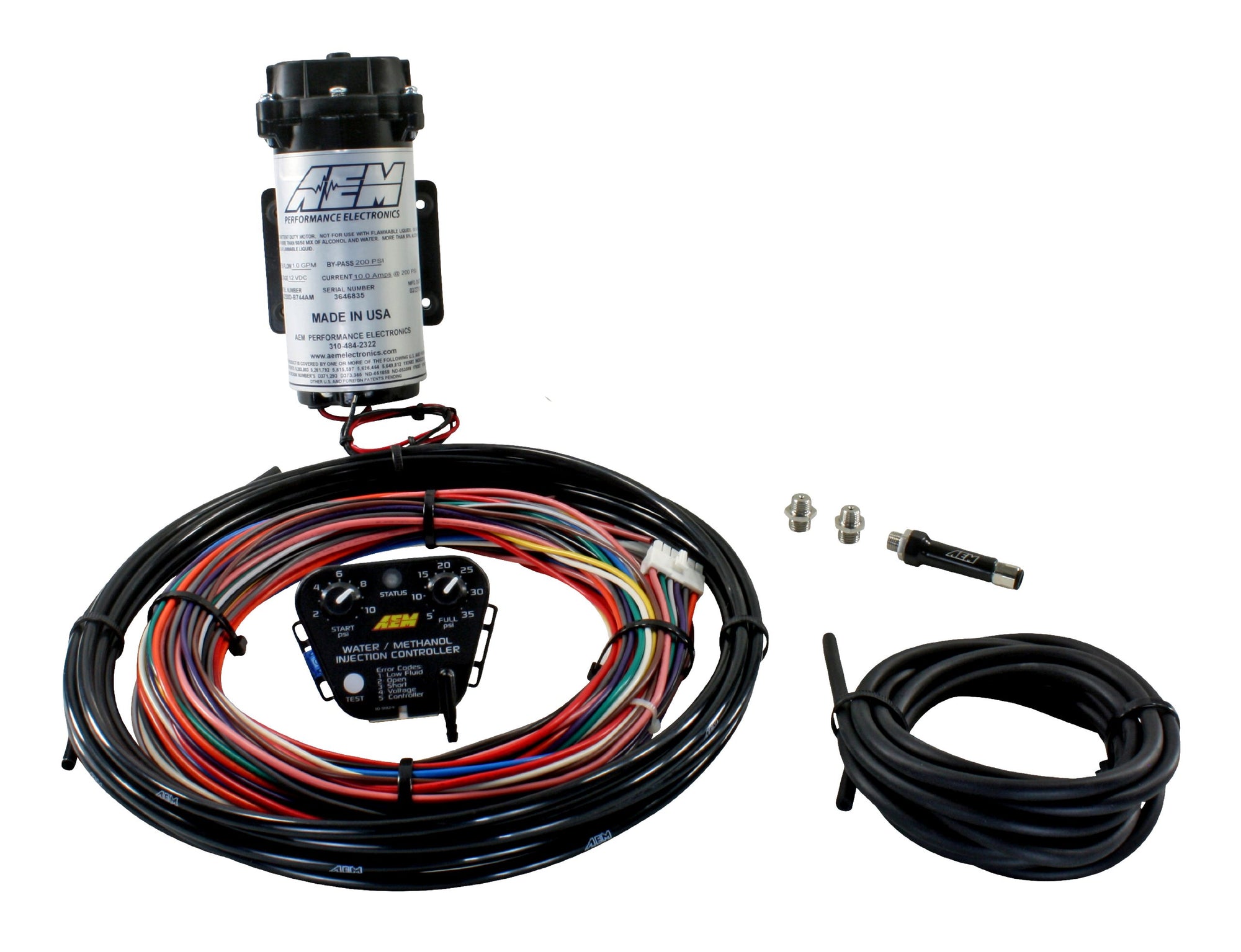

The on-demand progressive controller in AEM's tank-less Water/Methanol Injection kit bases injection flow on manifold pressure using an on-board MAP sensor (up to 35 PSI of boost) to ensure proper water/methanol injection at all points along an engine's power curve.

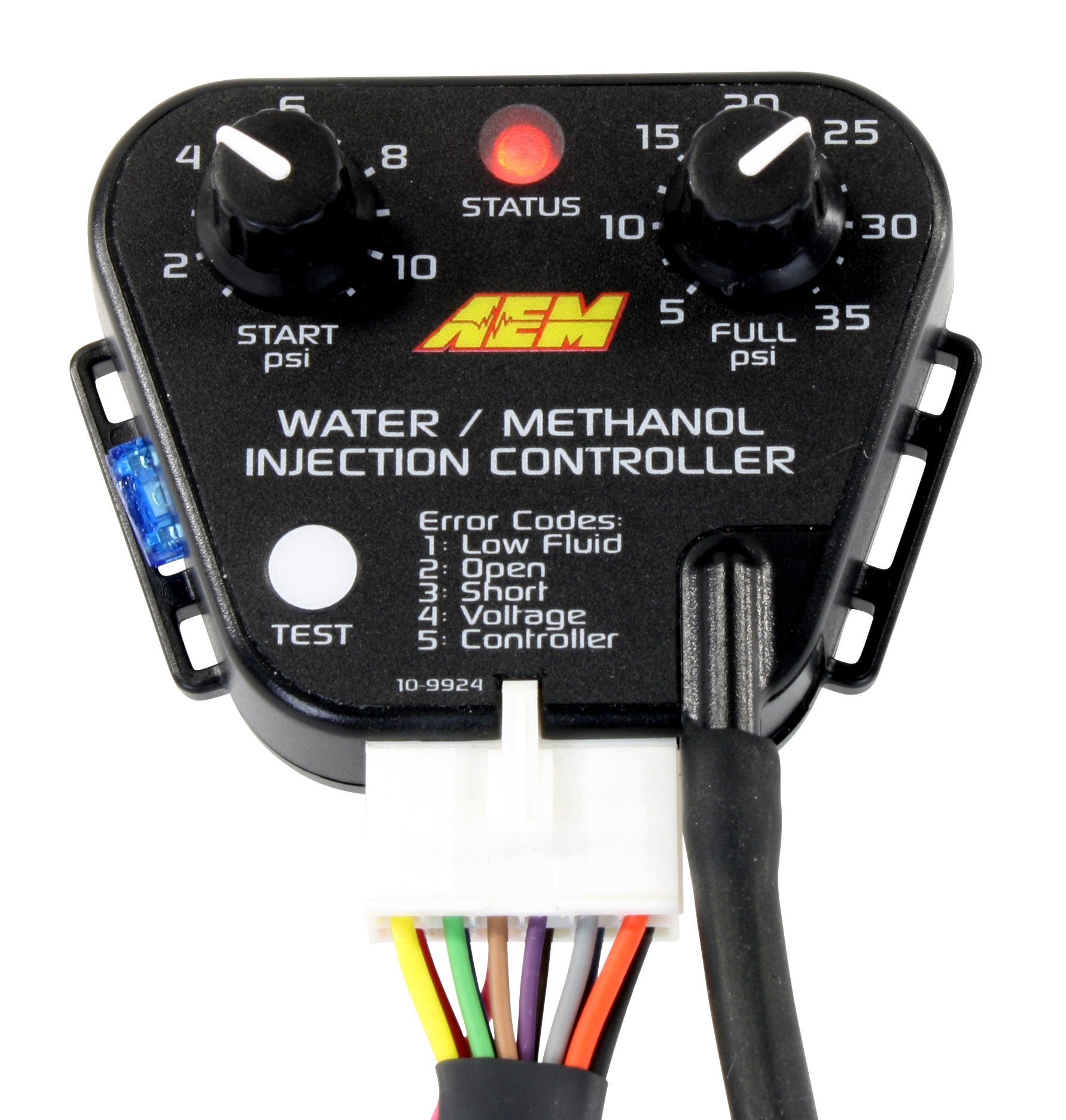

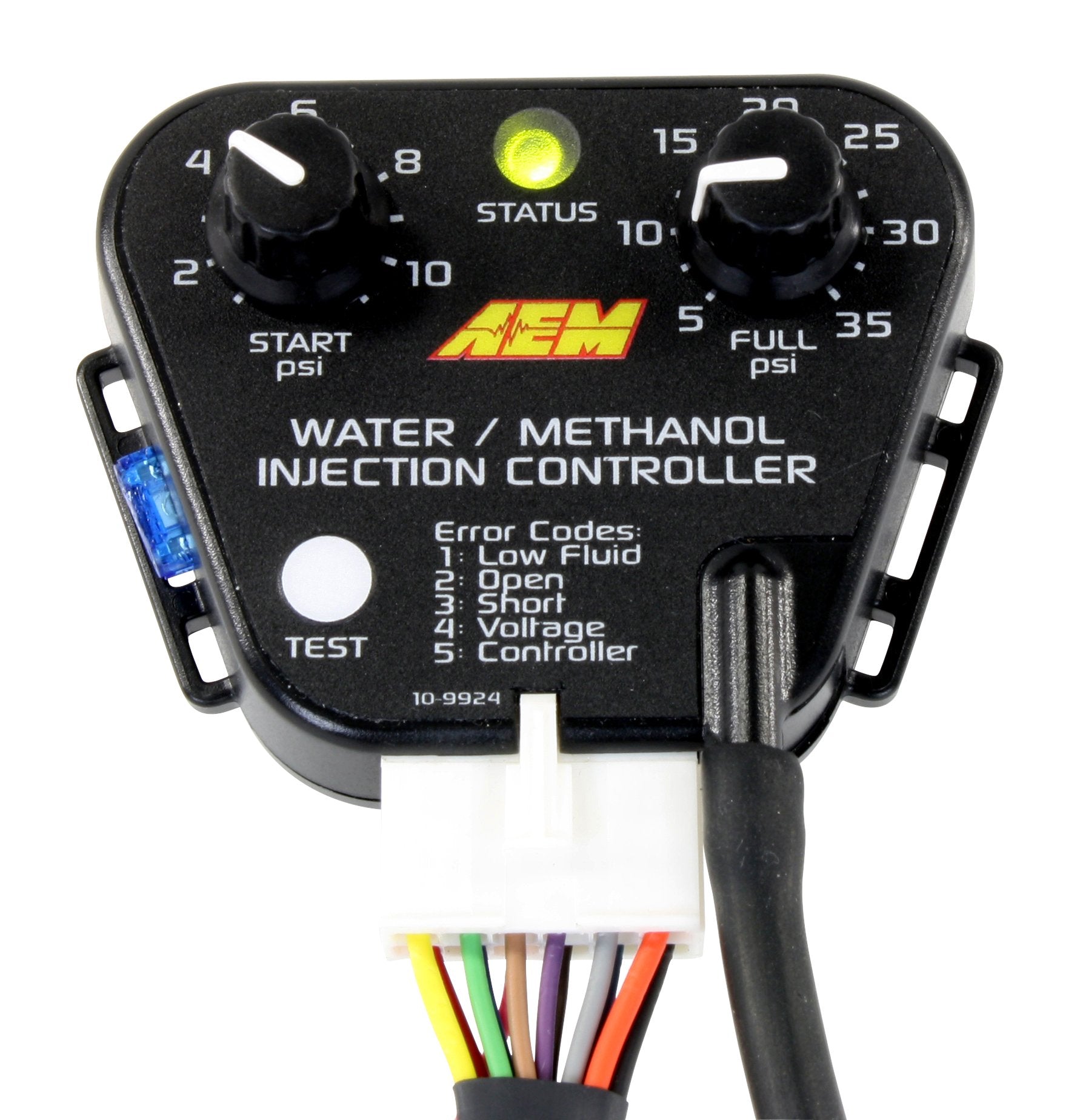

The new controller design features large, turn-resistant knobs and larger numbering to easily set accurate start and full activation points, with covered status LED and test buttons for added splash resistance.

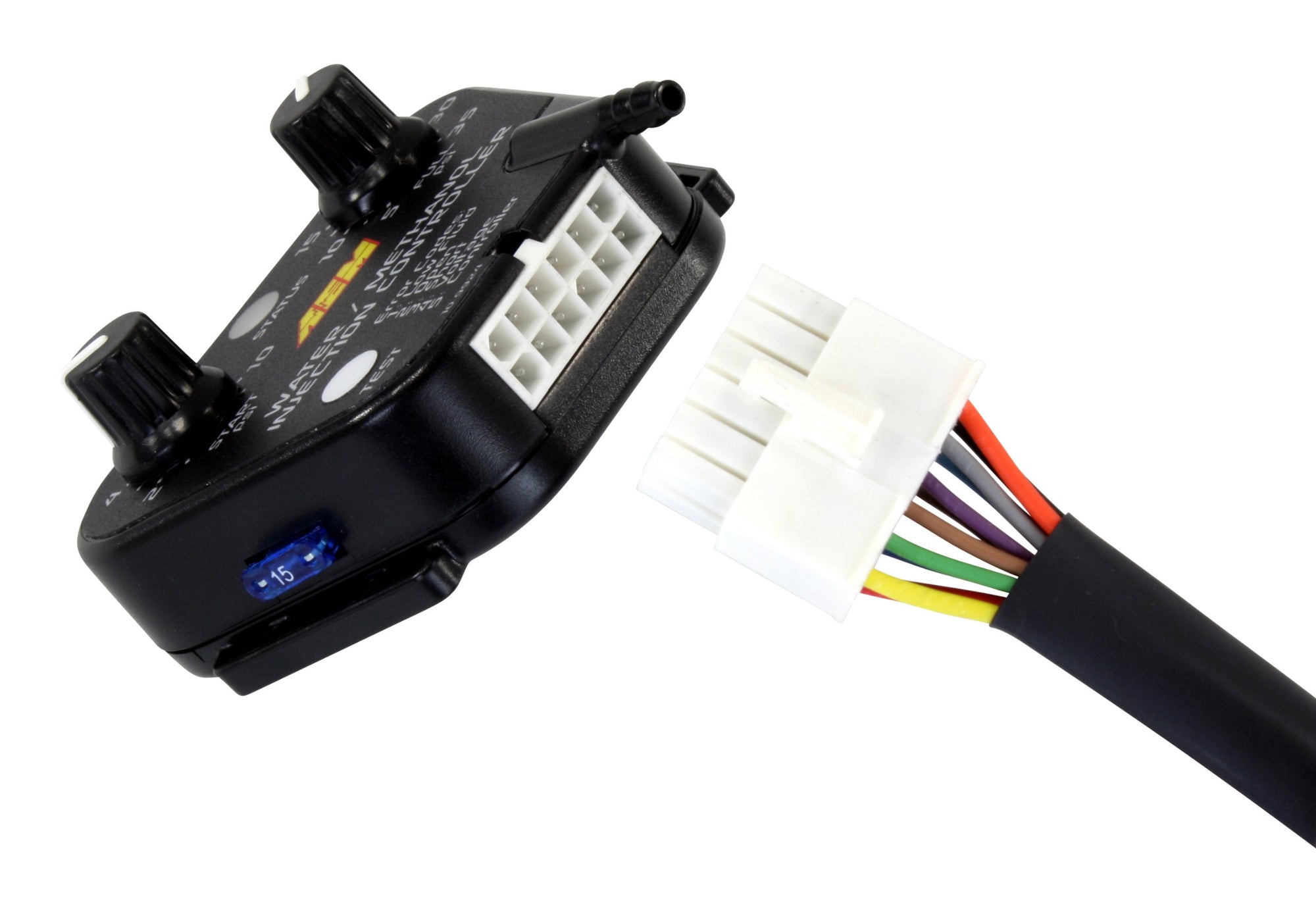

A plug is integrated into the controller housing for mating to the redesigned wiring harness's positive-lock connector.
The Boost Dependent controller housing has a molded-in, barbed nipple to accept a boost hose and a wiring legend on the back, integrated fuse and molded mounting tabs.

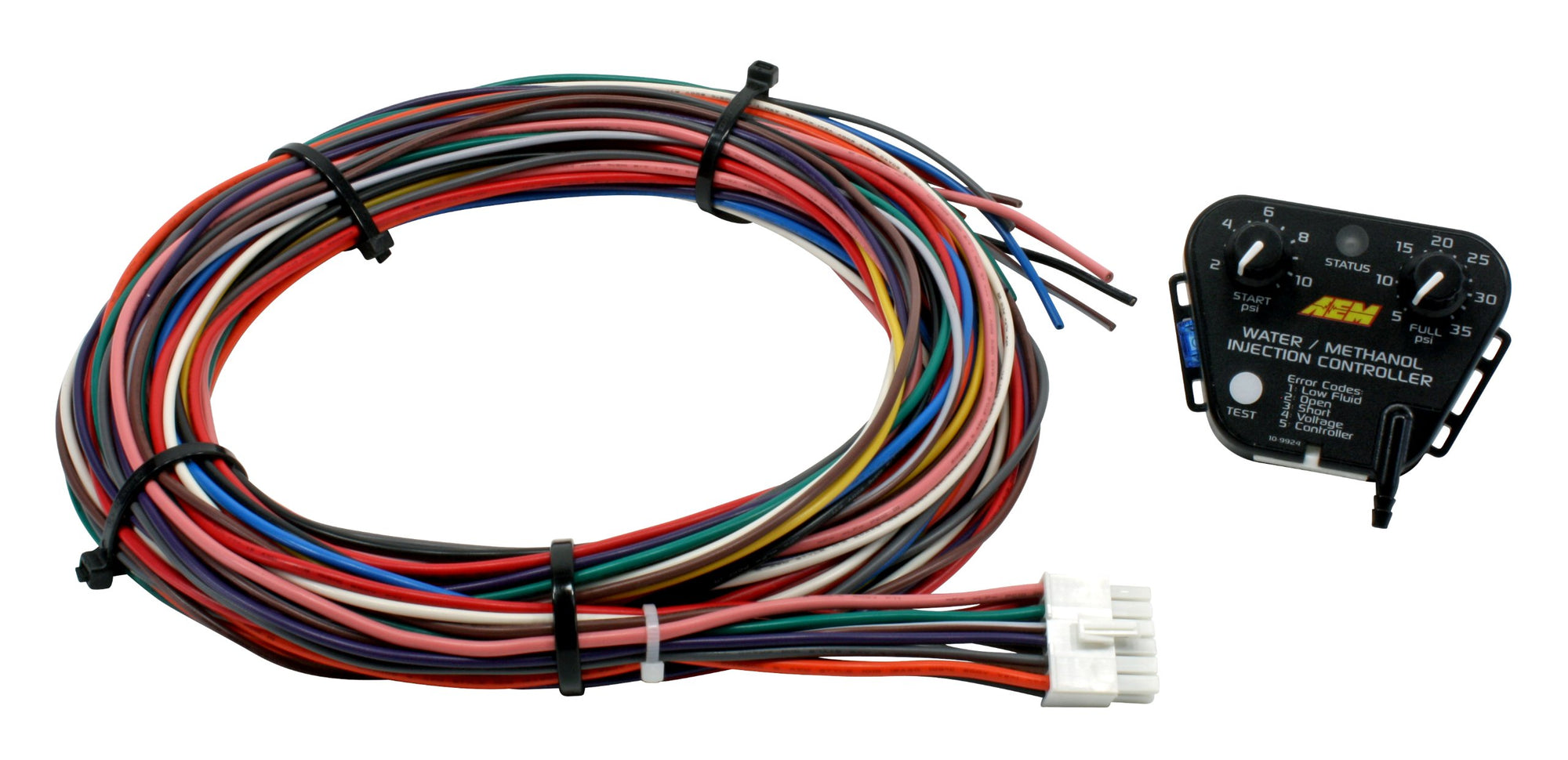

AEM's Boost Dependent Water/Methanol Injection kit's wiring harness is terminated with a positive-lock connector on one end and has color-coded wires to ease installation.
Both the power and ground wires for the pump are included in the harness which simplifies the wiring process and eliminates any chance of the pump accidentally activating from a short in the system.
An additional wire is included for adding an optional on/off solenoid to stop fluid flow when the system is inactive.
