Your instruments are ready, Lord Vader.
The Dakota Digital gauge is compatible with the Chevy Impala SS and Caprice from 1994 to 1996, which make bad-to-the-bone family haulers that can also haul the mail.

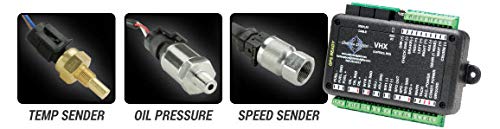

This bolt-in instrument system brings 21st century tech to the bulbous cruiser and includes required sensors.
Hardwiring is required for installation; this is not a plug-in affair, and the stock instrument bezel must be reused.

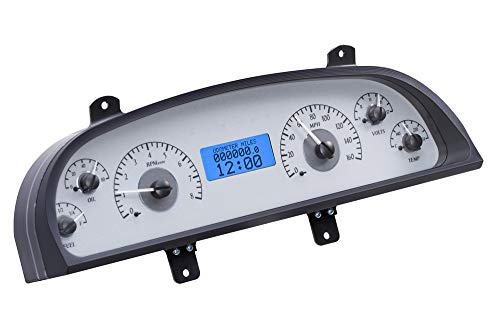

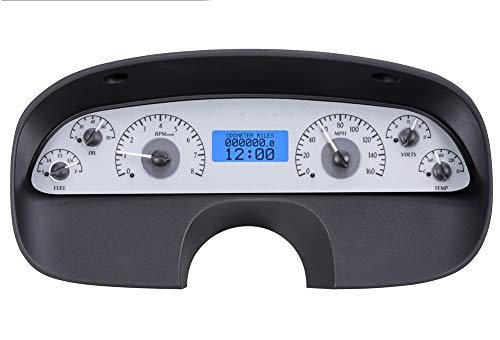

Choose from blue, red, or white LED lighting with Black or Silver Alloy face styling.
Does not fit Buick Roadmaster or Olds Custom Cruiser.
Fully lit needles, backlit faces, and highly visible LCD message centers are a few of the features that set the VHX Series apart from yesterday’s traditional approach to instrumentation.
A few features that you don’t normally see are the micro-controlled precision stepper motors, solid state sensors for unparalleled accuracy, and user-customizable display feedback, all supported by an unrivaled limited lifetime warranty which has become the standard for Dakota Digital instrumentation systems.
Completely engineered and manufactured at our facility in Sioux Falls, South Dakota, the VHX Series has revolutionized the instrumentation industry!
Analog Gauges Speedometer - 00-160 MPH (optional metric version 0-255 km/h) Tachometer - 0-8,000 RPM Oil Pressure - 0-80 PSI Water Temperature - 100-260*F (optional metric version 40-120*C) Fuel Level - E - 1/4, 1/2, 3/4, F Voltmeter - 9-17 VDC Lighting ·Back lit technology is popular with performance instrumentation due to precise lighting allowing you to see what is truly important when you really need it at a quick glance.

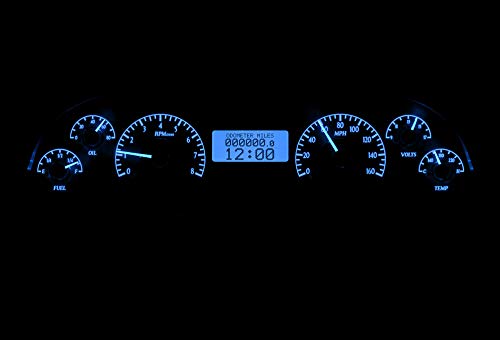

Each number, tick mark, annunciator, needle, indicator, and digital message center is lit by a series of LEDs behind the gauge face.
Digital Message Centers Standard Displays Odometer (One time user settable, Million Mile) Dual (A/B) Trip Meter (0-9,999.9) Clock (12 Hour) Performance Meters 0-60 MPH Timer (0-100 km/h) 1/4 mile time 1/4 mile end speed (trap speed) High speed recall High RPM recall Gauges Speedometer (0-255 MPH/kmh) Tachometer - (0-9,900 RM)- RPM Oil Pressure - (0-100 psi displayed in 1 psi increments) Water Temperature - (100-300*F/40-150*C displayed in 1* F/C increments) Fuel Level - 0-99% Voltmeter - 9-17 VDC Lighting Auto-contrasting LCD display for optimal view in the brightest of sunlight.
LED backlit at night to match/complete the look at night.
Built-In Indicators Indicators Turn Signal (Left/Right) High Beam Check Engine Parking Brake Cruise Control (On / On & Engaged when vehicle is equipped) Gear Position (Optional GSS-3000 sensor required) 4x4 (When vehicle is equipped) NOT ALL OEM INDICATOR LAMP FUNCTIONS WILL BE REPLACED.
If additional indicators are desired within the new instrument system, consider repurposing any unused indicators to suit your application.
