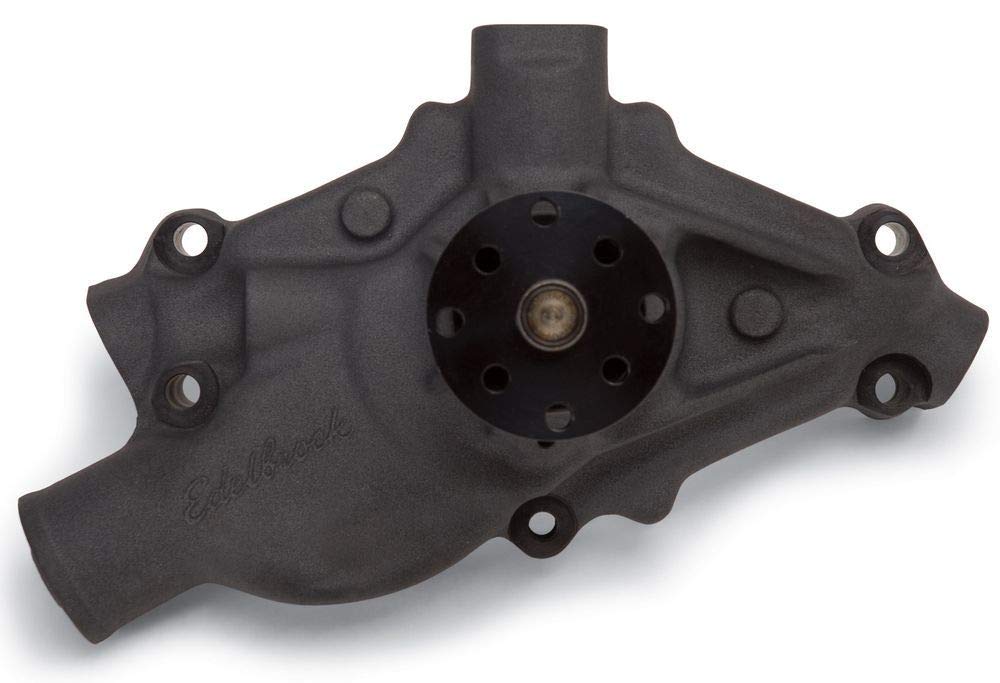

The Edelbrock Circle Track Water Pump from the Victor Series is designed for endurance racing and circle track applications.
Maximum cooling is provided with equal distribution to both sides of the block within 1 percent.
Hot spots, which can cause detonation and pre-ignition, are prevented by this design.
A revised impeller entry, a black anodized finish, and a 0.100 inch thicker rear cover are featured for greater durability.
Custom plumbing systems are eased by auxiliary water outlets, and auxiliary fittings are available as AN or NPT.
This circle track water pump has a heavy-duty 3/4 inch ball/roller bearing and a 3/4 inch pilot shaft.
The -8 AN auxiliary fitting is at 90 degrees to the block.
The dimension from the block surface to the hub is 5-13/16 inch, and the inlet diameter is 1.85 inch.
Other features include heavy-duty ball/roller bearings and a billet hub.
