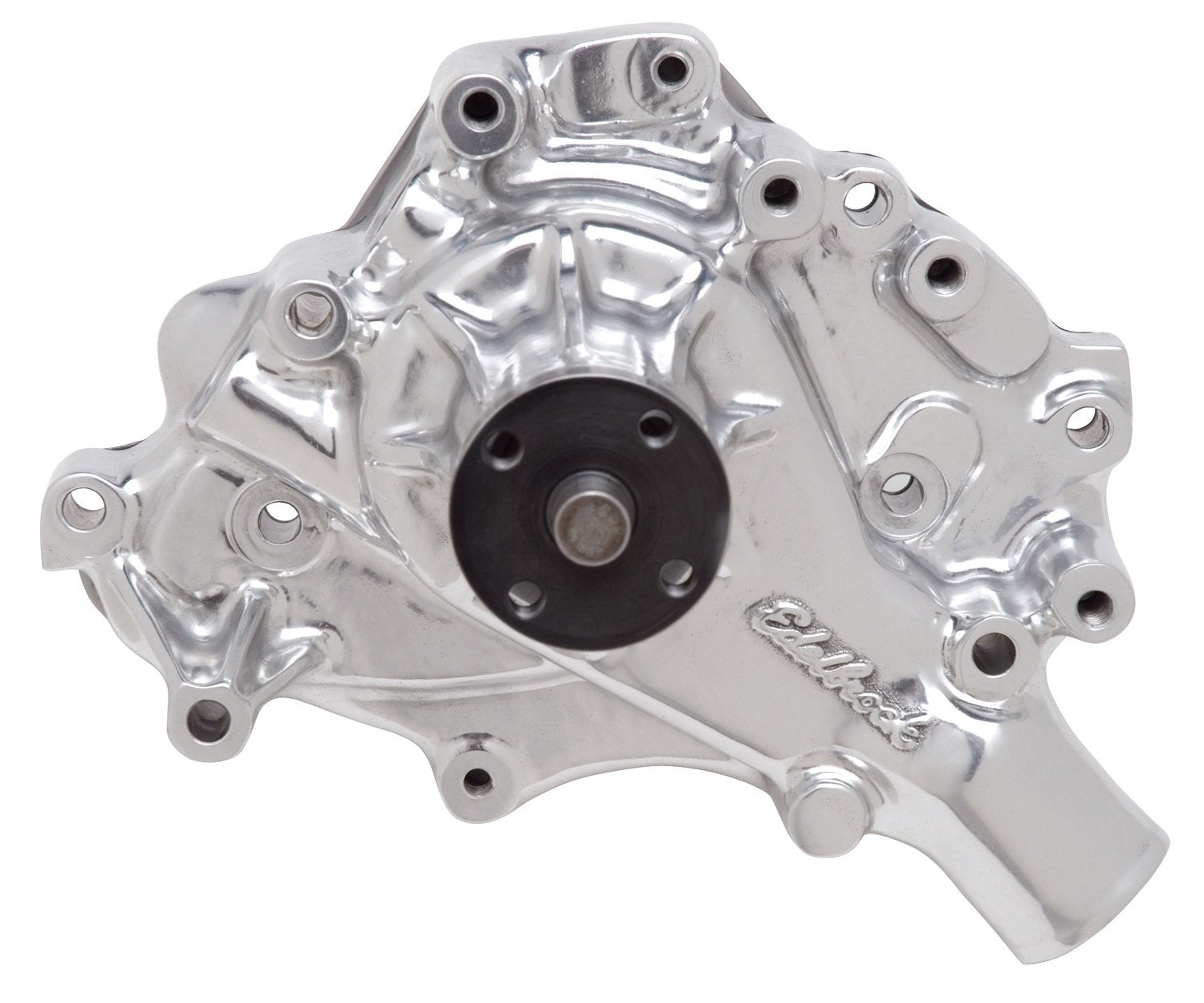

The Edelbrock Polished Victor Series Water Pumps are designed to produce maximum flow, maximum pressure, and equal distribution between both sides of the engine block, within 1 percent.
They are ideal for preventing overheating in street rods, street machines, muscle cars, tow rigs, and RVs.
This water pump has a left hand inlet with no back plate and a 5/8 pilot shaft.
It includes heavy-duty 3/4 ball/roller bearings, aircraft industry clearances, and billet steel hubs.
The dimension from block surface to hub is 5.70, and its inlet diameter is 1.78.
These aluminum pumps have CNC-machined housings with special one-way internal passages that flow more coolant at higher velocities, even at low engine speeds.
The CNC-machined, cast iron impellers are larger than other impellers.
They have curved vanes that produce greater flow with less cavitation.
Other features include leak-proof seals and heavy-duty roller bearing assemblies built to withstand higher torsional loads, along with billet steel hubs.
