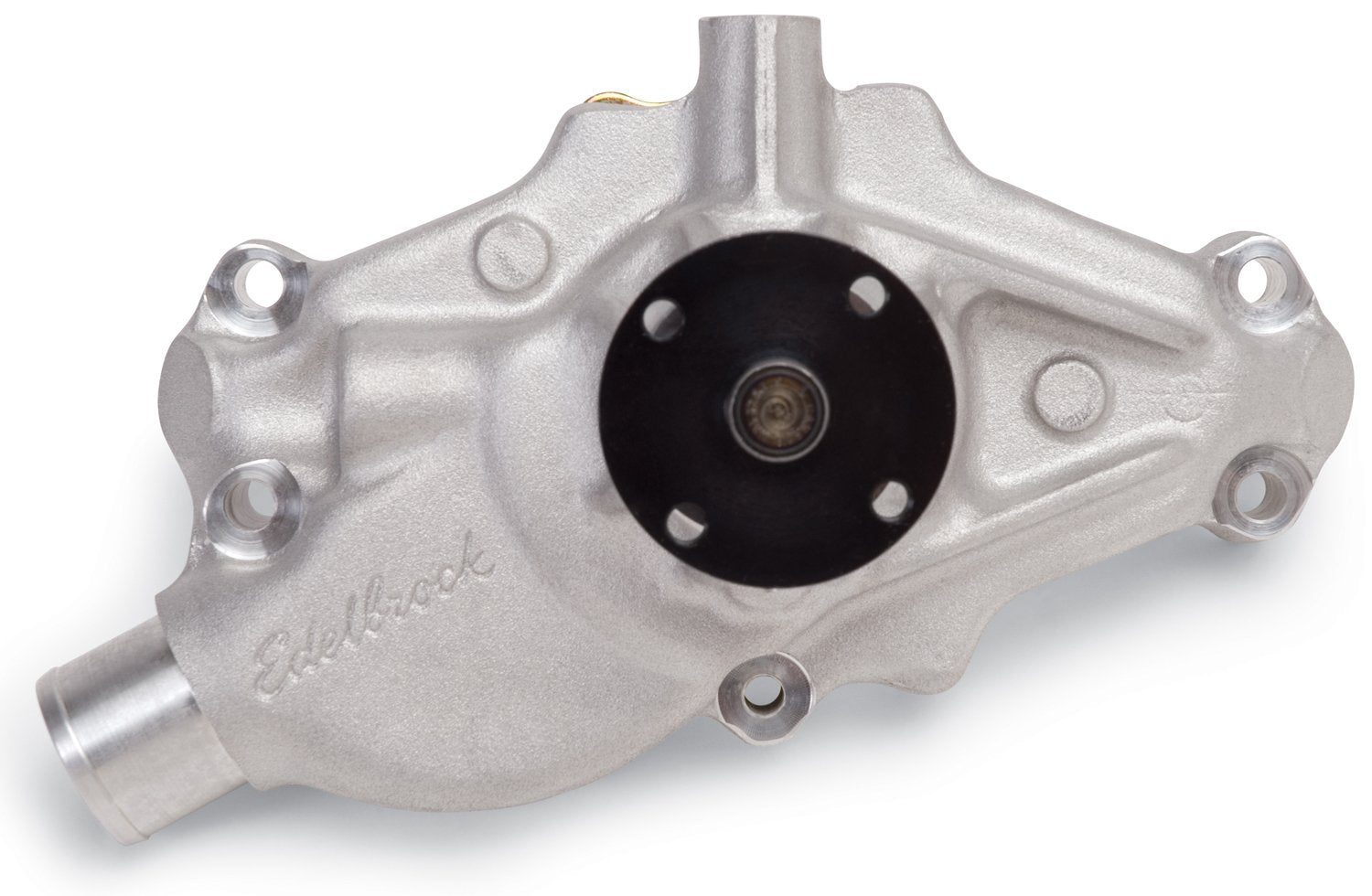

The Victor Series Water Pumps from Edelbrock are designed to produce maximum flow, maximum pressure, and equal distribution between both sides of the engine block, within 1%.
They are ideal for preventing overheating in street rods, street machines, muscle cars, tow rigs, and RVs.
This short style water pump has a 3/4 pilot shaft, reverse rotation, and includes a heavy-duty 3/4 inch ball/roller bearing.
The dimension from the block surface to the hub is 5.80, and its inlet diameter measures 1.54.
These aluminum pumps feature CNC-machined housings with special one-way internal passages that flow more coolant at higher velocities, even at low engine speeds.
The cast iron impellers, which are CNC-machined, are larger than other impellers.
They have curved vanes that produce greater flow with less cavitation.
Other features include heavy-duty roller bearing assemblies built to withstand higher torsional loads, billet steel hubs, and leak-proof seals.
These water pumps will clear composite timing covers on late model GM performance crate engines.
