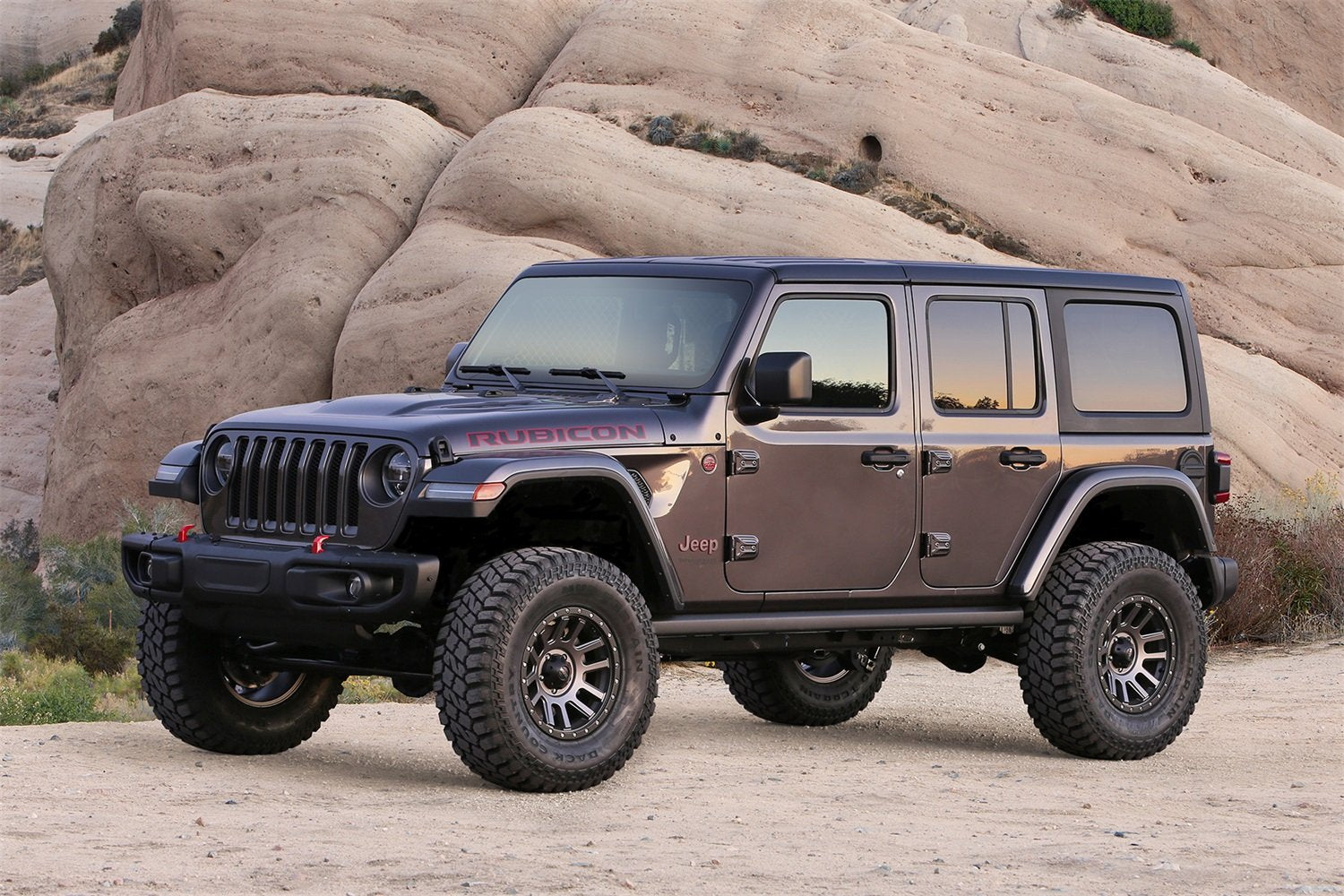

This suspension system Trail provides performance enhanced to address all variants of off highway travel use including rock crawling, aggressive trail use and overland expeditions.
On road, the suspension has been tuned with proper dual rate coil springs and shock valving to provide a very compliant ride that you will appreciate.
The system is a complete short arm suspension that utilizes the factory control arm mounts for an easy installation.
The heavy duty link arms Fabtech are constructed of 1.75in OD.
.250in thick wall steel tubing that are guaranteed never to bend.
They come with large poly urethane bushings on one end with internal threads on the other to accept the ground breaking Fabtech 5 Ton Joint for longevity and a quiet ride.
Fabtech's long travel Dual Rate coil Springs are corner specific to the JL.
This keeps the vehicle level side to side and allows for increased suspension travel.
The first stage of the spring provides a soft ride with the ability to extend for additional travel.
The second stage is designed to handle the payload of the vehicle and address large impact absorption at higher speeds.
To address the steering geometry with the increased ride height, a Draglink Flip System along with a heavy duty Track Bar bracket is included.
This relocates the steering geometry to the factory plane allowing for full articulation without binding the draglink ends in extreme conditions.
The factory angle of the draglink to the pitman arm does not change and there is no increased side load on the steering box sector shaft as compared to using a dropped pitman arm.
This helps extends the life of the steering box with the increased ride height.
The heavy duty rear Track Bar bracket with side support maintains the factory roll center of the vehicle while centering the axle.
Front and rear bumps stop extensions protect the suspension from over cycling.
Each component Fabtech has been designed with specific features and benefits that create this quality.
